148B6755

Part Number: 148B6755
148B6755
Manufacturer
Danfoss
Part number
148B6755
Category

Product Information

Extended Description

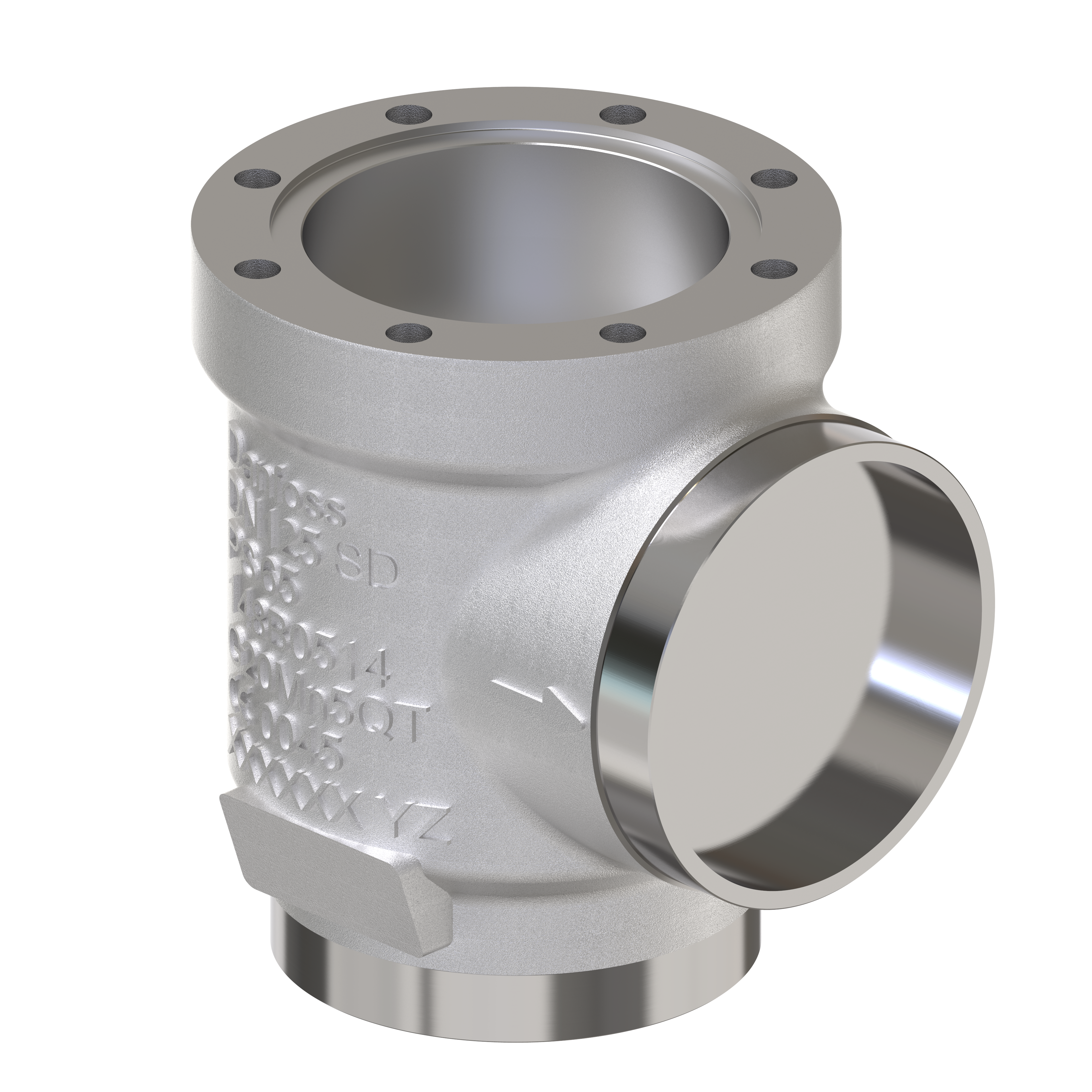

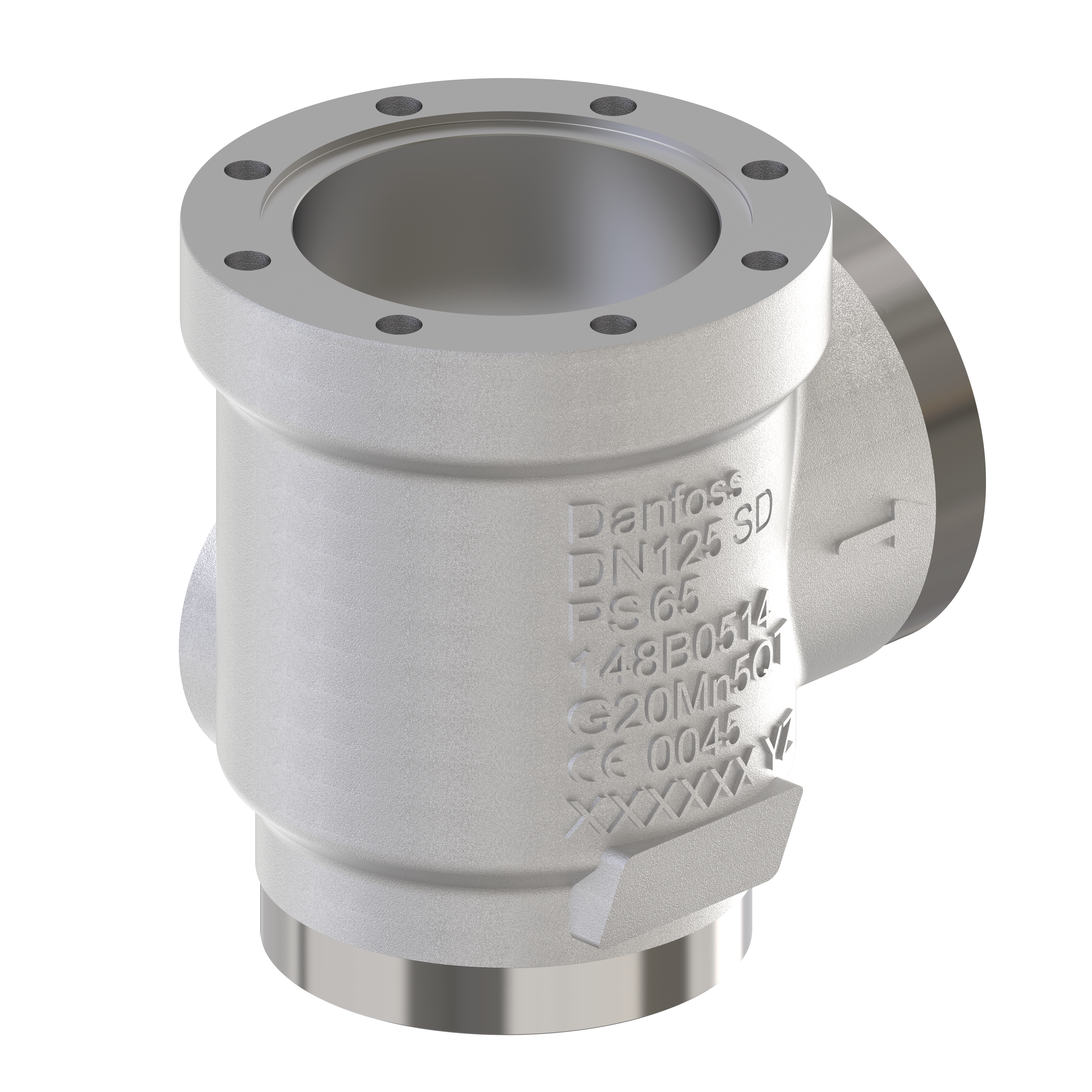

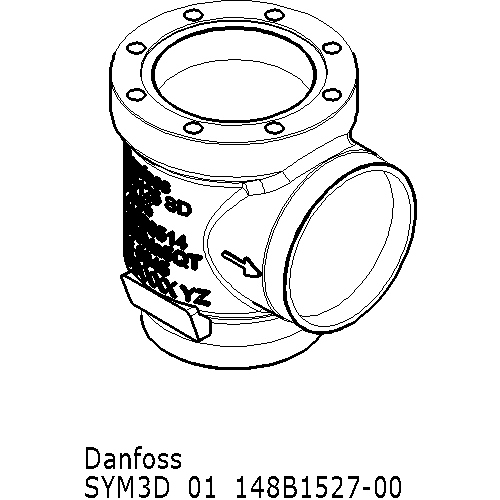

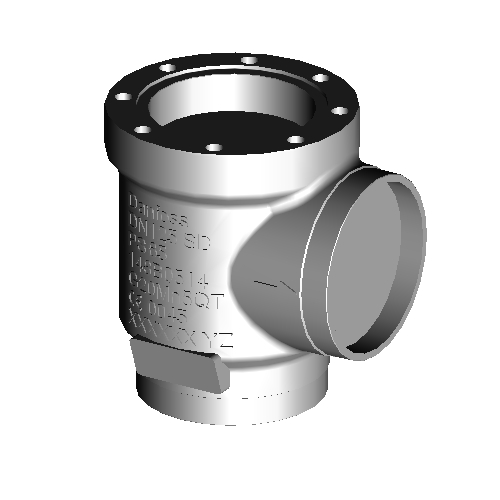

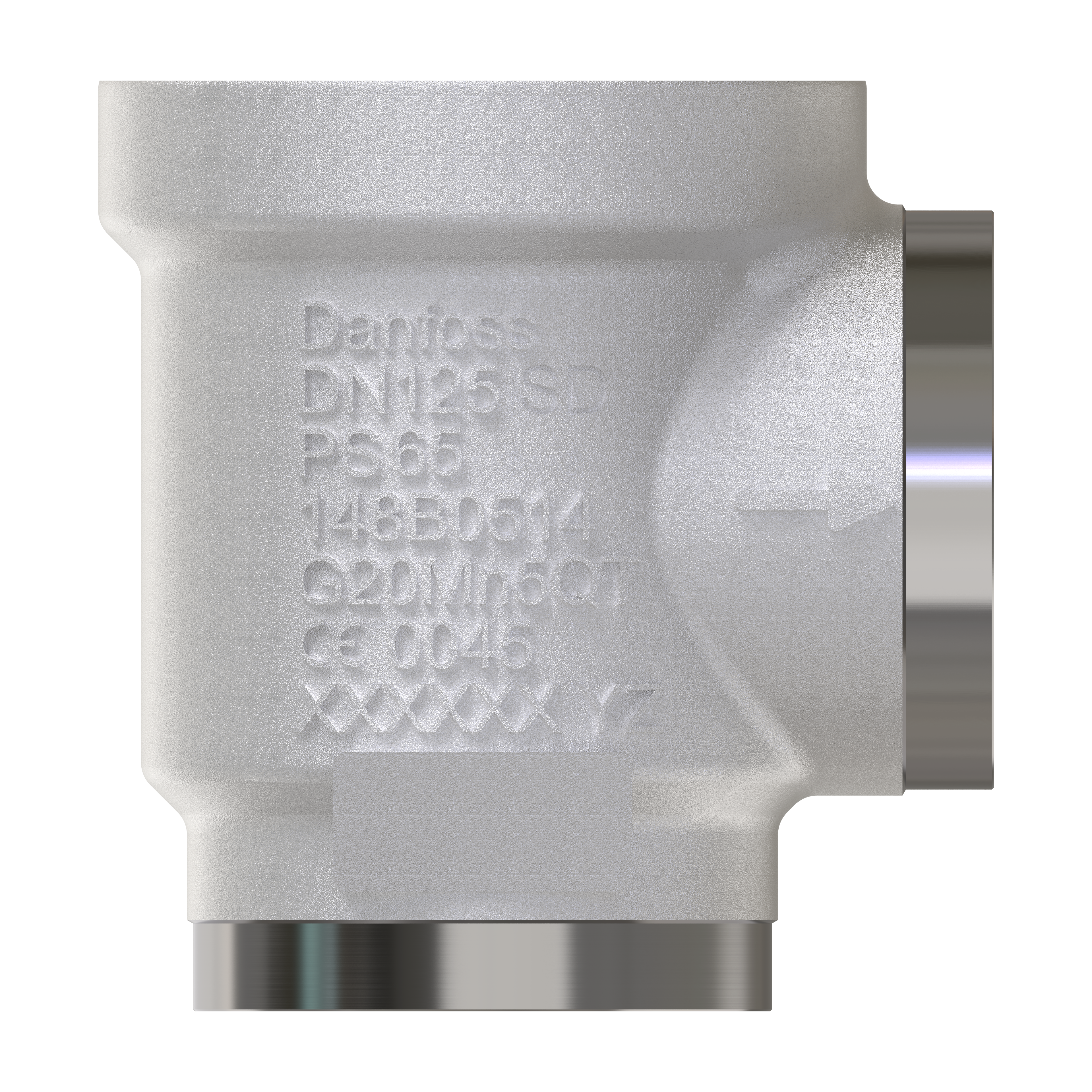

148B6755 Danfoss: Used for product: SVL 125
Gross weight
23.45 Kilogram
Net weight
16.09 Kilogram
Volume
83.456 Liter
EAN
5715162785867
Approval
CE,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
Connection material
Steel
Connection standard
EN 1254-5
Contain batteries
No
Direction
Angleway
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
5 in
Inlet connection size [mm]
125 mm
Inlet connection type
Solder
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Outlet connection size [in]
5 in
Outlet connection size [mm]
125 mm
Outlet connection type
Solder
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
Art. 3, par. 3
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R113,R114,R1150,R1233zd(E),R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R170,R22,R227ea,R23,R236fa,R245fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R503,R507A,R508B,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744,RE170
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-76 °F
Type
SVL 125
Used for product
SVL 125
Shut-off valve, type SVA-S and SVA-L SVL Housings Brazed Versions Multifunction valves and safety devices Multifunction valve body, SVL 125 Housing SVL 125 SD ANG PS65 Valve house angle SVA 125 SD ANG Valve house angle SVA 125 SD ANG Valve house angle SVA 125 SD ANG Multifunction valve body, SVL 125 Housing SVL 125 SD ANG PS65 Multifunction valve body, SVL 125 Housing SVL 125 SD ANG PS65
