148B6813
Part Number: 148B6813
Product Information
Extended Description

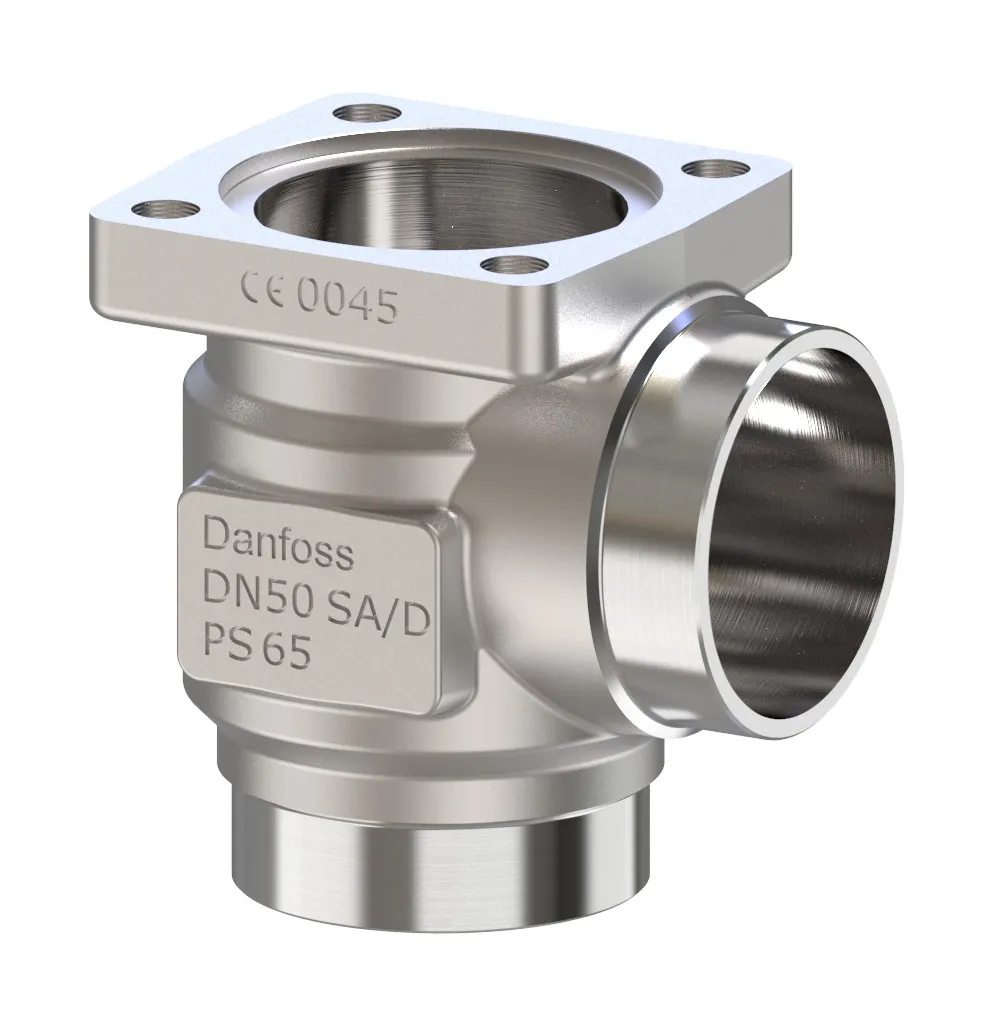

148B6813 Danfoss: Used for product: SVL 50
Gross weight
4.398 Kilogram
Net weight
4.352 Kilogram
Volume
6.036 Liter
EAN
5702424547127
Approval
CE,LLC CDC EURO-TYSK,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection standard
ASME B16.22/EN 1254-5
Contain batteries
No
Cv value [gal/min]
52.2 gal/min
Direction
Angleway
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [mm]
54 mm
Inlet connection type
Solder
Kv value [m³/h]
45 m³/h
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Outlet connection size [mm]
54 mm
Outlet connection type
Solder
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
II
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R152a,R22,R227ea,R236fa,R245fa,R290,R32,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R407H,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-76 °F
Type
SVL 50
UK RoHS compliance
Out of scope
Used for product
SVL 50
