148B6814
Part Number: 148B6814
Product Information
Extended Description

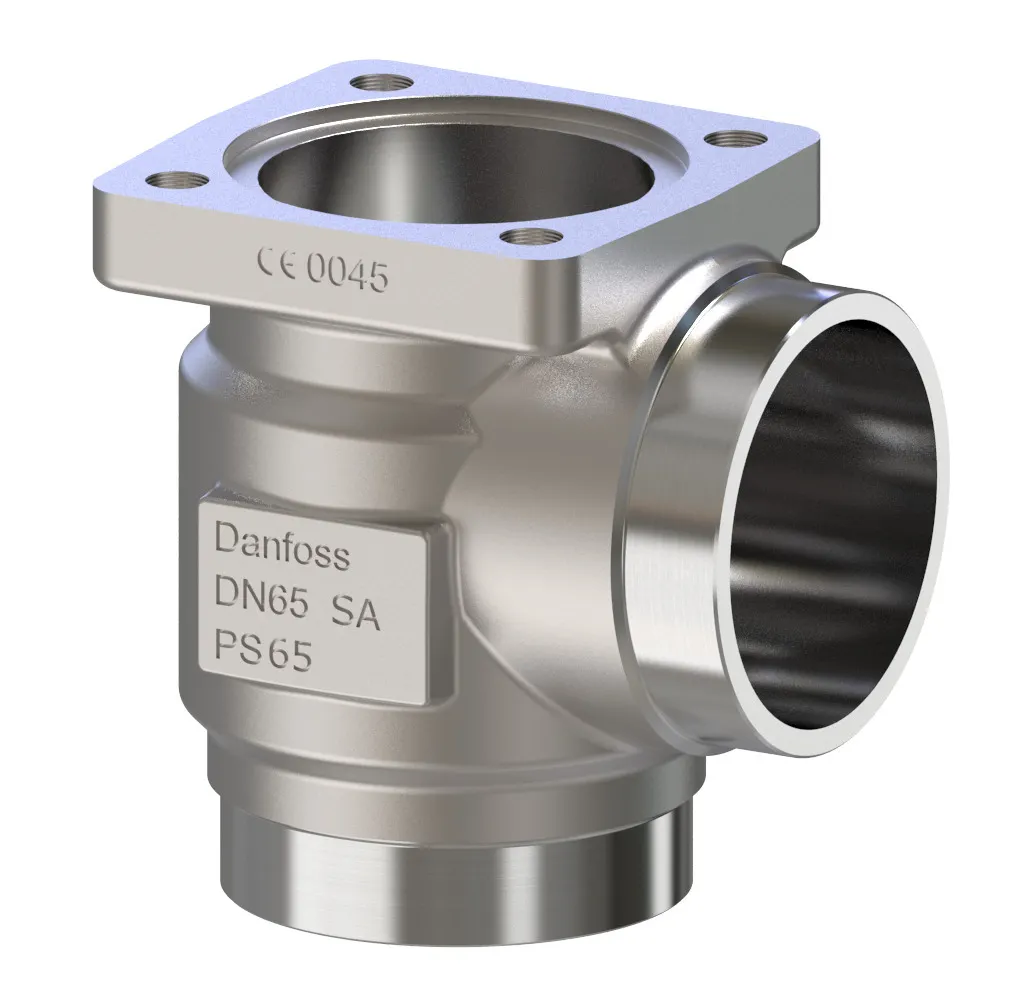

148B6814 Danfoss: Used for product: SVL 65
Gross weight
6.884 Kilogram
Net weight
6.042 Kilogram
Volume
7.259 Liter
EAN
5702424547134
Approval
CE,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection standard
ASME B16.22
Contain batteries
No
Cv value [gal/min]
83.52 gal/min
Direction
Angleway
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
2 5/8 in
Inlet connection type
Solder
Kv value [m³/h]
72 m³/h
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Outlet connection size [in]
2 5/8 in
Outlet connection type
Solder
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
II
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R152a,R22,R227ea,R236fa,R245fa,R290,R32,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R407H,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-76 °F
Type
SVL 65
UK RoHS compliance
Out of scope
Used for product
SVL 65
