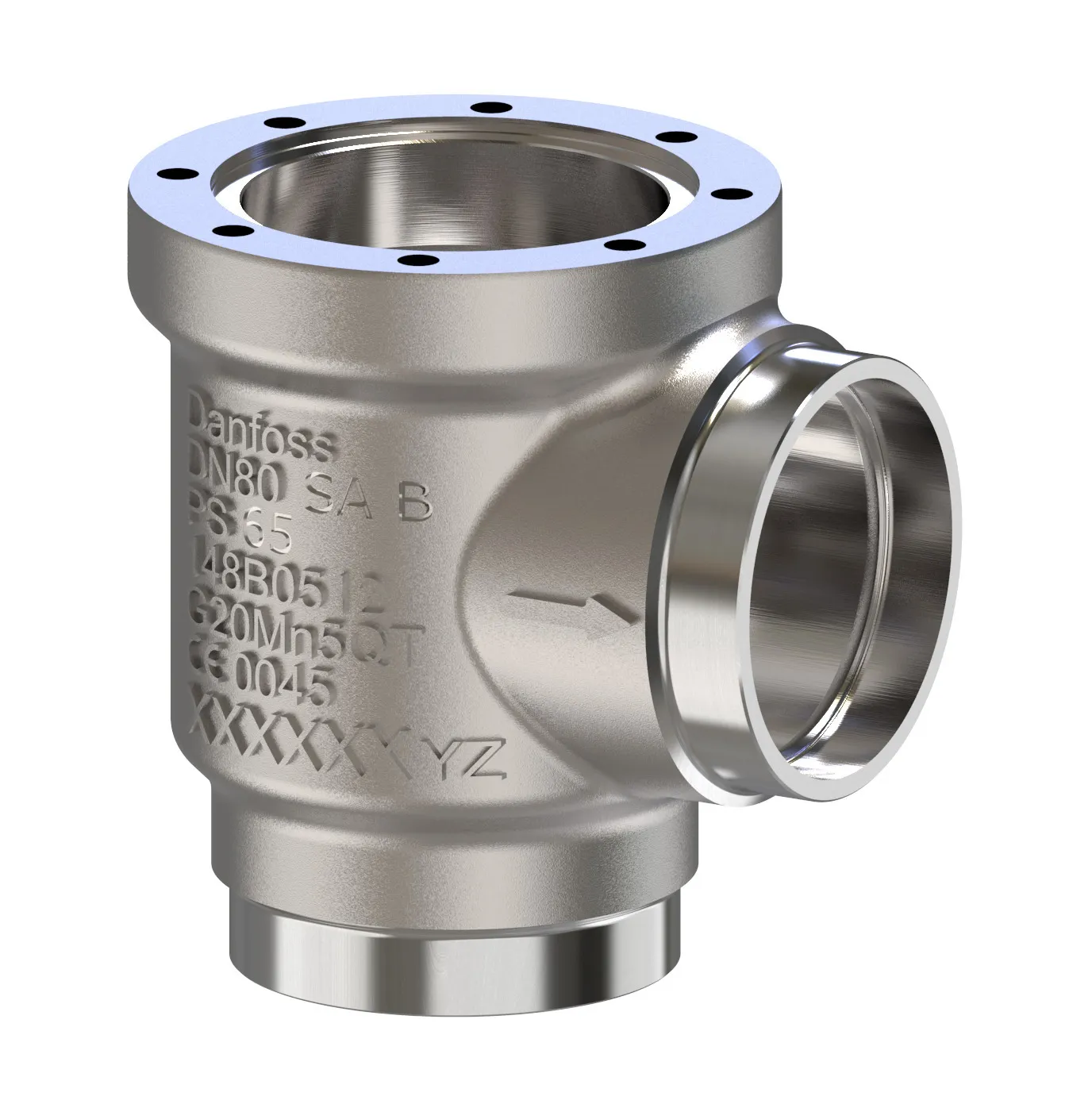

148B6815
Part Number: 148B6815
Product Information
Extended Description
148B6815 Danfoss: Used for product: SVL 80
Gross weight
13.269 Kilogram
Net weight
11.798 Kilogram
Volume
30.413 Liter
EAN
5702424547141
Approval
CE,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection standard
ASME B16.22
Contain batteries
No
Cv value [gal/min]
119.48 gal/min
Direction
Angleway
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
3 1/8 in
Inlet connection type
Solder
Kv value [m³/h]
103 m³/h
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Outlet connection size [in]
3 1/8 in
Outlet connection type
Solder
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
II
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R152a,R22,R227ea,R236fa,R245fa,R290,R32,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R407H,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R507A,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-76 °F
Type
SVL 80
UK RoHS compliance
Out of scope
Used for product
SVL 80
