148B6861

Part Number: 148B6861
148B6861
Manufacturer
Danfoss
Part number
148B6861
Category

Product Information

Extended Description

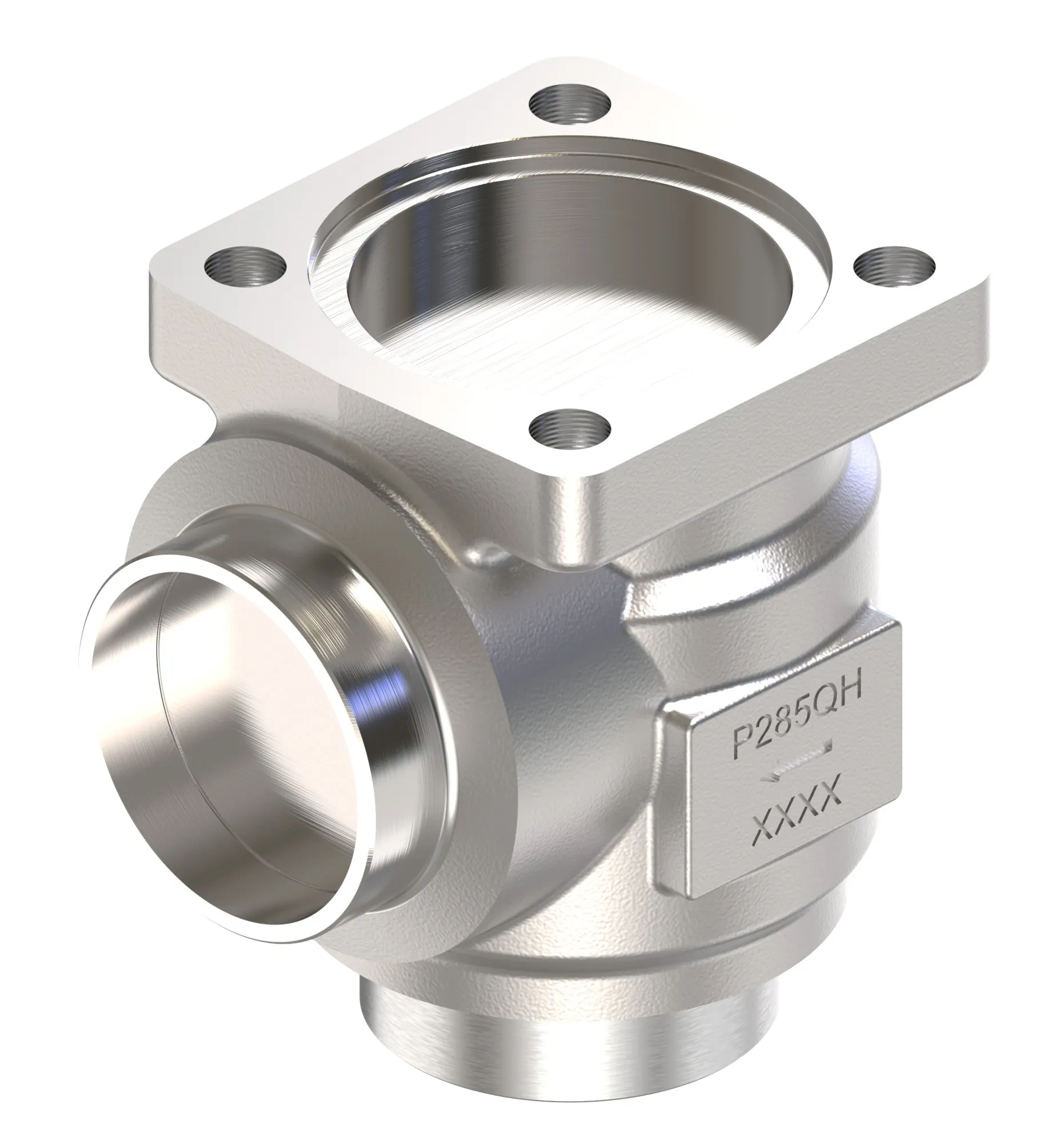

148B6861 Danfoss: Parts Program name: FIA-140B; ICMTS; SVA-140B, Connection standard: EN 1254-5; ASME B16.50, Inlet connection type: Brazed, Outlet connection type: Brazed, Inlet connection size [mm]: 54.00, Outlet connection size [mm]: 54.0
Gross weight
3.15 Kilogram
Net weight
2.7 Kilogram
Volume
6 Liter
EAN
5715162515952
Approval
CE,UKCA,C UL US LISTED
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
Connection material
Steel
Connection standard
ASME B16.50,EN 1254-5
Contain batteries
No
Direction
Angleway
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection size [in]
2 1/8 in
Inlet connection size [mm]
54 mm
Inlet connection type
Brazed
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
Outlet connection size [in]
2 1/8 in
Outlet connection size [mm]
54 mm
Outlet connection type
Brazed
Packing format
Single pack
Parts Program name
ICMTS,FIA-140B,SVA-140B
PED category
I
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-40 °F
Type
SVL-140B 50
UL evaluated
Yes
Used for product
ICMTS 50,FIA-140B 50-65,SVA-140B 50-65
ICMTS 50 & 80 brochure Check valve, type CHV-140B 140 bar (2030 psi) series Motor operated valve, type ICMTS with actuator, type ICAD 600B-TS Shut-off valve SVA-140B 140 bar (2030 psi) series Strainer FIA-140B 140 bar (2030 psi) series Motor operated valve, Type ICMTS 50/80 with actuator, type ICAD 600A-TS Shut-off valves, type SVA-140B DN 50-150 Multifunction valves and safety devices Multifunction valves, Multifunction valve body, SVL-140B 50, WEB148B6861 Multifunction valves, Multifunction valve body, SVL-140B 50, WEB148B6861 Multifunction valves, Multifunction valve body, SVL-140B 50, WEB148B6861 Multifunction valves, Multifunction valve body, SVL-140B 50, WEB148B6861 SVL-140B 50 SA/SD ANG SVL-140B 50 SA/SD ANG
