148B6866
Part Number: 148B6866
Product Information
Extended Description
148B6866 Danfoss: Parts Program name: CHV-140B, Connection standard: ANSIB36.10 SCH80; EN10216-2, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet connection size [in]: 3/4 in, Outlet connection size [in]: 3/4 in
Gross weight
1.4 Kilogram
Net weight
1.25 Kilogram
Volume
2.612 Liter
EAN
5715162794418
Body material
Steel
Brand
SVL Flexline
Connection material
Steel
Connection standard
ANSIB36.10 SCH80,EN10216-2
Contain batteries
No
Direction
Straightway
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection size [in]
3/4 in
Inlet connection type
Butt weld
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
Outlet connection size [in]
3/4 in
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
CHV-140B
PED category
Art. 4, par. 3
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-40 °F
Type
SVL-140B 20
Used for product
SVL-140B 20
Industrial refrigeration - Spare parts and accessories
Check valve, type CHV-140B 140 bar (2030 psi) series
Check valve, type CHV-140B 15-100
Multifunction valves and safety devices
Danfoss MD 033F0686.AS
SVL-140B Valve Housing 15/20/25/32/40 A/D STR

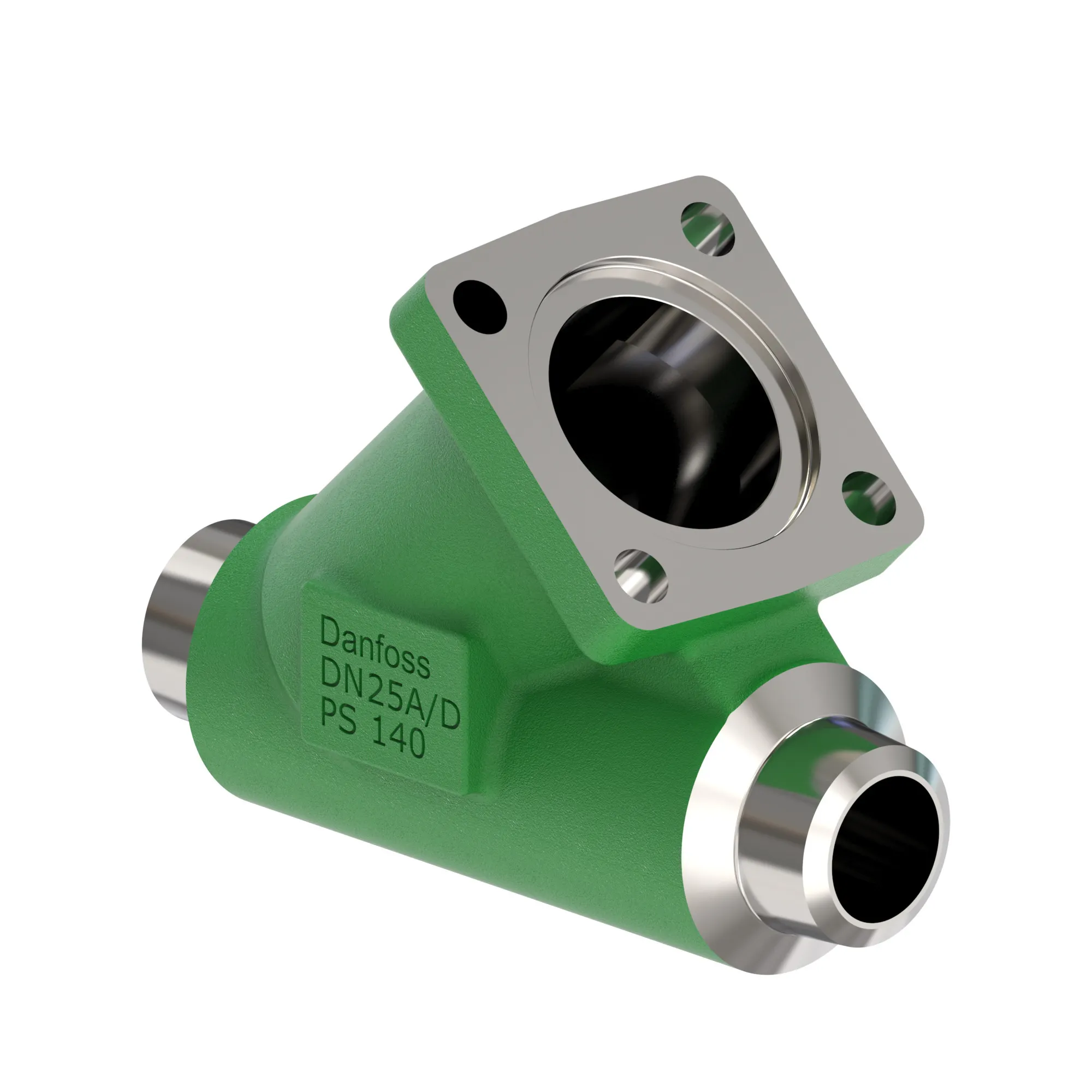

WEB148B6866

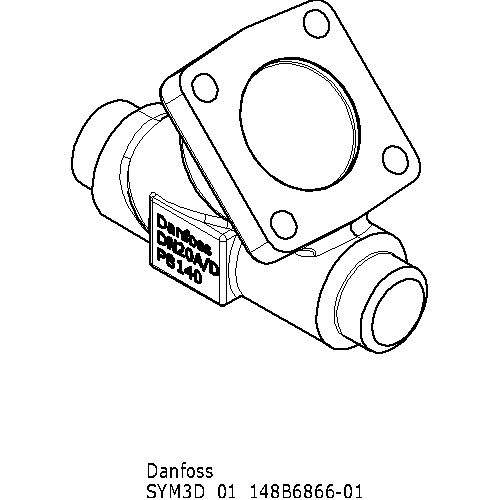

SYM3D_01_148B6866

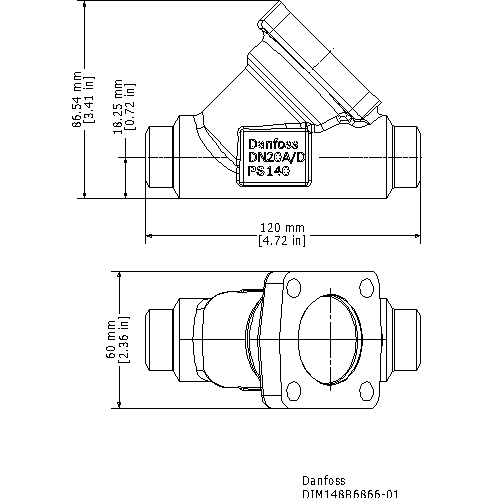

DIM148B6866

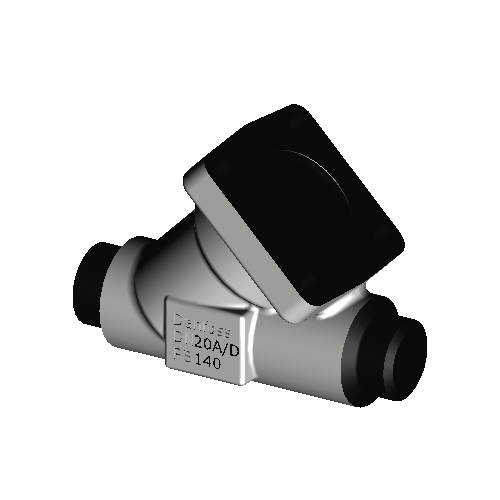

SVL-140B Valve Housing 15/20/25/32/40 A/D STR
SVL-140B Valve Housing 15/20/25/32/40 A/D STR
SVL-140B Valve Housing 15/20/25/32/40 A/D STR
