148B6921

Part Number: 148B6921
148B6921
Manufacturer
Danfoss
Part number
148B6921
Category

Product Information

Extended Description

148B6921 Danfoss: Parts Program name: FIA-140B; SVA-140B, Connection standard: EN 10216-2, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet connection size [mm]: 125.00, Outlet connection size [mm]: 125.0
Gross weight
40.95 Kilogram
Net weight
33.05 Kilogram
Volume
89.01 Liter
EAN
5715162511961
Approval
CE,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
Connection material
Steel
Connection standard
EN 10216-2
Contain batteries
No
Direction
Straightway
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection size [mm]
125 mm
Inlet connection type
Butt weld
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
Outlet connection size [mm]
125 mm
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
FIA-140B,SVA-140B
PED category
II
Product accessories
SVL Flexline accessories
Product description

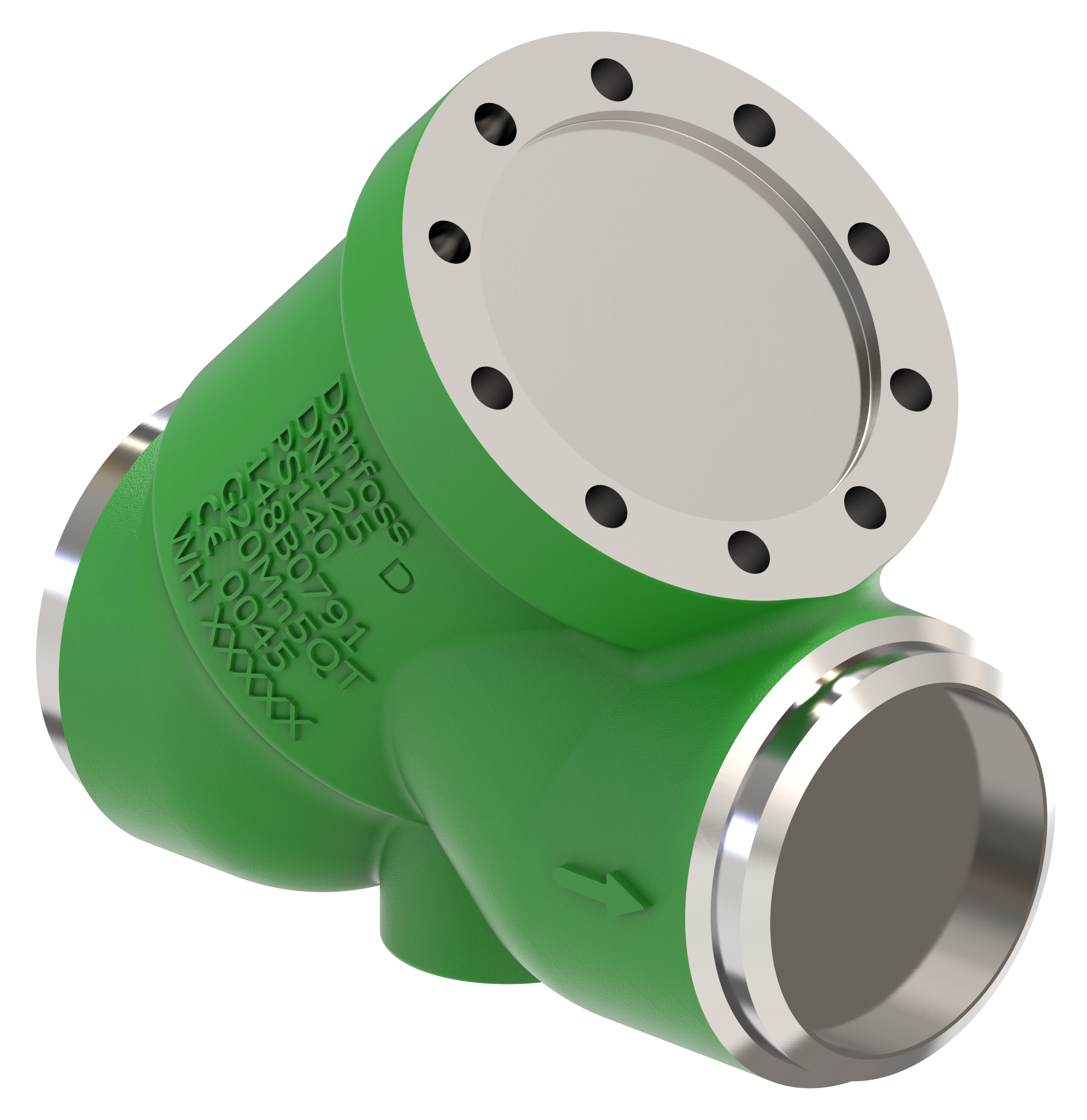

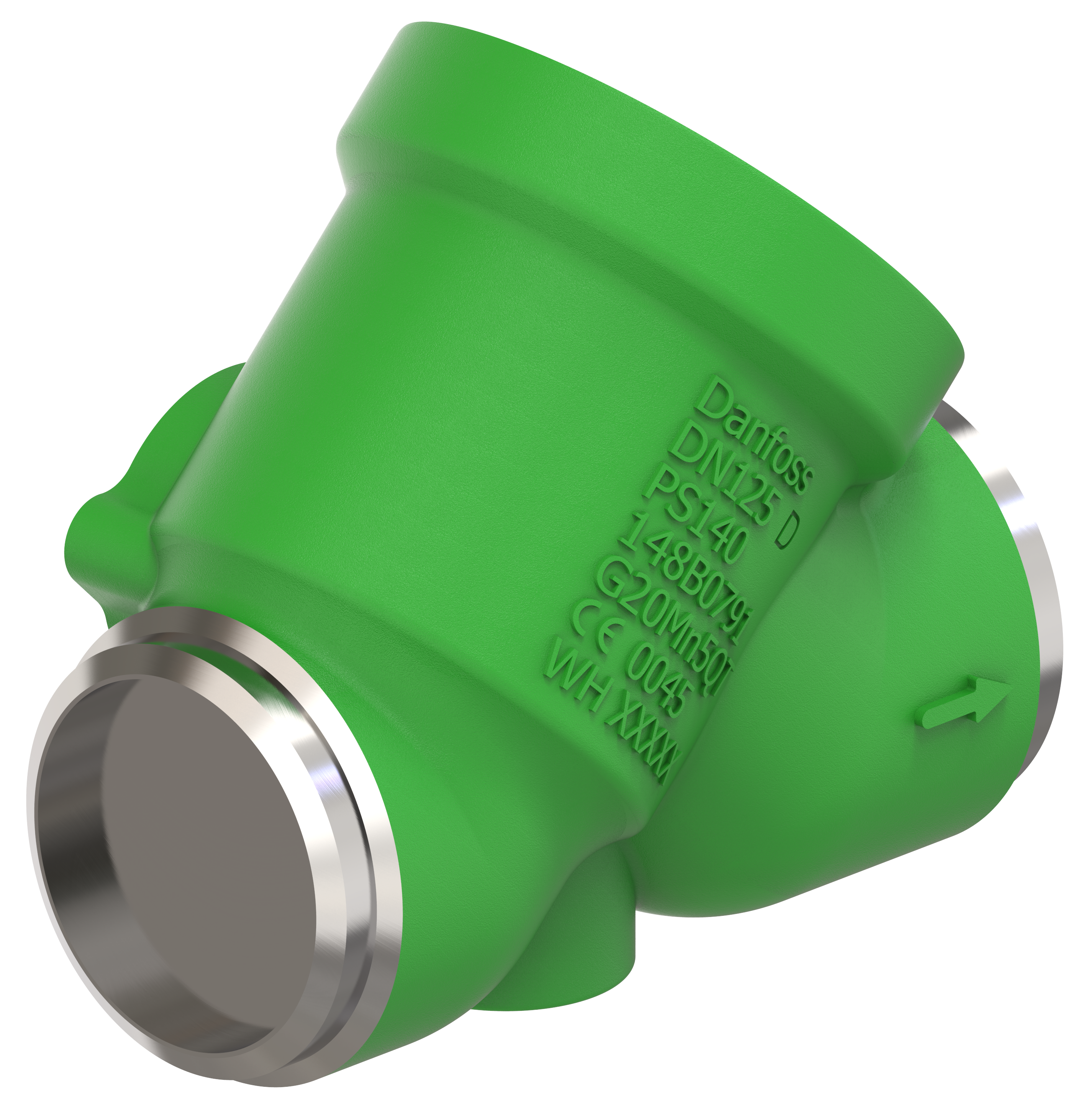

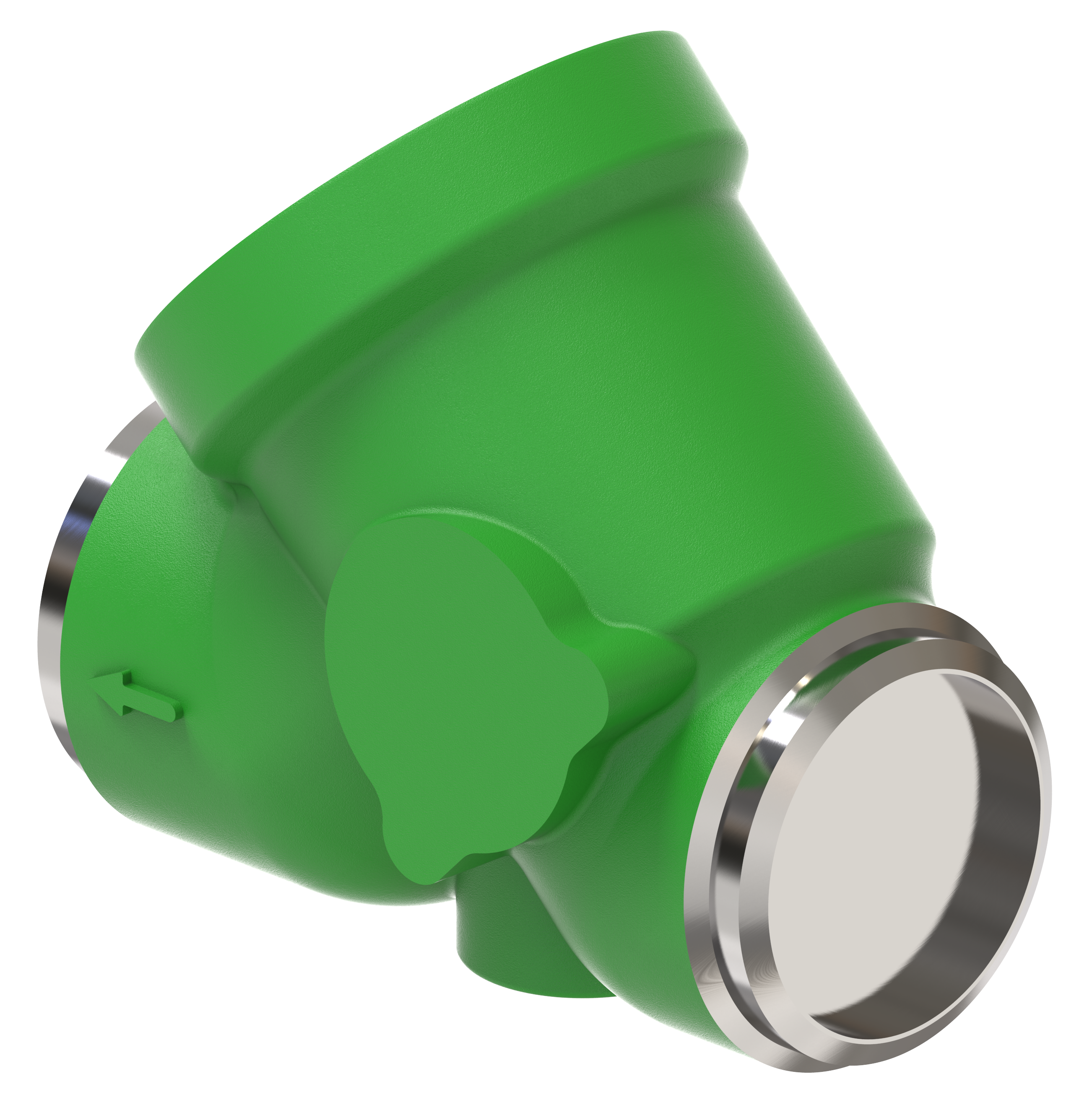

Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-40 °F
Type
SVL-140B 125
Used for product
SVL-140B 125
Check valve, type CHV-140B 140 bar (2030 psi) series Shut-off valve SVA-140B 140 bar (2030 psi) series Strainer FIA-140B 140 bar (2030 psi) series Shut-off valves, type SVA-140B DN 50-150 Multifunction valves and safety devices SVL-140B Valve Housing 125 D STR , 148B6921 SVL-140B Valve Housing 125 D STR , 148B6921 SVL-140B Valve Housing 125 D STR , 148B6921 SVL-140B Valve Housing 125 D STR , 148B6921 SVL-140B Valve Housing 125 D STR SVL-140B Valve Housing 125 D STR SVL-140B Valve Housing 125 D STR
