148B6924

Part Number: 148B6924
148B6924
Manufacturer
Danfoss
Part number
148B6924
Category

Product Information

Extended Description

148B6924 Danfoss: Parts Program name: FIA-140B; SVA-140B, Connection standard: EN 10216-2; ANSI B 36.10 SCH 80, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Inlet connection size [mm]: 150.00, Outlet connection size [mm]: 150.0
Gross weight
44.1 Kilogram
Net weight
36 Kilogram
Volume
89.01 Liter
EAN
5715162511992
Approval
CE,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
Connection material
Steel
Connection standard
ANSI B 36.10 SCH 80,EN 10216-2
Contain batteries
No
Direction
Angleway
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection size [in]
6 in
Inlet connection size [mm]
150 mm
Inlet connection type
Butt weld
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
Outlet connection size [in]
6 in
Outlet connection size [mm]
150 mm
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
FIA-140B,SVA-140B
PED category
II
Product accessories
SVL Flexline accessories

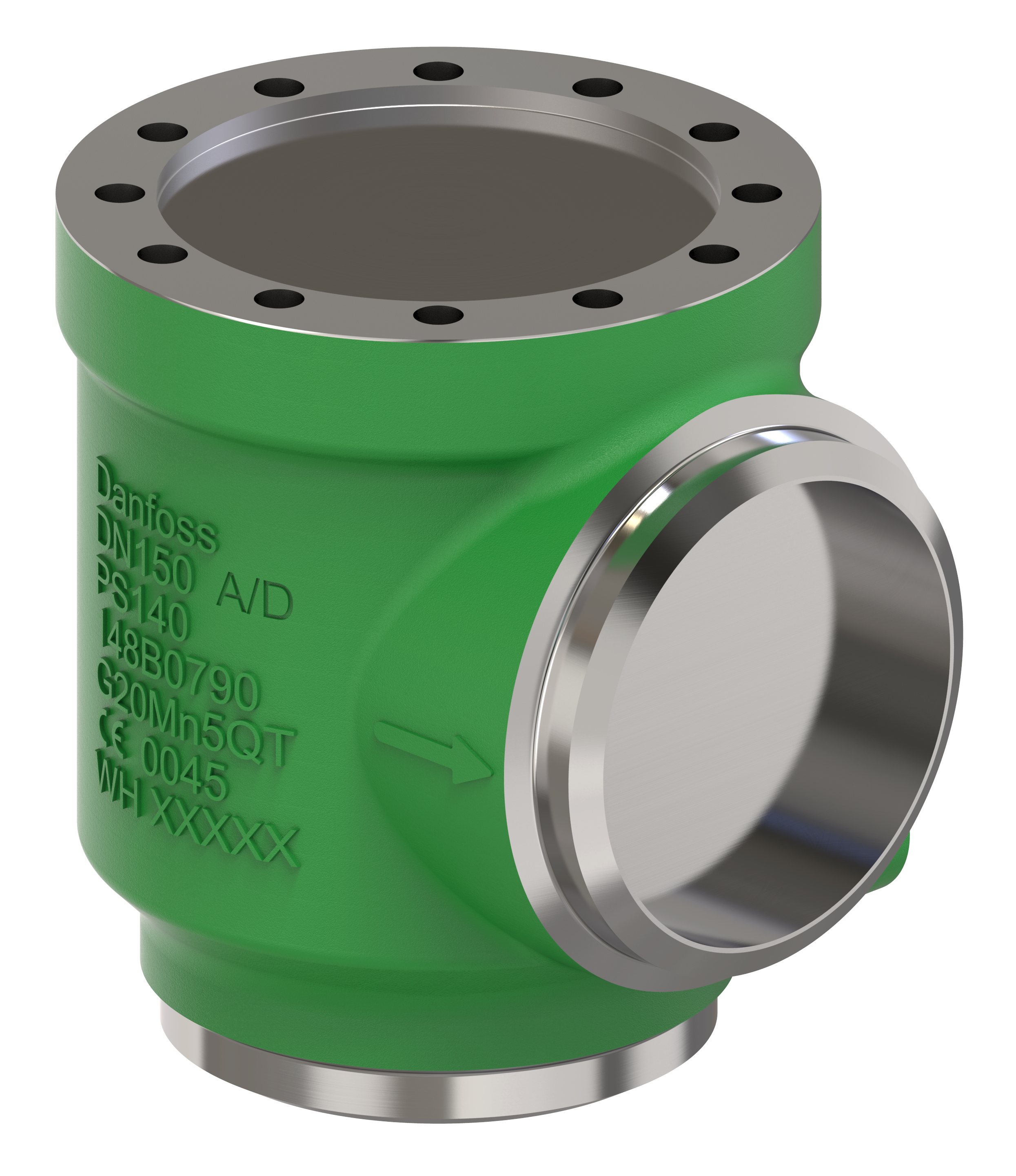

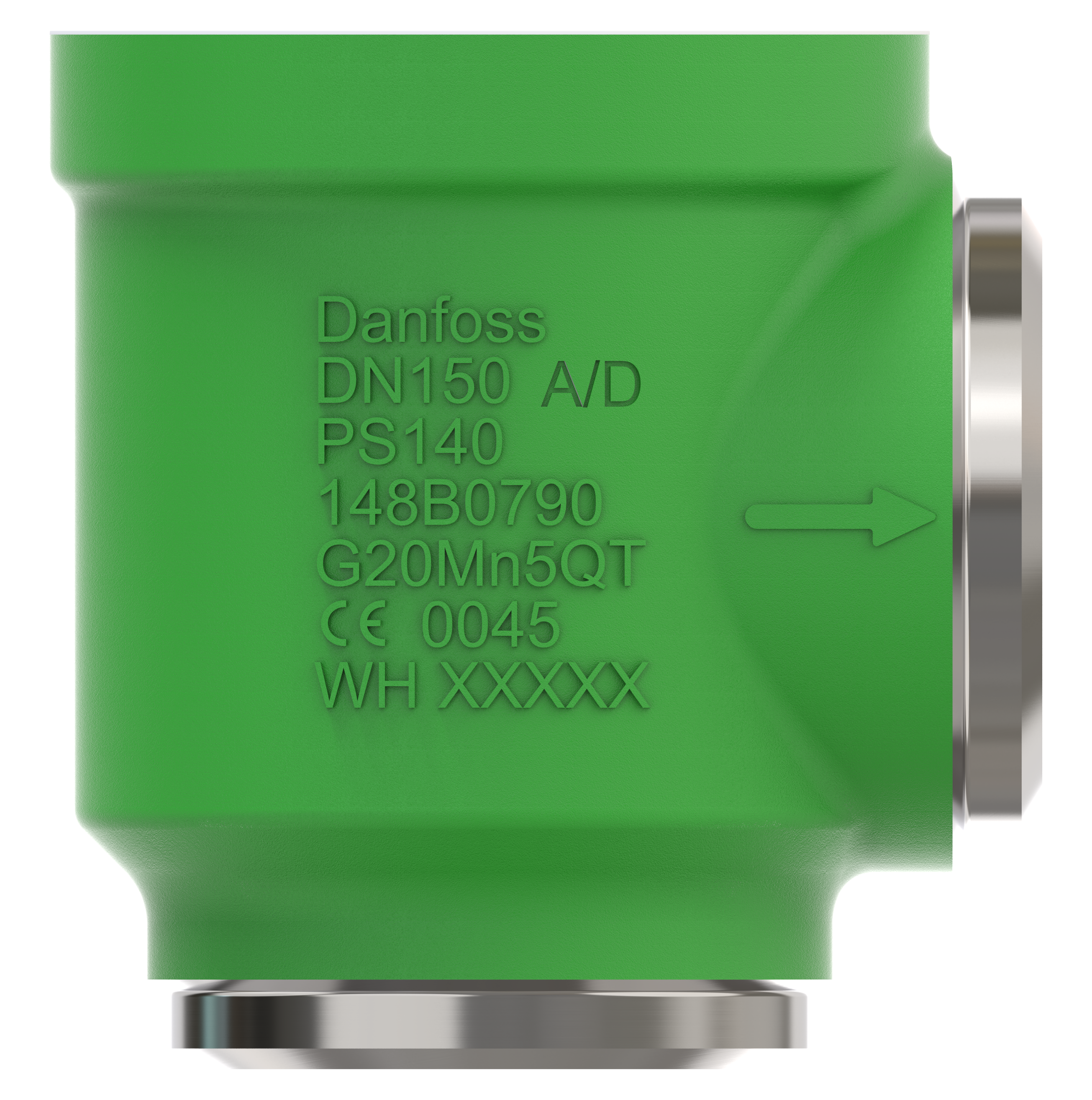

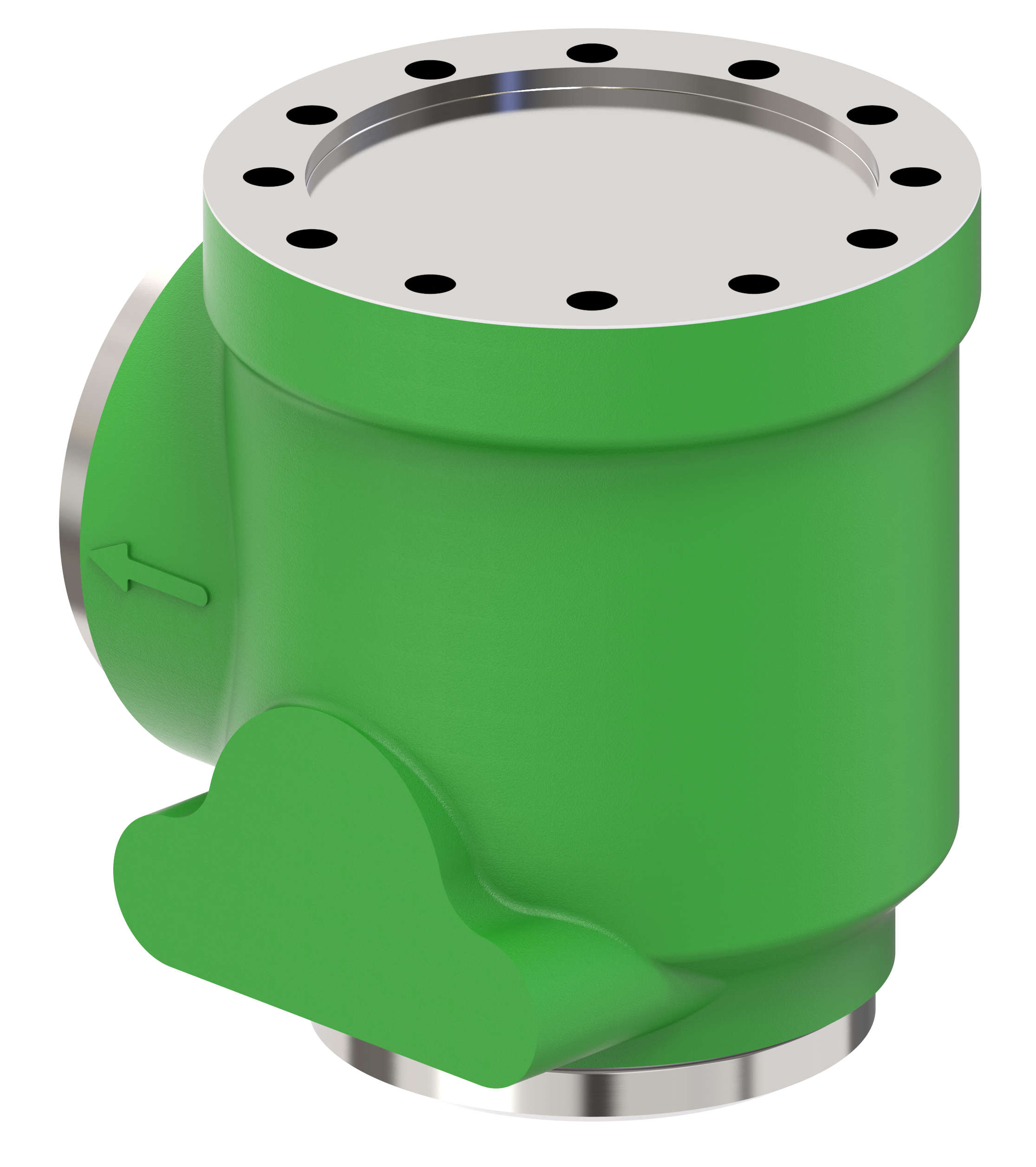

Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-40 °F
Type
SVL-140B 150
Used for product
SVL-140B 150
Check valve, type CHV-140B 140 bar (2030 psi) series Shut-off valve SVA-140B 140 bar (2030 psi) series Strainer FIA-140B 140 bar (2030 psi) series Shut-off valves, type SVA-140B DN 50-150 Multifunction valves and safety devices SVL-140B Valve Housing 150 A/D ANG, 148B6924 SVL-140B Valve Housing 150 A/D ANG, 148B6924 SVL-140B Valve Housing 150 A/D ANG, 148B6924 SVL-140B Valve Housing 150 A/D ANG, 148B6924 SVL-140B Valve Housing 150 A/D ANG SVL-140B Valve Housing 150 A/D ANG SVL-140B Valve Housing 150 A/D ANG
