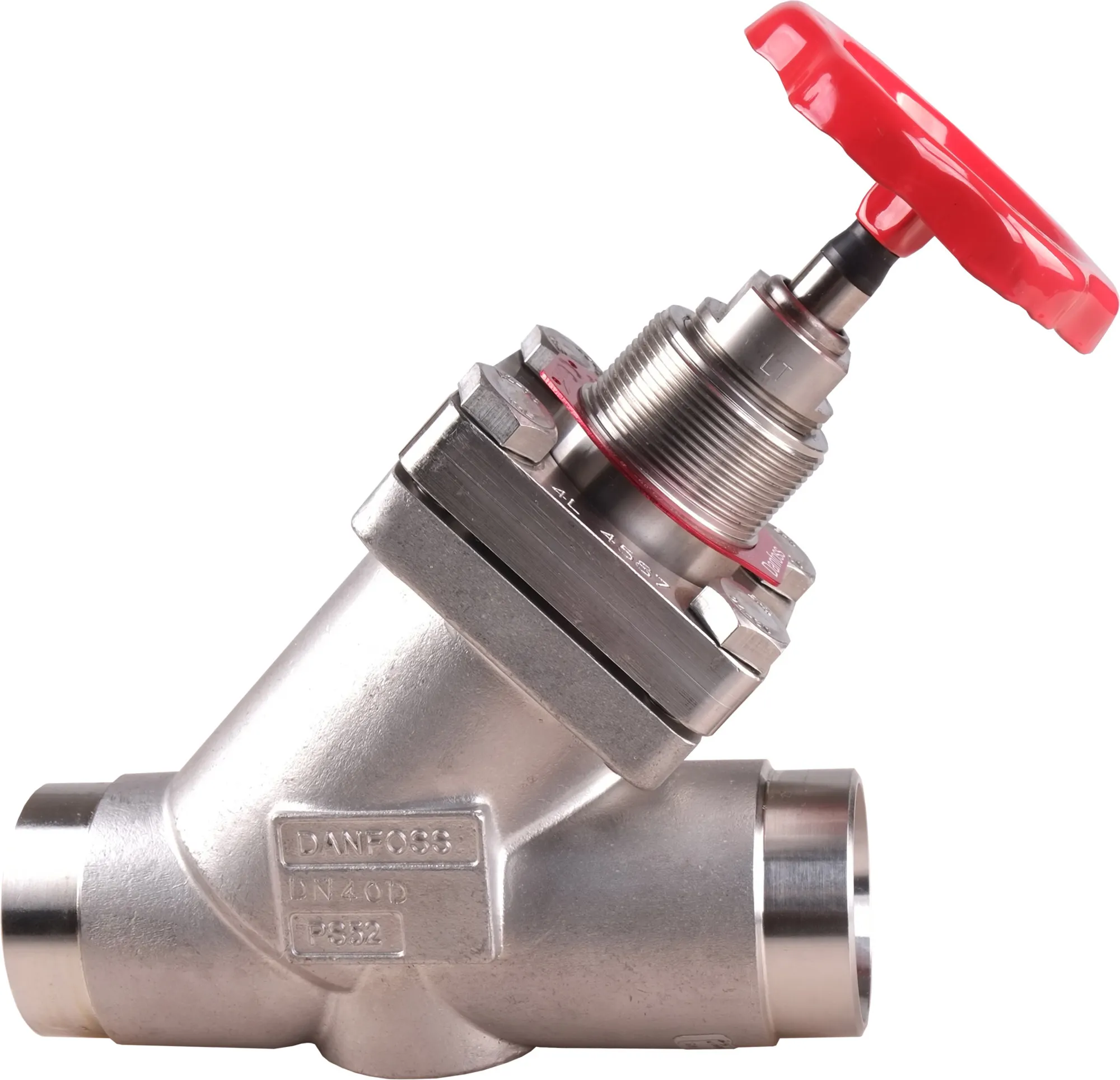

148B6930
Part Number: 148B6930
Product Information
Extended Description
148B6930 Danfoss: Max. Working Pressure [bar]: 140.0
Gross weight
48.5 Kilogram
Net weight
21 Kilogram
Volume
172.8 Liter
EAN
5715162512012
Brand
SVL Flexline
Contain batteries
No
Equipment
Cap
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
Neck
Standard
Packing format
Single pack
Parts included
1 gasket
Parts Program name
SVA-140B
Product accessories
SVL Flexline accessories
Product group
Shut-off and regulating valves
Product Name Description
Function module
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R744
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-40 °F
Type
SVA-140B 125
Type designation
Top Complete
Used for product
SVA-140B 125
Shut-off valve, type SVA-S SS and SVA-L SS
Shut-off valves in stainless steel SVA-S/L SS 15-150
Danfoss EU 033F0685.AX
Manual valves and line components - (stainless steel)
Danfoss MD 033F0691.AI
T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02)
Danfoss UK 033F4026.AB
SVA-S SS SVL range, straightway with handwheel
