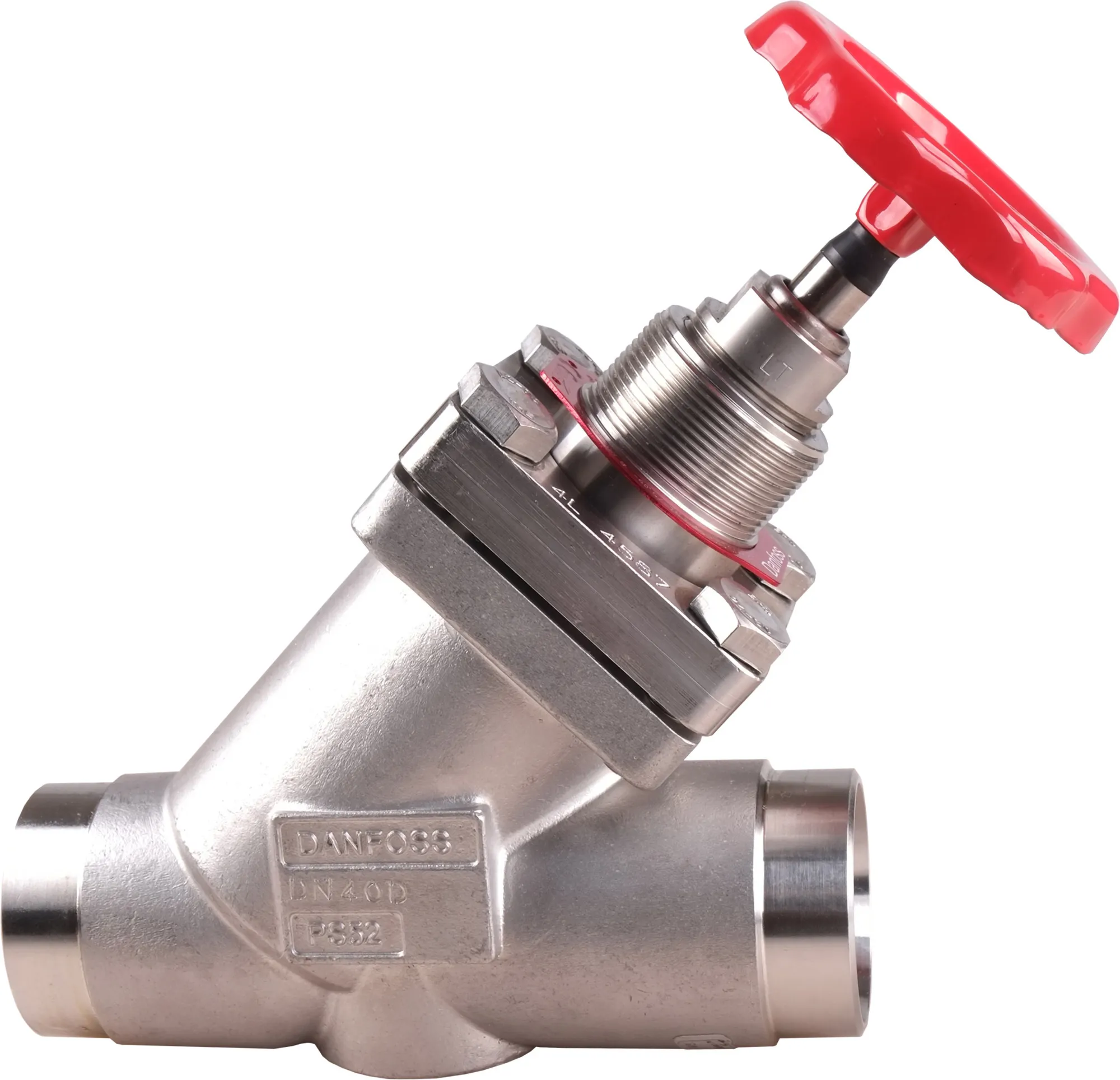

148B7002

Part Number: 148B7002
148B7002
Manufacturer
Danfoss
Part number
148B7002
Category

Product Information

Extended Description

148B7002 Danfoss: Inlet connection type: Socket weld, Outlet connection type: Socket weld, Equipment: Handwheel
Gross weight
4.7 Kilogram
Net weight
4 Kilogram
Volume
7.524 Liter
EAN
5702424601164
Approval
CE,EAC,LLC CDC TYSK,UKCA
Body material
Stainless steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Stainless steel
Connection standard
ASME B 16.11
Contain batteries
No
Cv value [gal/min]
36.66 gal/min
Direction
Straightway
Equipment
Handwheel
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
1 1/2 in
Inlet connection size [mm]
40 mm
Inlet connection type
Socket weld
Kv value [m=C2=B3/h]
31.6 m=C2=B3/h
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Neck
Standard
Outlet connection size [in]
1 1/2 in
Outlet connection size [mm]
40 mm
Outlet connection type
Socket weld
Packing format
Single pack
Parts Program name
SVA-S SS / SVA-L SS
PED category
II
Product accessories
SVL Flexline accessories
Product description
Stop Valve
Product group
Shut-off and regulating valves
Product Name Description
Shut-off valve
Quantity per packing format
1 pc
Refrigerants
R113,R114,R1150,R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R170,R22,R227ea,R23,R236fa,R245fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R503,R507A,R508B,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744,RE170
Serviceable
SVL Flexline spare parts
Type
SVA-S SS 40
UK RoHS compliance
Out of scope
Valve version
Standard version
Shut-off valve, type SVA-S SS and SVA-L SS Shut-off valves in stainless steel SVA-S/L SS 15-150 Danfoss EU 033F0685.AX Manual valves and line components - (stainless steel) Danfoss MD 033F0691.AI T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) Danfoss UK 033F4026.AB SVA-S SS SVL range, straightway with handwheel
