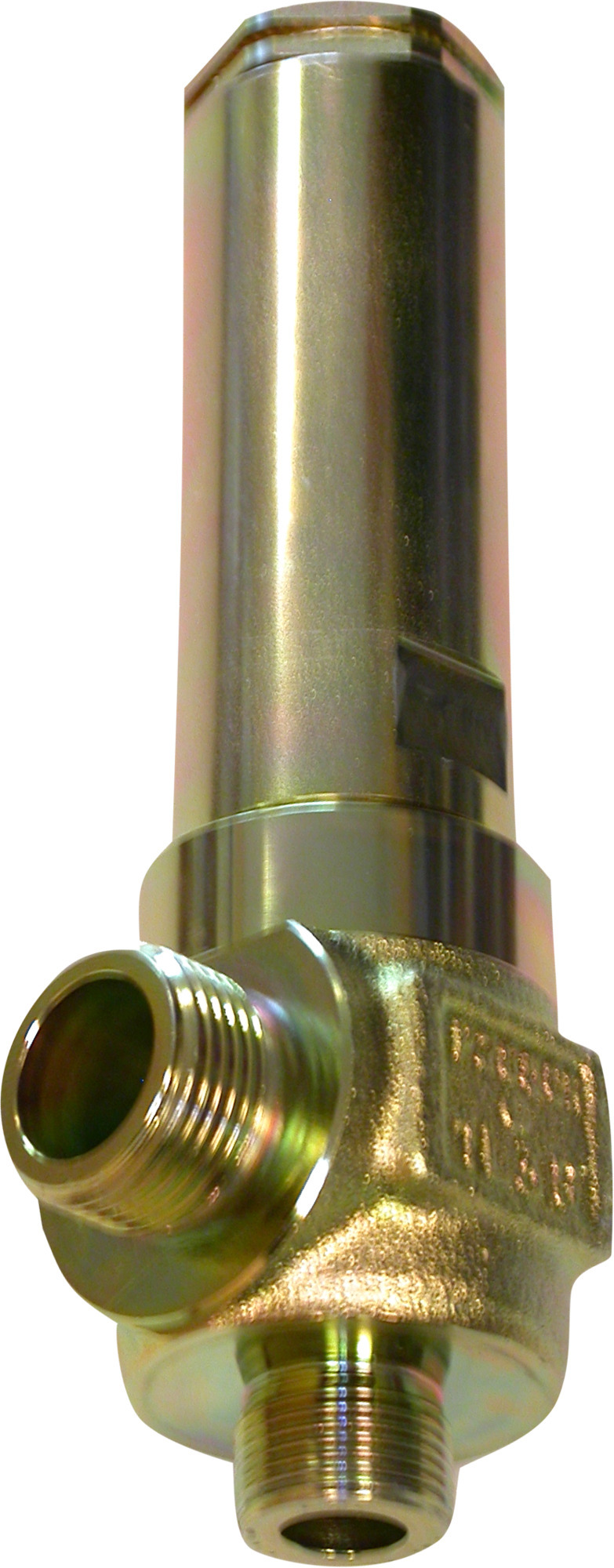

148F3210

Part Number: 148F3210
148F3210
Manufacturer
Danfoss
Part number
148F3210
Category

Product Information

Extended Description

148F3210 Danfoss: Pressure setting [bar]: 10, Connection type: G, Inlet connection size [in]: 3/4, Outlet connection size [in]: 1, Pressure certificate: Danfoss certificate included
Gross weight
1.968 Kilogram
Net weight
1.926 Kilogram
Volume
1.342 Liter
EAN
5702428194167
Approval
CE,EAC,TS,UKCA
CE evaluated
Yes
Certified Coef of Disc
0.73 kg
China RoHS compliance
Out of scope
Comments
0
Connection Internal/External
External
Connection size [in]
1/2 in
Connection size [mm]
15 mm
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Direction
Angleway
EU RoHS compliance
Out of scope
Flow area [in2]
0.206 in=C2=B2
Flow area [mm2]
133 mm=C2=B2
Flow diameter [in]
0.512 in
Flow diameter [mm]
13 mm
Fluid Group
1
Inlet connection size [in]
3/4
Lift [mm]
4.8 mm
Nominal diameter
DN 15
Outlet connection size [in]
1
Packing format
Single pack
PED category
IV
Pressure certificate
Danfoss certificate included
Pressure setting [bar]
10 bar
Pressure setting [psig]
145 psig
Product description
Safety Relief Valve
Product group
Safety relief valves
Product Name Description
Safety relief valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R170,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R600,R600a,R717,R744,R507A,R1234yf,R1234ze(E),R125,R152a,R227ea,R236fa,R245fa,R290,R32,R407H,R413A,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R452C,R454A,R454B,R454C,R455A,R463A,R512A,R513A,R513B,R515A,R515B,R516A
Temperature range [=C2=B0C] [max]
100 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
212 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Type
SFA 15
UK RoHS compliance
Out of scope
148F3019
Spare part, SFA 10(H)/15; SFV 15, Nipple and gasket set
148F3036
Repair kit, Repair kit
148F3079
Spare part, SFA 15, Nipple and gasket set
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Safety relief valves - Industrial Refrigeration product group catalogue Safety relief valve, type SFA 10, SFA 10H, SFA 15 and SFA 15-50 Safety relief valves - Valves Tightness and Service needs Safety relief valves-SFV 20-25, SFA 15, SFA 15-50 Danfoss EU 033F0685.AX Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 Danfoss UK 033F4026.AB Safety relief valve, SFA 15 SFA SFA cut-away model Safety valve, SFA 15 Safety Valve, SFA 15 Safety Valve, SFA 15 Safety valve, SFA 15
