148H3204
Part Number: 148H3204
Product Information
Extended Description

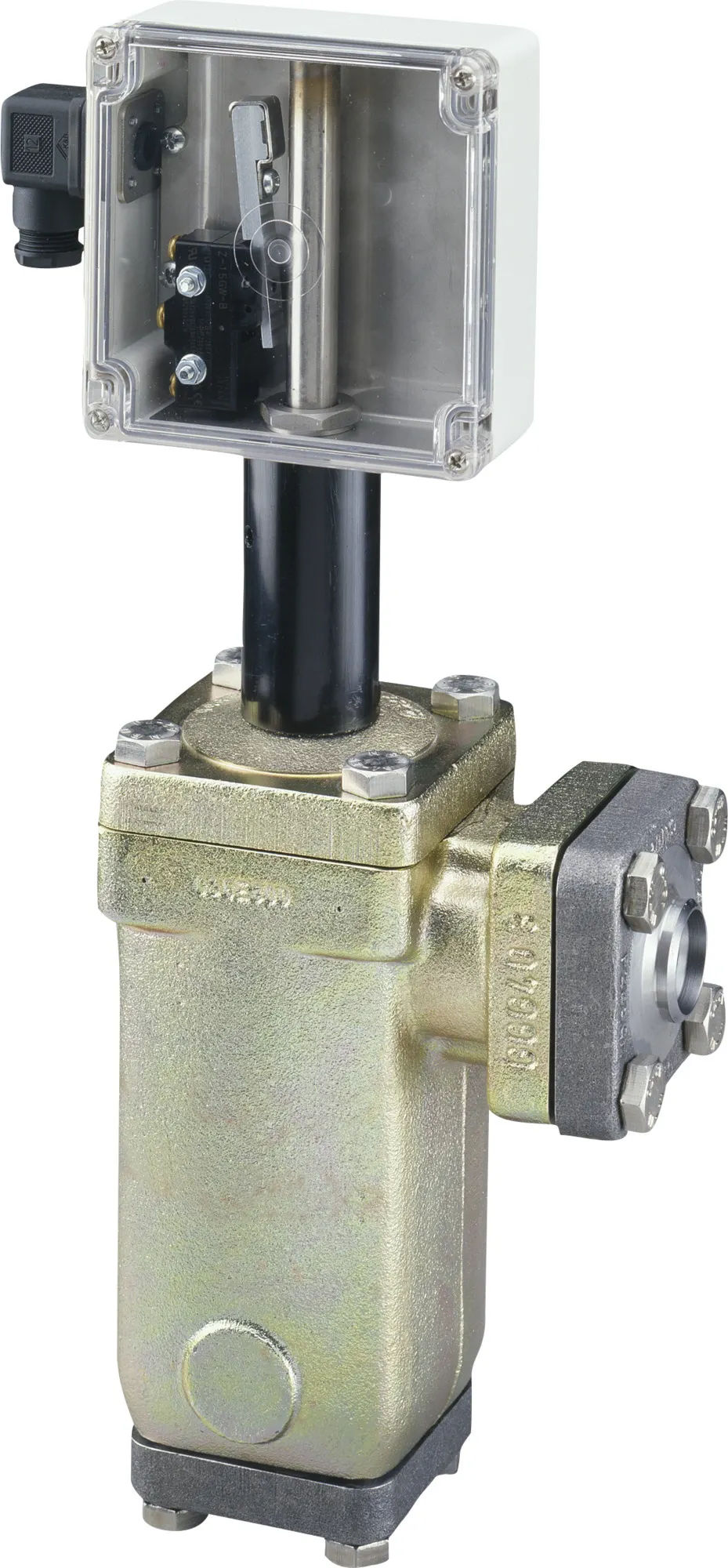

148H3204 Danfoss: Connection type: Butt weld, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 28.0
Gross weight
10.885 Kilogram
Net weight
8 Kilogram
Volume
26.703 Liter
EAN
5702428242219
Approval
CMIM,EAC,LLC CDC TYSK
China RoHS compliance
Out of scope
Connection size [in]
1 in
Connection standard
ASME B 36.10M SCHEDULE 80
Connection type
Butt weld
Contain batteries
No
Electrical connection size
Pg 11
Electrical connection standard
DIN 43650
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Fluid Group
1,2
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Packing format
Single pack
PED category
I
Product accessories
Liq. level switch accessories
Product description
Float Switch
Product group
Switches and thermostats
Product Name Description
Liquid level switch
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R507A
Serviceable
Liq. level switch spare parts
Temperature range [°C] [max]
65 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
149 °F
Temperature range [°F] [min]
-58 °F
Type
AKS 38
UK RoHS compliance
Out of scope
148H3200
Repair kit, Gaskets
148H3202
Switch box, Electric switch box, Spare part
148H3203
Float valve insert, Spare part, Internal float accessory
027N2023
Flange set, Flange, 25 mm, Butt weld
