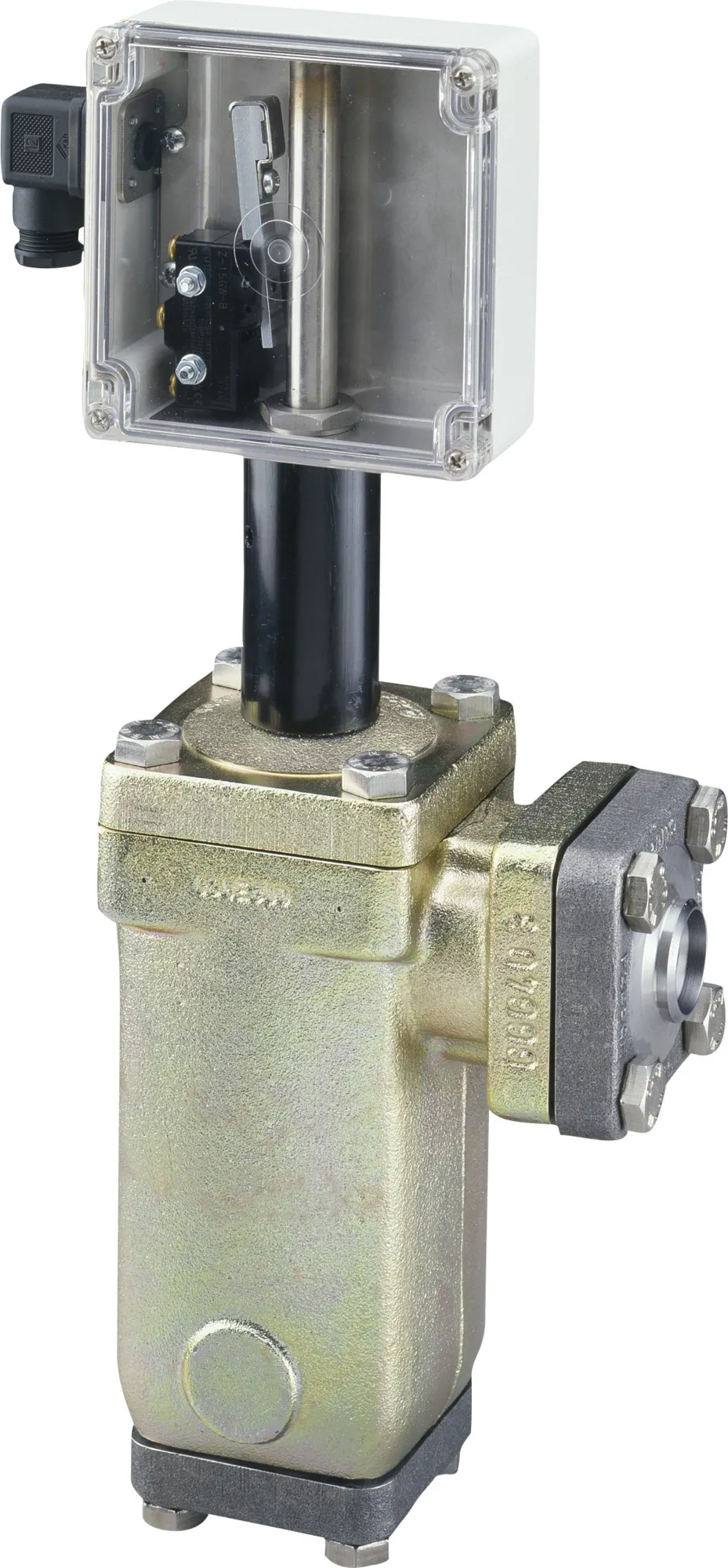

148H3207
Part Number: 148H3207
Product Information
Extended Description
148H3207 Danfoss: Connection type: NPT, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 28.0
Gross weight
10.965 Kilogram
Net weight
10.038 Kilogram
Volume
25.069 Liter
EAN
5702428242189
Approval
CMIM,EAC,LLC CDC TYSK
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection size [in]
3/4 in
Connection standard
ANSI/ASME B1.20.1
Connection type
NPT
Contain batteries
No
Electrical connection size
Pg 11
Electrical connection standard
DIN 43650
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Fluid Group
1,2
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Packing format
Single pack
PED category
I
Product accessories
Liq. level switch accessories
Product description
Float Switch
Product group
Switches and thermostats
Product Name Description
Liquid level switch
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R507A
Serviceable
Liq. level switch spare parts
Temperature range [°C] [max]
65 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
149 °F
Temperature range [°F] [min]
-58 °F
Type
AKS 38
UK RoHS compliance
Out of scope
148H3200
Repair kit, Gaskets
148H3202
Switch box, Electric switch box, Spare part
148H3203
Float valve insert, Spare part, Internal float accessory
027G1007
Flange set, Flange, 20 mm, NPT
