148H3361

Part Number: 148H3361
148H3361
Manufacturer
Danfoss
Part number
148H3361
Category

Product Information

Extended Description

148H3361 Danfoss: Inlet connection size [mm]: 40.00, Kv value [m=C2=B3/h]: 30.000, Max. Working Pressure [bar]: 40.0
Gross weight
4.556 Kilogram
Net weight
4.366 Kilogram
Volume
6.092 Liter
EAN
5702428199223
Approval
CE,CRN,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Steel
Connection size [in]
1 1/2 in
Connection size [mm]
40 mm
Connection standard
EN 10220
Connection type
Butt weld
Contain batteries
No
Cv value [gal/min]
35 gal/min
Direction
Threeway
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed A, B, C
Fluid Group
1,2
Inlet connection size [mm]
40 mm
Kv value [m=C2=B3/h]
30 m=C2=B3/h
Lubricants compatibility
AB
Max. Working Pressure [bar]
40 bar
Max. Working Pressure [psig]
580 psig
Packing format
Single pack
Parts Program name
ORV
PED category
II
Product accessories
ORV accessories

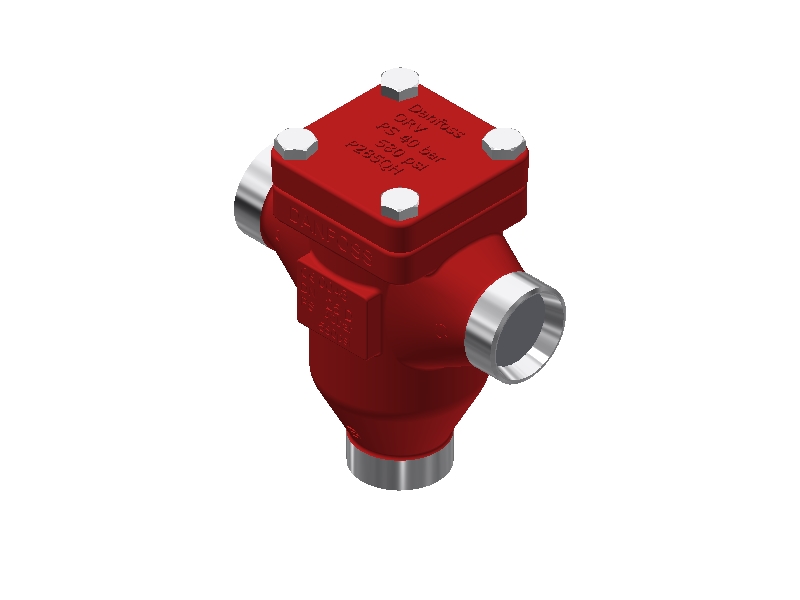

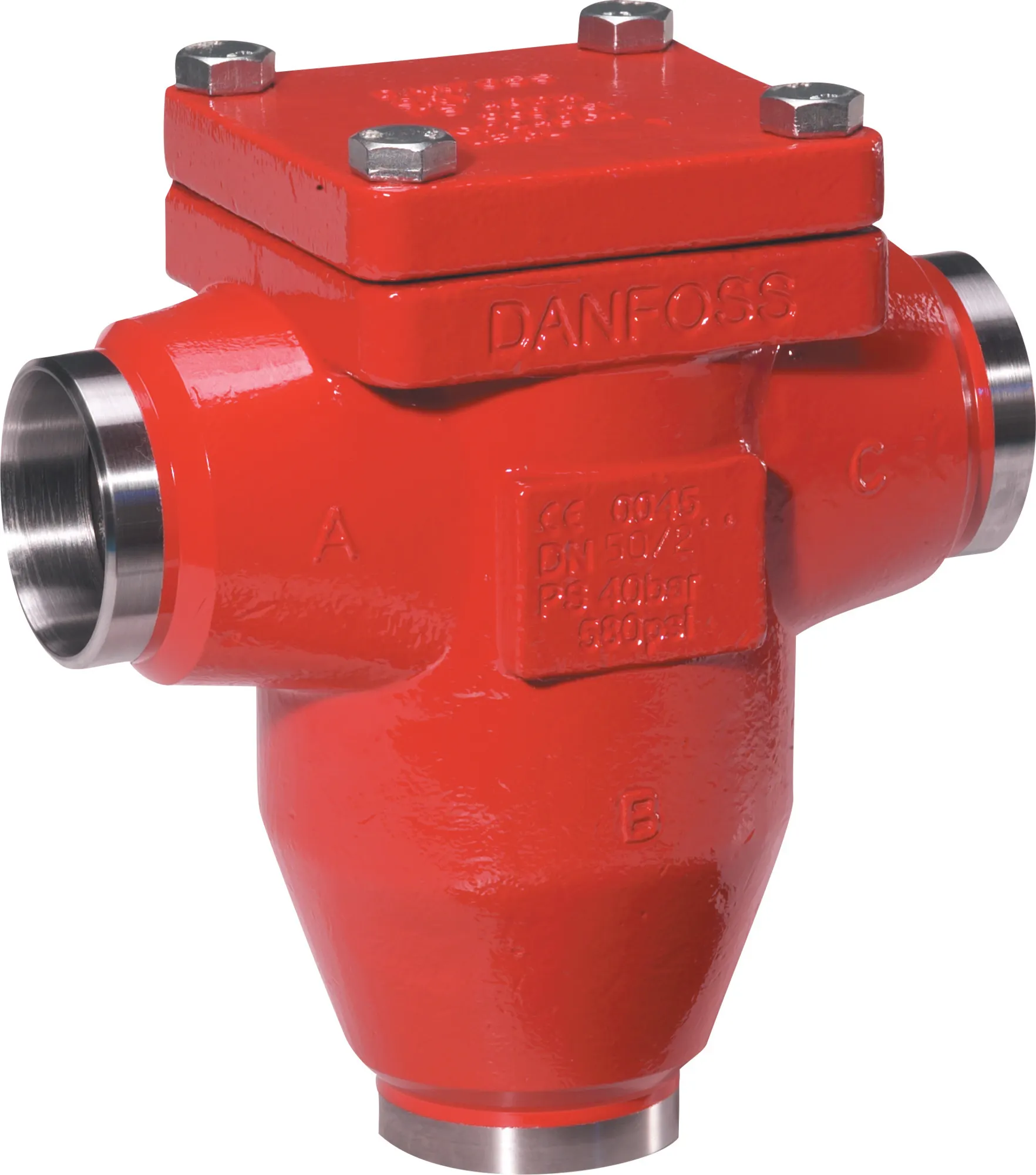

Product description
Oil Regulating valve
Product group
Press. and temp. regul. valves
Product Name Description
Temperature regulating valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a,R170,R22,R290,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R600,R600a,R717,R744,R507A,R113,R114,R1150,R1233zd(E),R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R152a,R227ea,R23,R236fa,R245fa,R32,R402B,R407H,R408A,R413A,R417A,R422A,R422B,R422D,R427A,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R503,R512A,R513A,R513B,R515A,R515B,R516A,RE170,R508B
Serviceable
ORV spare parts
Type
ORV 40
UK RoHS compliance
Out of scope
Valve housing type
H1
Pressure and temperature regulating valves - Industrial Refrigeration product group catalogue Temperature regulating valve, type ORV Temperature regulating valve, type ORV Danfoss EU 033F0685.AX Danfoss MD 033F0686.AS Danfoss MD 033F0691.AI T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) Danfoss UK 033F4026.AB Temperature regulating valve, ORV 25_027X0270, 027X0270, 148H3230 ORV 40 D H1 Valve housing with cover ORV 40 D H1
