161L0982

Part Number: 161L0982
161L0982
Manufacturer
Danfoss
Part number
161L0982
Category

Product Information

Extended Description

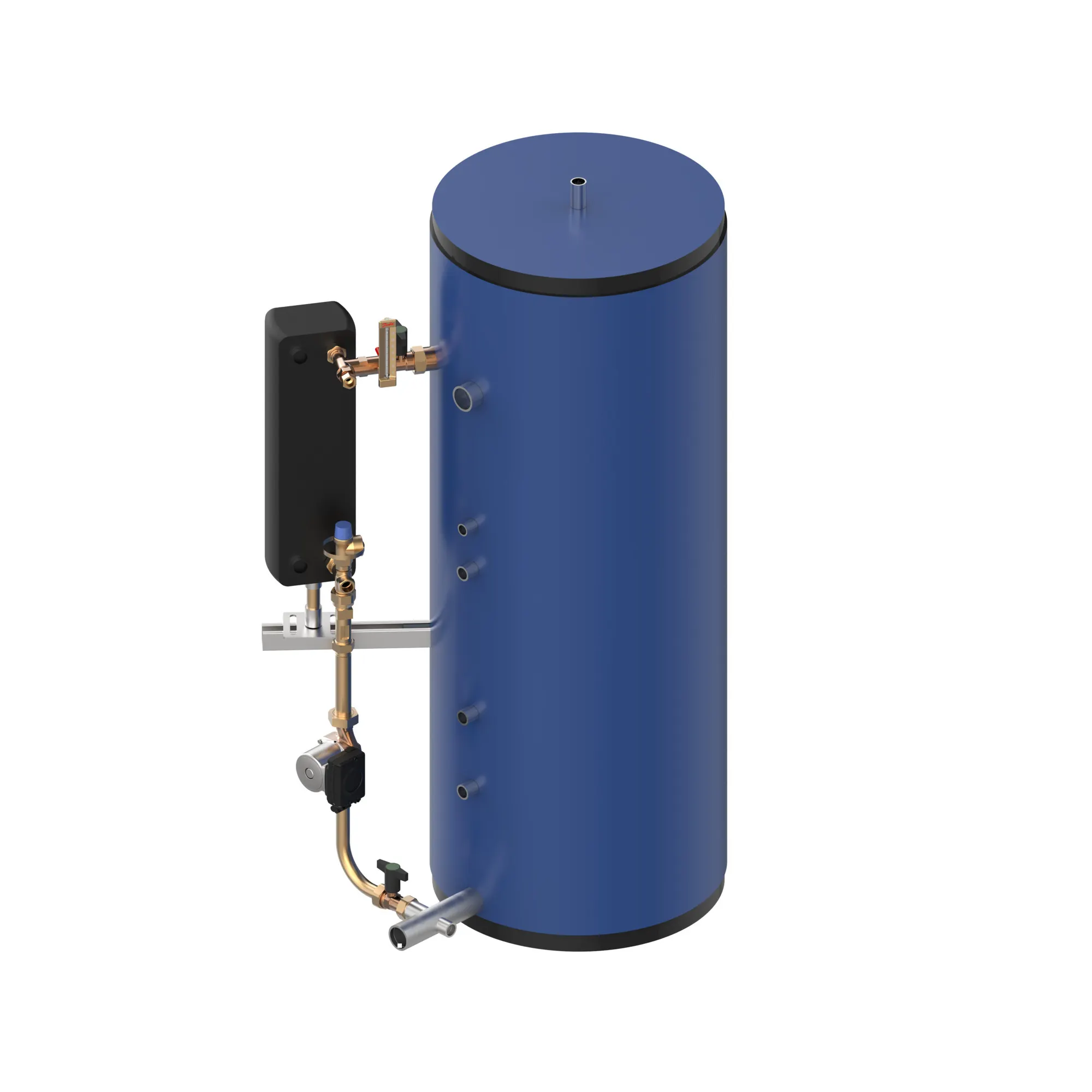

161L0982 Danfoss: THERMODUAL-S 300-25
Gross weight
72 Kilogram
Net weight
72 Kilogram
EAN
5715162705414
Allowed temperature [ËšC] [Min]
2 °C
Application type
DHW storage & charging
Approval
DVGW,CE
Capacity [kW]
25 kW
Category name
Tank solution substations
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
Rp3/4"
Circulation connection type
internal thread
Circulation pipe size
DN20
Connection direction primary and secondary
horizontal
Contain batteries
No
Current [A] [Max]
0.1 A
DCW static pressure [bar] [Min]
1 bar
Delta P primary without heat meter [bar] [Min]
0.1 bar
Depth with cover [mm]
915 mm
Description
THERMODUAL-S 300-25
Design
standing
DH connection size
26,9 mm
DH connection type
welded
DH pipe size
DN20
DHW connection size
Rp1 1/2"
DHW connection type
internal thread
DHW pipe size
DN40
DHW pump brand
Grundfos
DHW pump type
UPM2K
Differential pressure primary [bar] [Max]
25 bar
EU RoHS compliance
Out of scope
Flow primary [m3/h] [Max]
0.48 mÂł/h
Flow secondary [m3/h] [Max]
0.43 mÂł/h
HE connection size
26,9 mm
HE connection type
welded
HE pipe size
DN20
Height with cover [mm]
1760 mm
HEX DHW alloy
1.4404
HEX DHW brazed/gasketed material
Brazed copper
Hot water tank volume [l]
300 L
Insulation material
EPS with laminated fleece
Manufacturer's name
Danfoss
Number of households [Max]
11
Package 2 depth [mm]
800 mm
Package 2 height [mm]
500 mm
Package 2 width [mm]
1200 mm
Package depth [mm]
750 mm
Package height [mm]
1910 mm
Package width [mm]
750 mm
PED category
§ 4.3
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
25 bar
Pressure secondary [bar] [Max]
10 bar
Product group
DHW system
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
150 °C
Supply temperature recommended [ËšC]
70 °C
Supply voltage [V] AC
230 V
Tank material
14571
Type
TD-S
UK RoHS compliance
Out of scope
Width with cover [mm]
890 mm
