161L1357

Part Number: 161L1357
161L1357
Manufacturer
Danfoss
Part number
161L1357
Category

Product Information

Extended Description

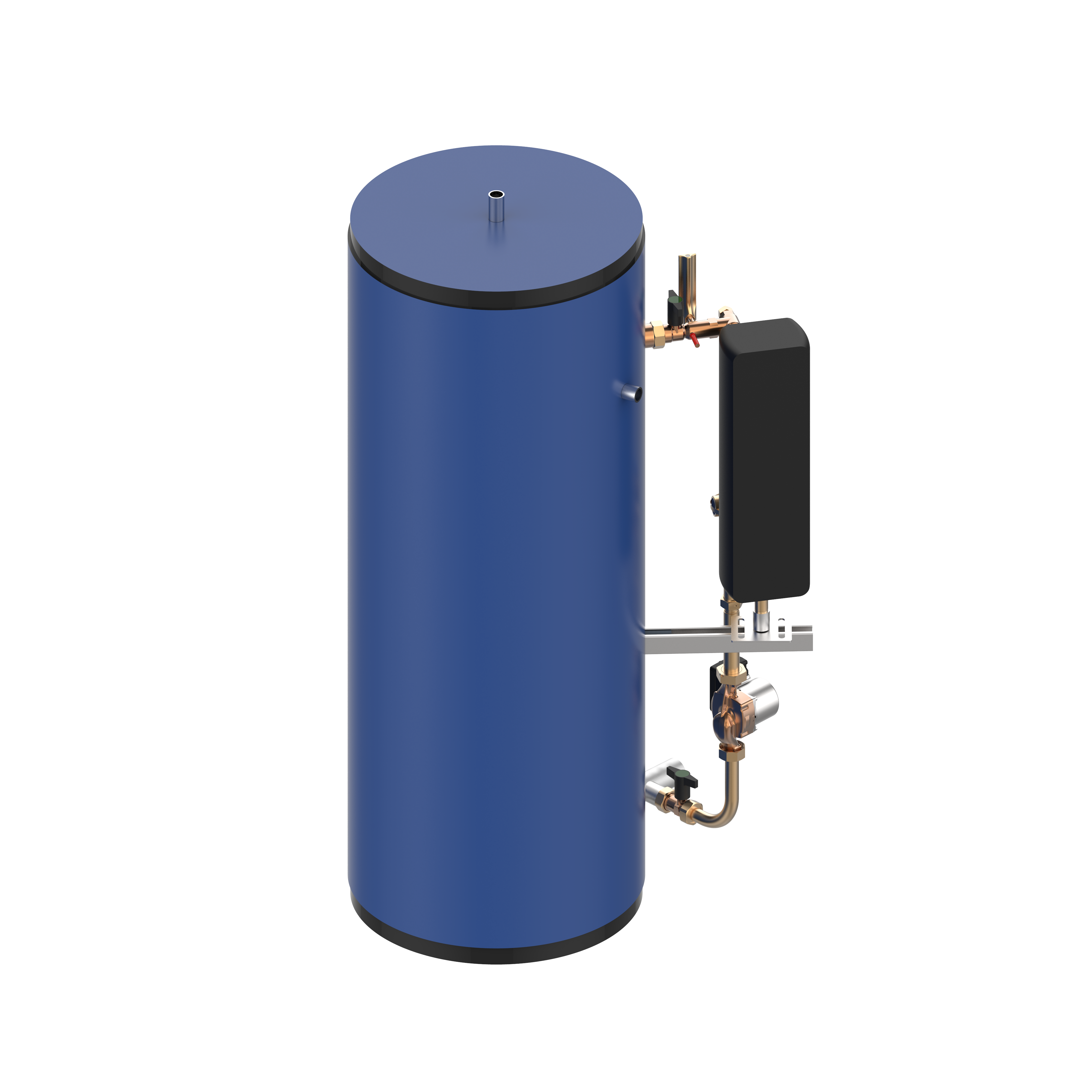

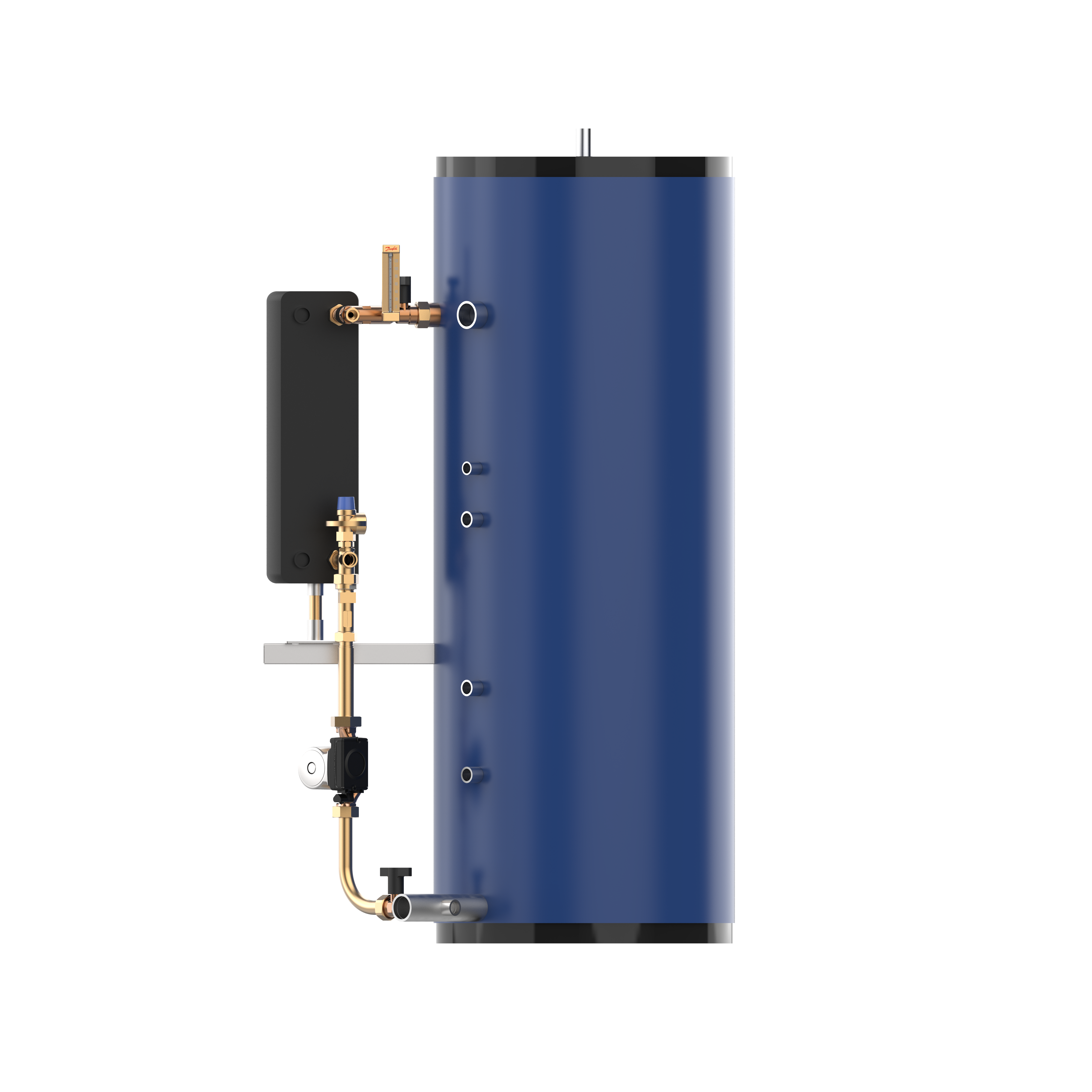

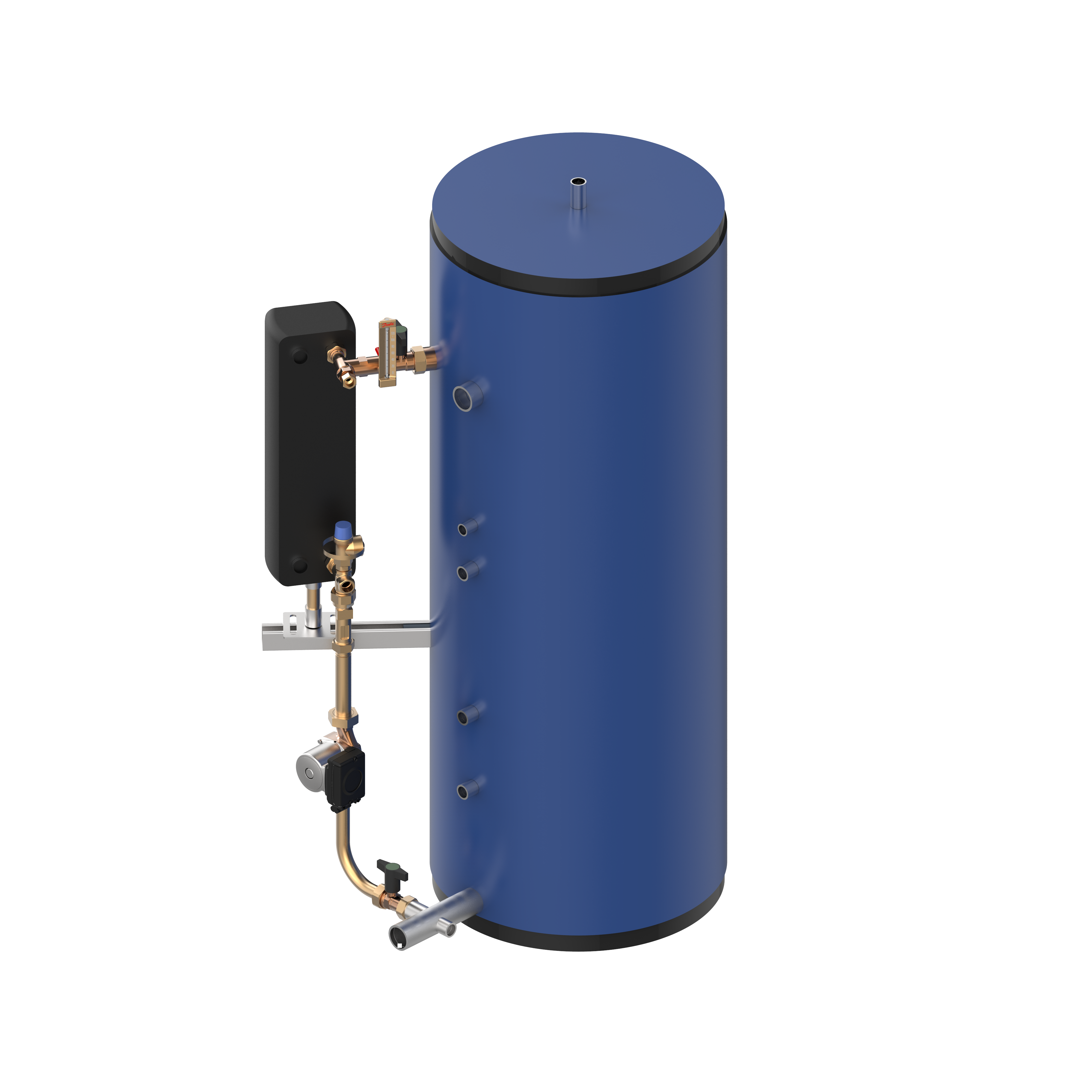

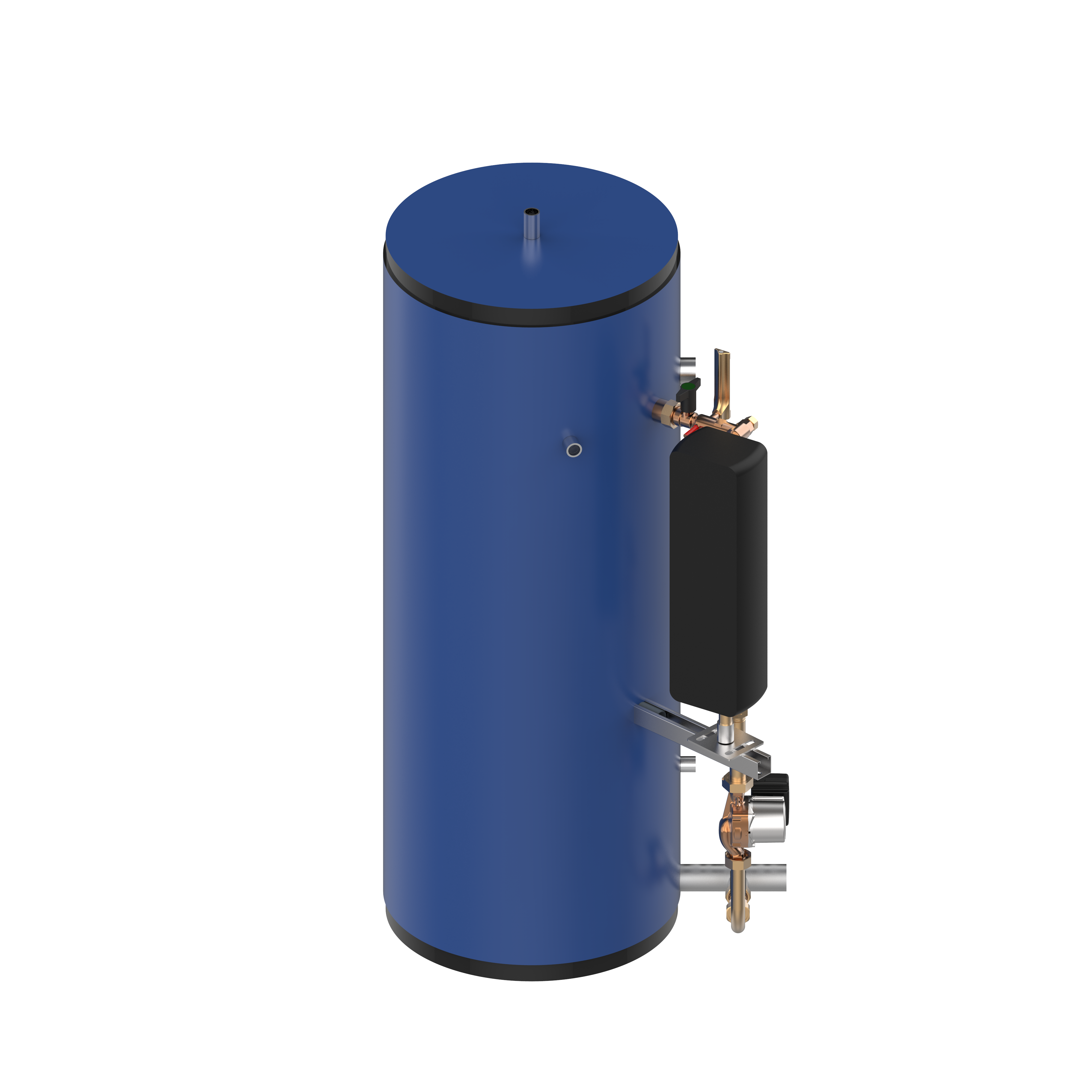

161L1357 Danfoss: THERMODUAL-S 750-40 StS
Gross weight
140 Kilogram
Net weight
140 Kilogram
EAN
5715162854594
Allowed temperature [ËšC] [Min]
2 °C
Application type
DHW storage & charging
Approval
DVGW,CE
Capacity [kW]
40 kW
Category name
Tank solution substations
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
Rp1"
Circulation connection type
internal thread
Circulation pipe size
DN25
Connection direction primary and secondary
horizontal
Contain batteries
No
Current [A] [Max]
0.1 A
DCW static pressure [bar] [Min]
1 bar
Delta P primary without heat meter [bar] [Min]
0.11 bar
Depth with cover [mm]
1165 mm
Description
THERMODUAL-S 750-40 StS
Design
standing
DH connection size
26,9 mm
DH connection type
welded
DH pipe size
DN20
DHW connection size
Rp2"
DHW connection type
internal thread
DHW pipe size
DN50
DHW pump brand
Grundfos
DHW pump type
UPM2K
Differential pressure primary [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flow primary [m3/h] [Max]
0.76 mÂł/h
Flow secondary [m3/h] [Max]
0.69 mÂł/h
HE connection size
26,9 mm
HE connection type
welded
HE pipe size
DN20
Height with cover [mm]
2045 mm
HEX DHW alloy
1.4404
HEX DHW brazed/gasketed material
Brazed stainless steel
Hot water tank volume [l]
750 L
Insulation material
EPS with laminated fleece
Manufacturer's name
Danfoss
Number of households [Max]
27
Package 2 depth [mm]
800 mm
Package 2 height [mm]
500 mm
Package 2 width [mm]
1200 mm
Package depth [mm]
1000 mm
Package height [mm]
2195 mm
Package width [mm]
1000 mm
PED category
§ 4.3
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
16 bar
Pressure secondary [bar] [Max]
10 bar
Product group
DHW system
Supply temperature construction [ËšC]
150 °C
Supply temperature recommended [ËšC]
70 °C
Supply voltage [V] AC
230 V
Tank material
14571
Type
TD-S
UK RoHS compliance
Out of scope
Width with cover [mm]
1050 mm
