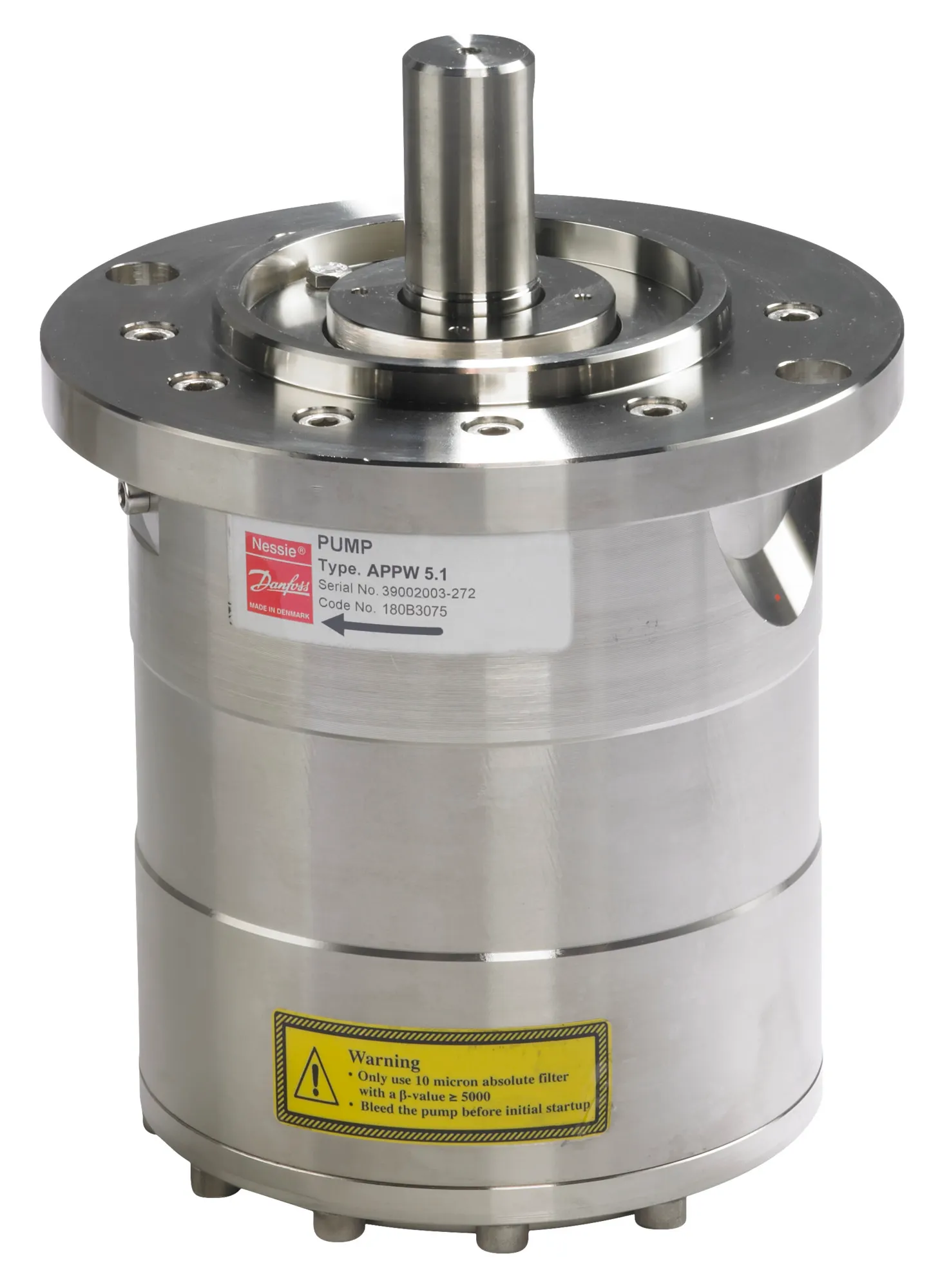

180B3075
Part Number: 180B3075
Product Information
Extended Description
180B3075 Danfoss: Flow [gpm] [Max]: 21.700, Flow [l/min] [Max]: 83.70, Outlet pressure [barg] [Max]: 83, Outlet pressure [psig] [Max]: 1200, Speed [rpm] [Max]: 1800, Speed [rpm] [Min]: 700, ATEX compliance: No
Gross weight
36.8 Kilogram
Net weight
33.862 Kilogram
Volume
33.07 Liter
EAN
5715162667552
Ambient temperature [=C2=B0C] [max]
50 =C2=B0C
Ambient temperature [=C2=B0C] [min]
0 =C2=B0C
Ambient temperature [=C2=B0F] [max]
122 =C2=B0F
Ambient temperature [=C2=B0F] [min]
32 =C2=B0F
Approval
CE
ATEX compliance
No
Body material
Duplex
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Country of origin
Denmark
Description
Pump for waste water
Displacement [cm=C2=B3/rev]
50.2 cm=C2=B3/rev
Displacement [in=C2=B3/rev]
3.06 in=C2=B3/rev
Drain connection size (metric)
M6
Drain connection standard
Metric
Drain connection type
Thread
Flow [gpm] [Max]
21.7 gal/min
Flow [gpm] [Min]
7.4 gal/min
Flow [l/min] [Max]
83.7 l/min
Flow [l/min] [Min]
28.5 l/min
Flow [m=C2=B3/h] [Max]
5 m=C2=B3/h
Flow [m=C2=B3/h] [Min]
1.7 m=C2=B3/h
Inlet connection size (metric)
M42
Inlet connection standard
Metric
Inlet connection type
Thread
Inlet pressure [barg] [Max]
5 barg
Inlet pressure [barg] [Min]
0.5 barg
Inlet pressure [psig] [Max]
72.5 psig
Inlet pressure [psig] [Min]
7.3 psig
Inlet pressure peak [barg] [Max]
5 barg
Inlet pressure peak [psig] [Max]
73 psig
Media temperature [=C2=B0C] [Max]
50 =C2=B0C
Media temperature [=C2=B0C] [Min]
2 =C2=B0C
Media temperature [=C2=B0F] [Max]
122 =C2=B0F
Media temperature [=C2=B0F] [Min]
36 =C2=B0F
Outlet connection size (metric)
M42
Outlet connection standard
Metric
Outlet connection type
Thread
Outlet pressure [barg] [Max]
83 barg
Outlet pressure [barg] [Min]
20 barg
Outlet pressure [psig] [Max]
1200 psig
Outlet pressure [psig] [Min]
290 psig
Outside dimensions of packaging LxWxH [in]
14,9x11,8x11,8
Outside dimensions of packaging LxWxH [mm]
380x300x300
Product description
APP W pumps
Product group
Pump
REACH Candidate List substances
No
Seal Material
NBR
Serviceable
Yes
Sound pressure level [dB(A)]
78 dBA
Speed [rpm] [Max]
1800 rpm
Speed [rpm] [Min]
700 rpm
Speed continuous [rpm] [Min]
700 rpm
Type
APP W 5.1-10.2
Type designation
APP W 5,1
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
180B4086
Retainer kit, APP W 5.1; APP W 7.2; APP W 8.2; APP W 6.5
180B4154
Piston kit, APP 6.5; APP 7.2; APP 5.1; APP 8.2
180B4158
Valve plate kit, APP 6.5; APP 7.2; APP 5.1; APP 8.2
180B4160
Cylinder barrel kit, APP 6.5; APP 7.2; APP 5.1; APP 10.2; APP 8.2
180B4161
Seal kit, APP 6.5; APP 7.2; APP 5.1; APP 10.2; APP 8.2
180B4162
Tool kit, APP 6.5; APP 7.2; APP 5.1; APP 10.2; APP 8.2
180B4316
Port flange kit, APP 6.5; APP 7.2; APP 5.1; APP 10.2; APP 8.2
180B4129
Swashplate kit, APP 5.1
180B3205
Pump connection
180H0049
Valve, VCM 10 M42 to 1.5 VIC
180Z0059
Pump connection
180Z0216
Coupling and Bell Housing
180Z0217
Coupling and Bell Housing
180Z0218
Coupling and Bell Housing
180Z0245
Coupling
180Z0246
Coupling
180Z0247
Coupling
180Z0248
Coupling
