180U6571

Part Number: 180U6571
180U6571
Manufacturer
Danfoss
Part number
180U6571
Category

Product Information

Extended Description

180U6571 Danfoss: Flow [gpm] [Max]: 5450.000, Flow [l/min] [Max]: 20.90, Outlet pressure [barg] [Max]: 160, Outlet pressure [psig] [Max]: 2320, Speed [rpm] [Max]: 1800, Speed continuous [rpm] [Min]: 700, ATEX compliance: No
Gross weight
56 Kilogram
Net weight
35.7 Kilogram
Volume
259.2 Liter
EAN
5715162499672
Ambient temperature [=C2=B0C] [max]
50 =C2=B0C
Ambient temperature [=C2=B0C] [min]
0 =C2=B0C
Ambient temperature [=C2=B0F] [max]
122 =C2=B0F
Ambient temperature [=C2=B0F] [min]
32 =C2=B0F
Approval
CE
ATEX compliance
No
Body material
AISI 304
CE evaluated
Yes
Contain batteries
No
Country of origin
Denmark
Description

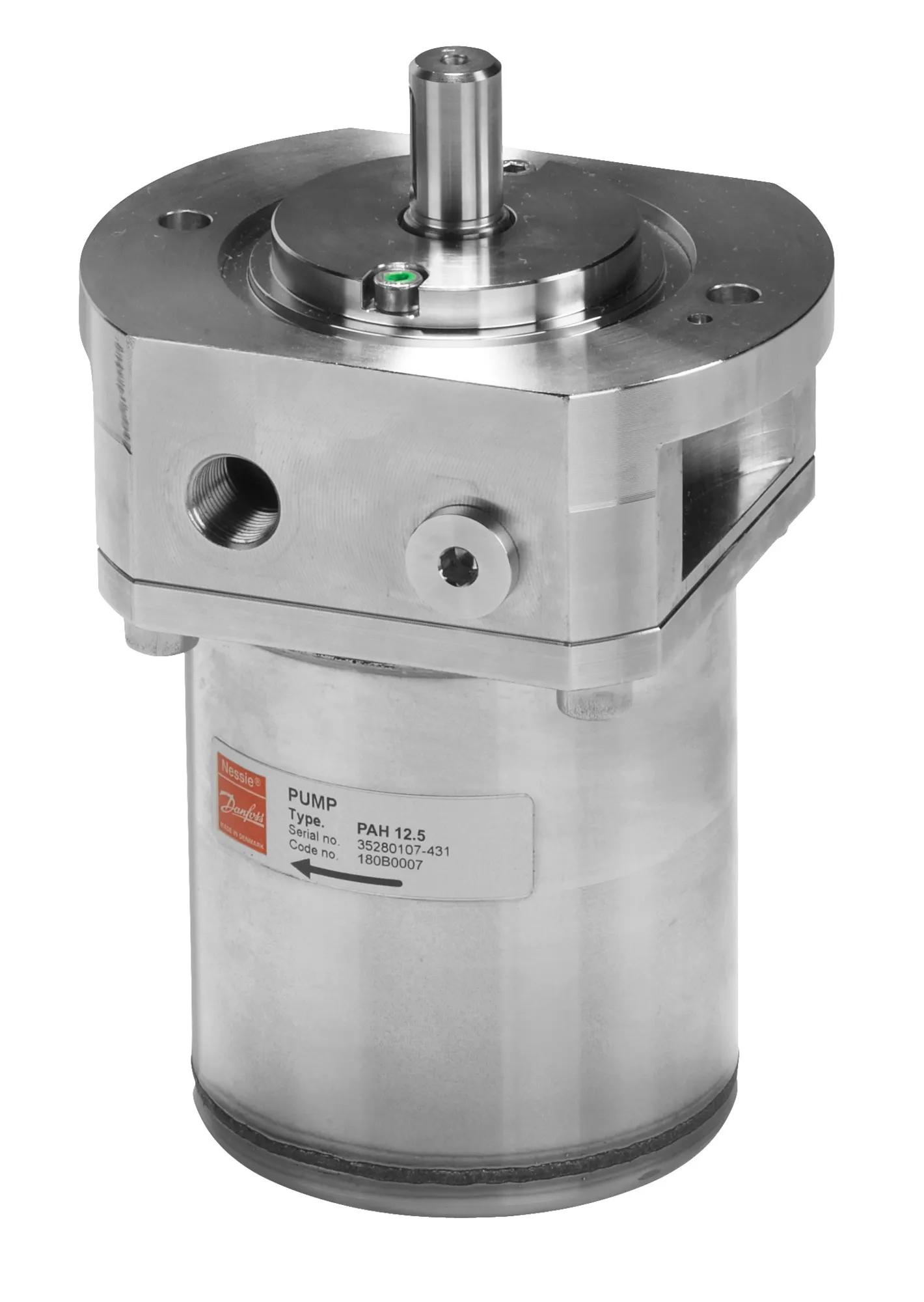

Pump unit MPU PAH 12.5 w. 2,2kW 4 pole IE3
Displacement [cm=C2=B3/rev]
12.5 cm=C2=B3/rev
Displacement [in=C2=B3/rev]
0.75 in=C2=B3/rev
Drain connection size [in]
1/4 in
Drain connection standard
BSPP
Drain connection type
Thread
Flow [gpm] [Max]
5450 gal/min
Flow [gpm] [Min]
1870 gal/min
Flow [l/min] [Max]
20.9 l/min
Flow [l/min] [Min]
7.2 l/min
Inlet connection size [in]
3/4 in
Inlet connection standard
BSPP
Inlet connection type
Thread
Inlet pressure [barg] [Max]
4 barg
Inlet pressure [barg] [Min]
0 barg
Inlet pressure [psig] [Max]
58 psig
Inlet pressure [psig] [Min]
0 psig
Media temperature [=C2=B0C] [Max]
50 =C2=B0C
Media temperature [=C2=B0C] [Min]
2 =C2=B0C
Media temperature [=C2=B0F] [Max]
122 =C2=B0F
Media temperature [=C2=B0F] [Min]
36 =C2=B0F
Outlet connection size [in]
3/8 in
Outlet connection standard
BSPP
Outlet connection type
Thread
Outlet pressure [barg] [Max]
160 barg
Outlet pressure [barg] [Min]
10 barg
Outlet pressure [psig] [Max]
2320 psig
Outlet pressure [psig] [Min]
145 psig
Outside dimensions of packaging LxWxH [in]
10,7x5,9x5,4
Outside dimensions of packaging LxWxH [mm]
274x151x137
Product description
PAH pumps
Product group
Pump
REACH Candidate List substances
No
Seal Material
NBR
Serviceable
Yes
Sound pressure level [dB(A)]
75 dBA
Speed [rpm] [Max]
1800 rpm
Speed [rpm] [Min]
700 rpm
Speed continuous [rpm] [Min]
700 rpm
Type
PAH 10-12.5
Type designation
PAH 12.5
UL evaluated
Out of scope
Data sheet PAH pumps PAH/PAHT 2-12.5 Instruction PAH 2-12.5 Installation, Opearation and Maintenance manual Danfoss EU 180R8002.AG Danfoss MD 180R8301.AD Danfoss MD 180R8303.AA Danfoss MD 180R8305.AE PAH 12.5 pump 3D PAH 10-12.5 pumps
