187F3772
Part Number: 187F3772
Product Information
Extended Description

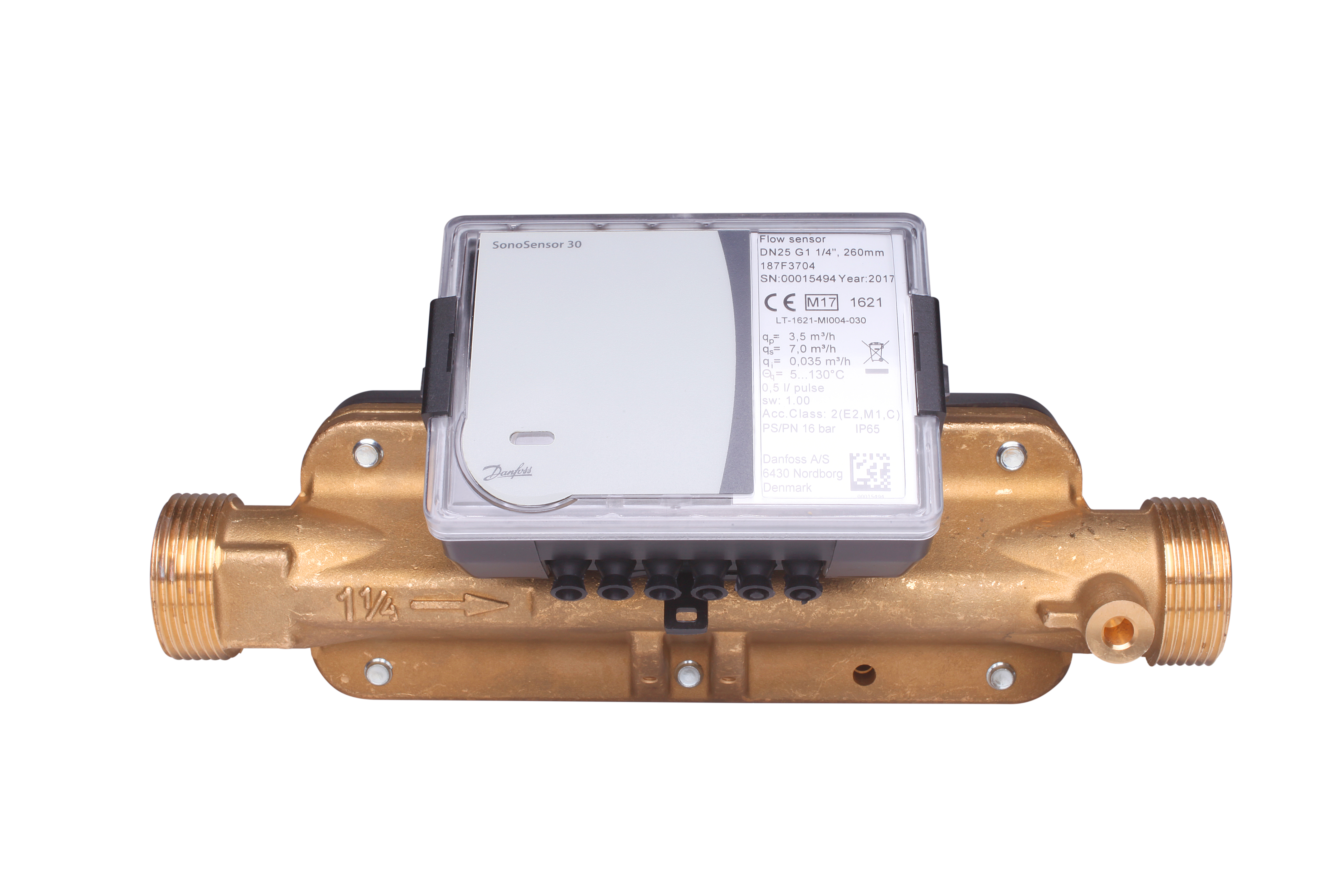

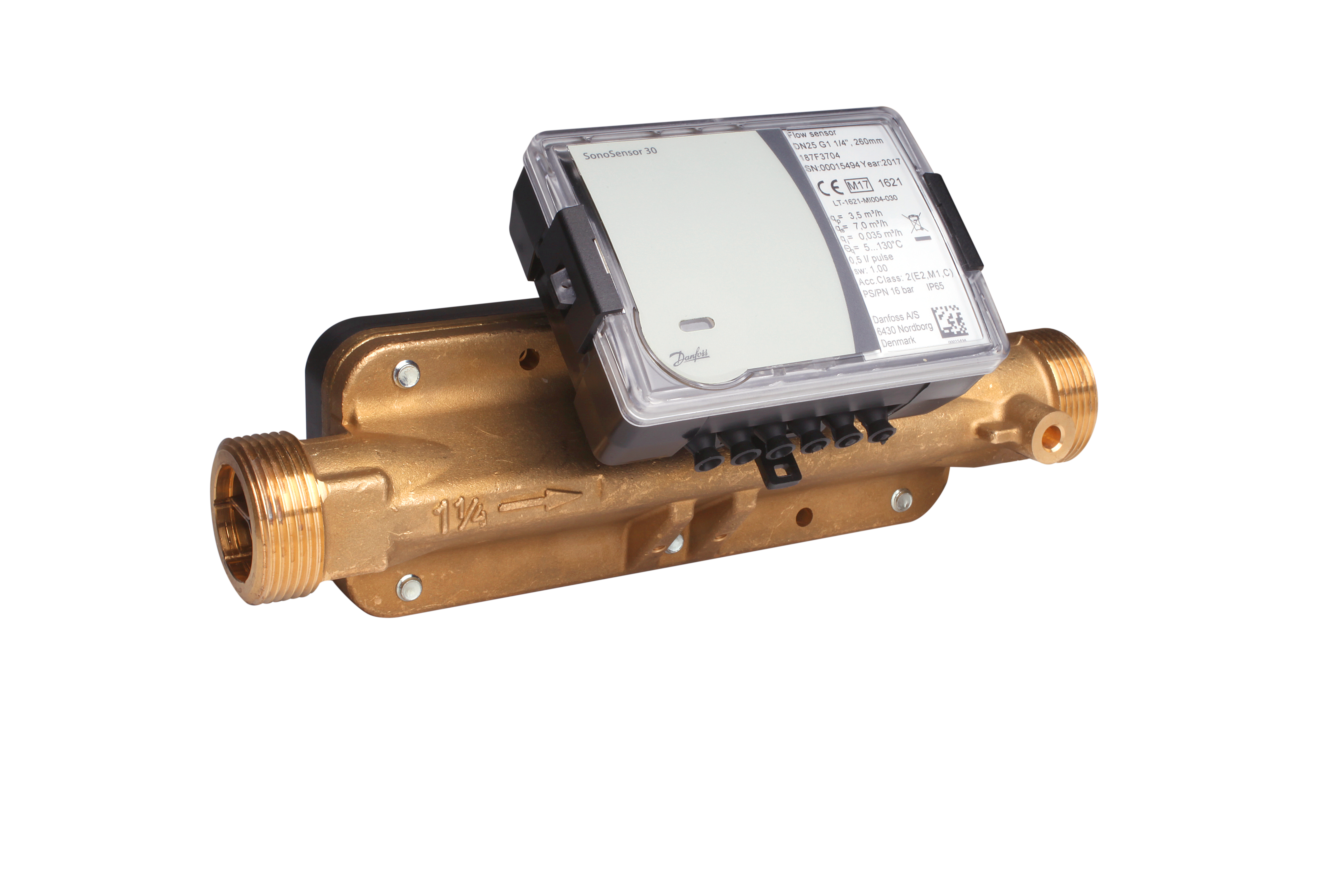

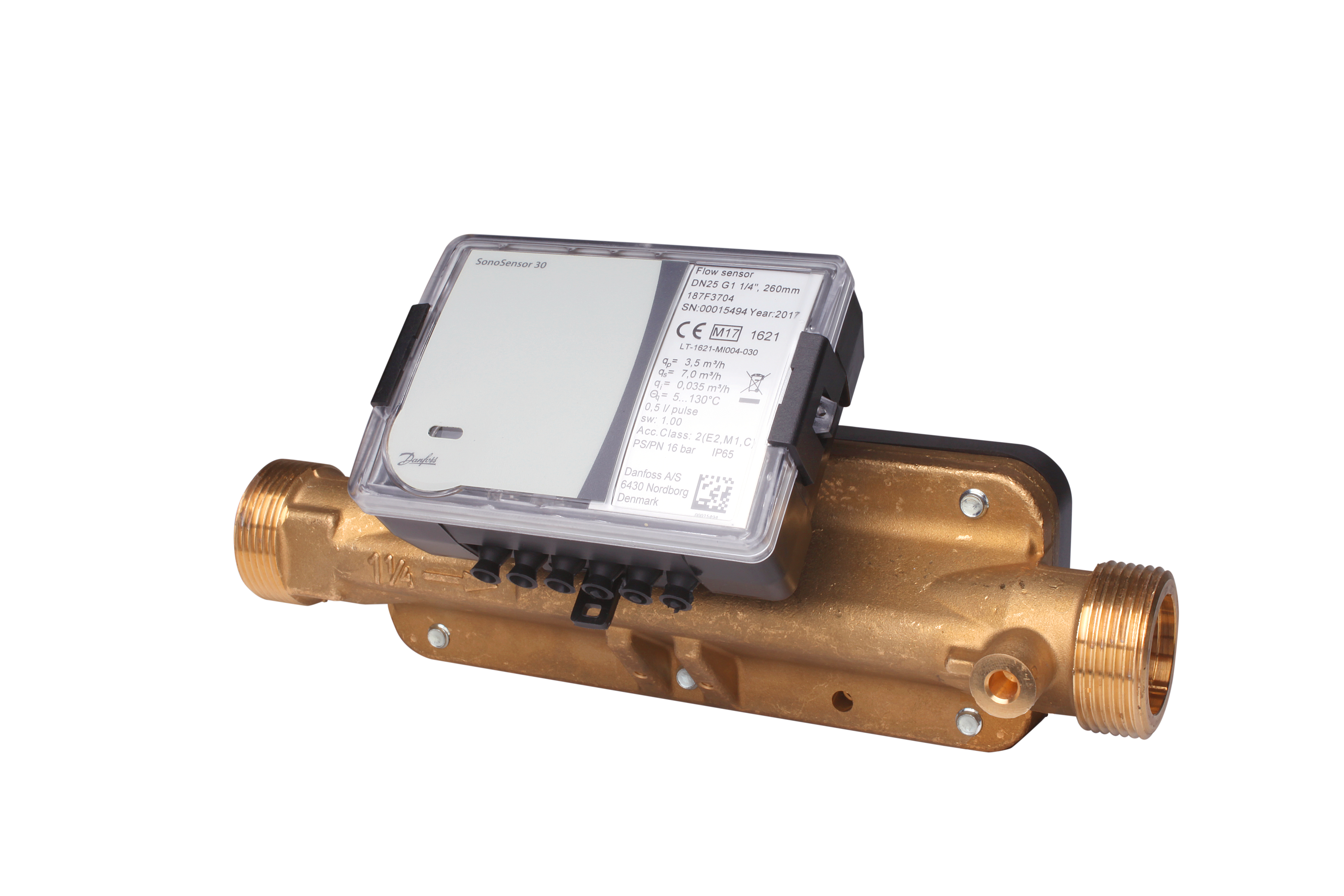

187F3772 Danfoss: Flow sensor for commercial and residential applications
Gross weight
0.671 Kilogram
Net weight
0.56 Kilogram
Volume
2.972 Liter
EAN
5702424546434
Accuracy standard
Class 2 to EN1434
Ambient class
E2/M1
Ambient humidity [% RH] [Max]
93 %
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
5 =C2=B0C
Application
Heating
Approval authority
MID
Battery lifetime [Years]
12 yr
Cable length between calculator and flow sensor [m]
1.2 m
China RoHS compliance
Out of scope
Connection size
G 3/4
Connection types
Thread
Description
Flow sensor for commercial and residential applications
Diameter [mm]
15 mm
Dynamic range
1:100
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Out of scope
Flow measuring principle
Ultrasonic
In scope of WEEE
Yes
Integrated communication
2 pulse output
IP protection class
IP65
Length [mm]
110 mm
Media
Water quality with pH 7 to 9.5
Media temperature [=C2=B0C] [Max]
130 =C2=B0C
Media temperature [=C2=B0C] [Min]
5 =C2=B0C
Media temporary overload temperature [=C2=B0C]
150 =C2=B0C
Pressure nominal [bar]
25 bar
Product group
Energy meters
Pulse value volume [l/pulse]
0.1 l/pulse
qp [m=C2=B3/h]
1.5 m=C2=B3/h
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
45e37293-4903-4da8-85c6-f45db225394d
SCIP dossier product name
SonoSensor 30 1
Supply voltage [V] DC
4 V
Supply voltage type
Battery 1 A-cell
Type
SonoSensor 30
UK RoHS compliance
Out of scope
