200B0032
Part Number: 200B0032
Product Information
Extended Description

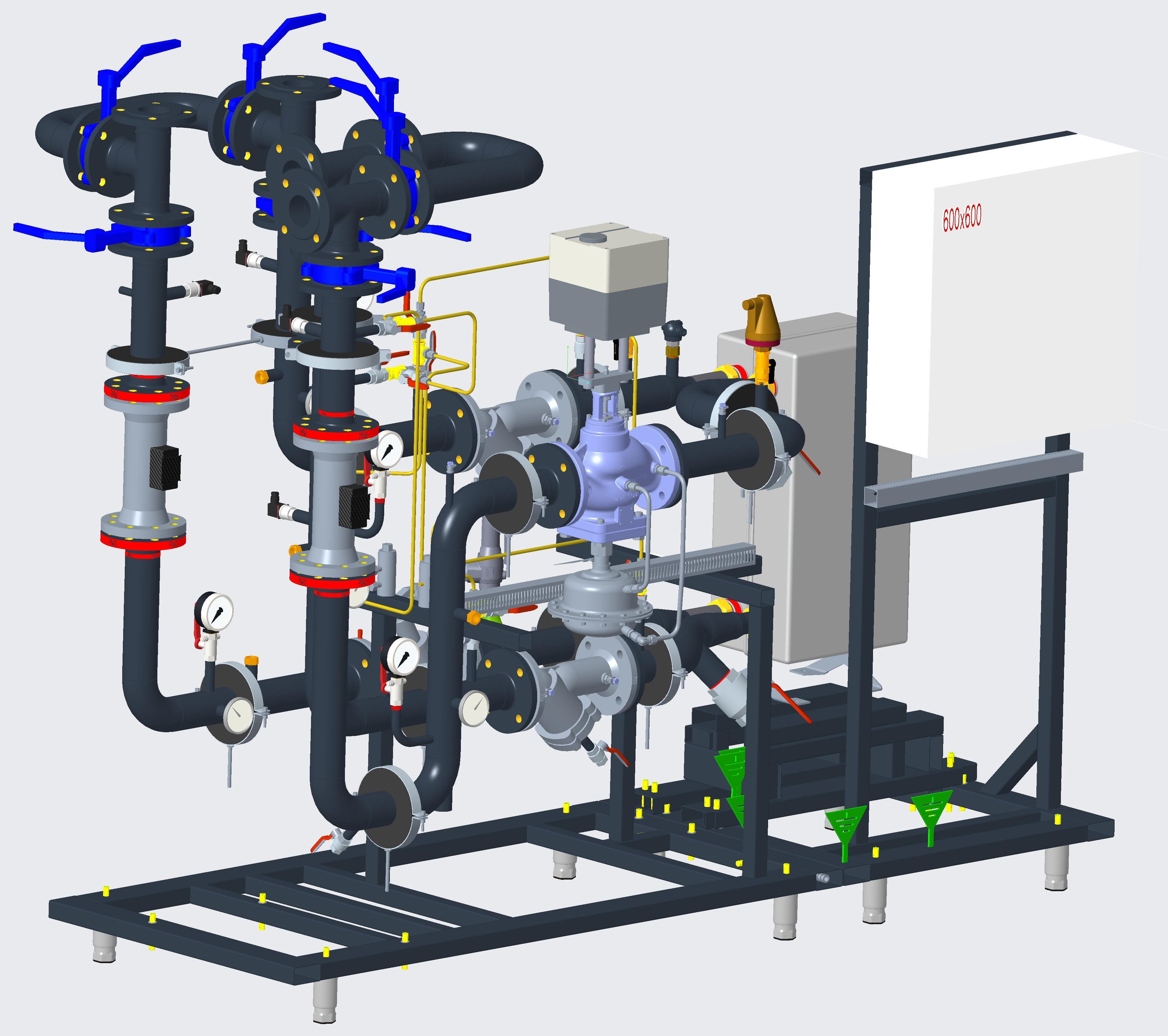

200B0032 Danfoss: DSP1-MOD@-IB050-050-0000-MD-GB-PN16-0360, 360 kW, ECL310, 16bar, 120°C
Allowed temperature [˚C] [Min]
2 °C
Application type
Indirect heating
Approval
CE
Approval standard
CE
Category name
Indirect heating substations
CE evaluated
Yes
Cover material
Without
Cover option
No
Depth without cover [mm]
790 mm
Description
DSP1-MOD@-IB050-050-0000-MD-GB-PN16-0360, 360 kW, ECL310, 16bar, 120°C
Design
standing
DH pipe size
DN50
Differential pressure primary [bar] [Max]
12 bar
Fitting Piece
heatmeter
Flow primary [m3/h] [Max]
10.5 m³/h
Flow secondary [m3/h] [Max]
10.5 m³/h
HE pipe size
DN50
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
1945 mm
HEX heating alloy
1.4404
HEX heating brazed/gasketed material
Brazed copper
Manufacturer's name
Danfoss
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
16 bar
Pressure primary [bar] [Max]
16 bar
Pressure secondary [bar] [Max]
10 bar
Product group
Substations
Sensor type heatmeter
pocket 6mm
Supply temperature construction [˚C]
120 °C
Supply voltage [V] AC
230 V
Type
DSP MOD
Width with cover [mm]
2020 mm
