200B0042
Part Number: 200B0042
Product Information
Extended Description

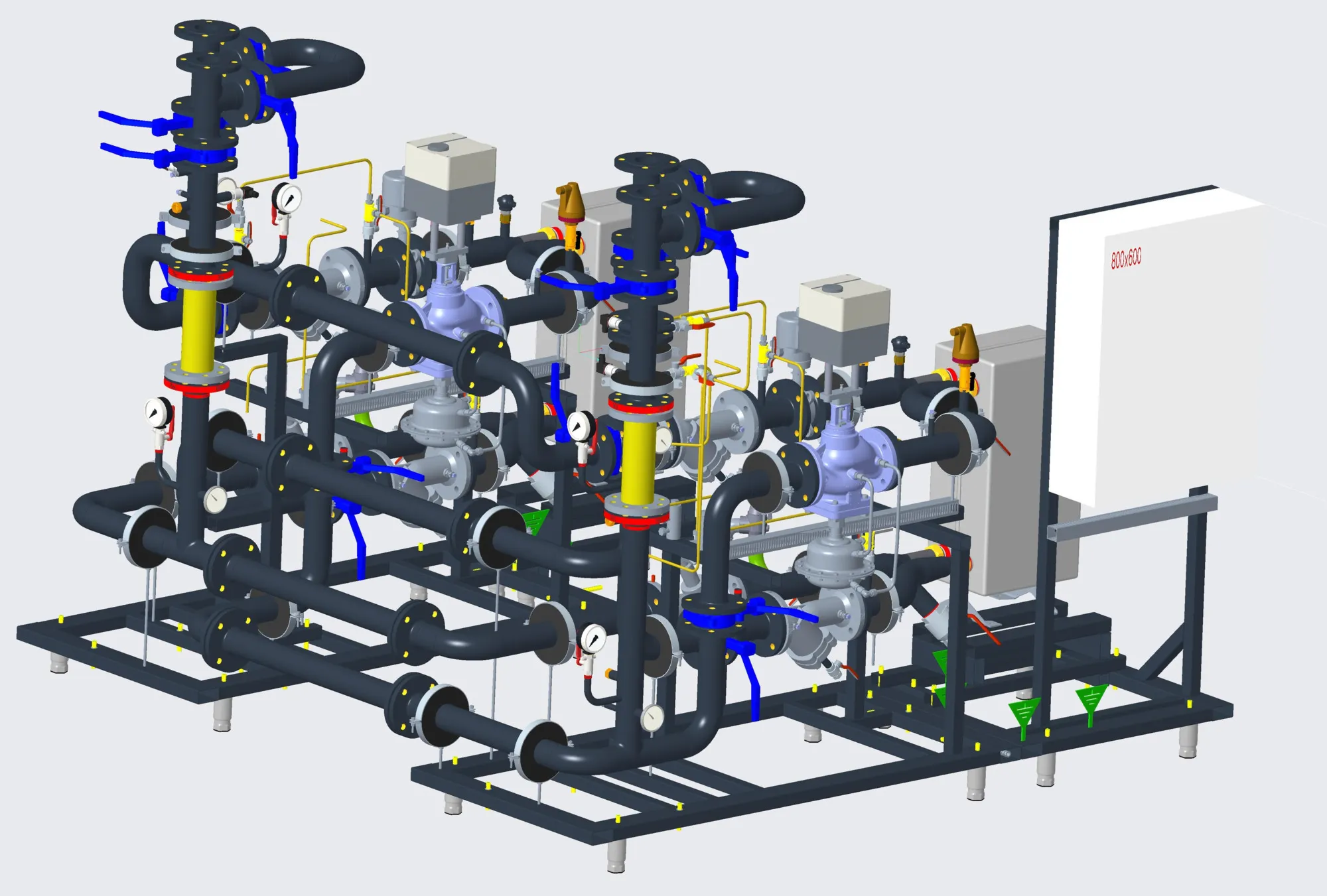

200B0042 Danfoss: DSP2-MOD@-IB100-100-0000-MD-GB-PN16-0952, 952 kW, ECL310, 16bar, 120°C
Allowed temperature [˚C] [Min]
2 °C
Application type
Indirect heating
Approval
CE
Approval standard
CE
Category name
Indirect heating substations
CE evaluated
Yes
Cover material
Without
Cover option
No
Depth without cover [mm]
1160 mm
Description
DSP2-MOD@-IB100-100-0000-MD-GB-PN16-0952, 952 kW, ECL310, 16bar, 120°C
Design
standing
Differential pressure primary [bar] [Max]
12 bar
Fitting Piece
heatmeter
Flow primary [m3/h] [Max]
27.4 m³/h
Flow secondary [m3/h] [Max]
27.4 m³/h
HE connection size
DN100
HE pipe size
DN100
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
2145 mm
HEX heating alloy
1.4404
HEX heating brazed/gasketed material
Gasketed EPDM
Manufacturer's name
Danfoss
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
16 bar
Pressure primary [bar] [Max]
16 bar
Pressure secondary [bar] [Max]
10 bar
Product group
Substations
Sensor type heatmeter
pocket 6mm
Supply temperature construction [˚C]
120 °C
Supply voltage [V] AC
230 V
Type
DSP MOD
Width without cover [mm]
2850 mm
