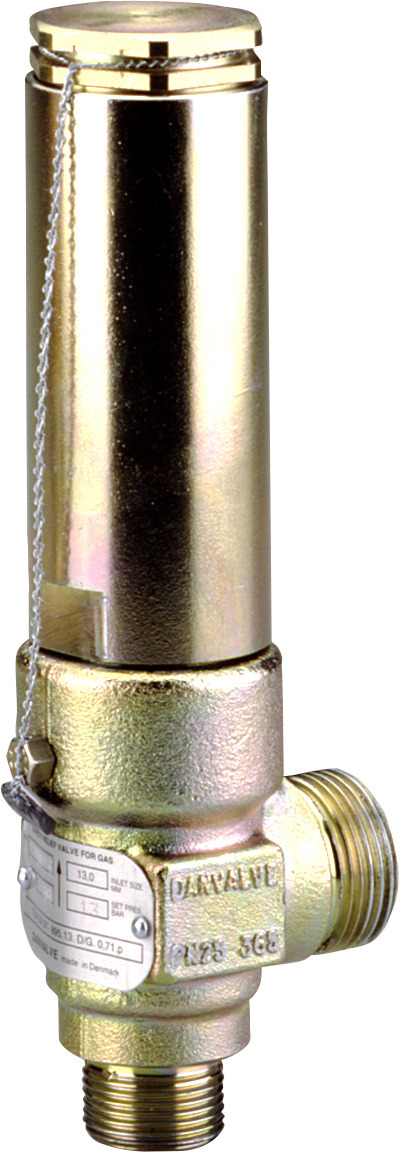

2416+150

Part Number: 2416+150
2416+150
Manufacturer
Danfoss
Part number
2416+150
Category

Product Information

Extended Description

2416+150 Danfoss: Pressure setting [bar]: 13, Connection type: G, Inlet connection size [in]: 1 1/4 in, Outlet connection size [in]: 1 1/2 in, Pressure certificate: Danfoss certificate included
Gross weight
4.018 Kilogram
Net weight
3.974 Kilogram
Volume
3.952 Liter
EAN
5702428193504
Approval
CE,EAC,TS,UKCA
CE evaluated
Yes
Certified Coef of Disc
0.54 kg
China RoHS compliance
Out of scope
Comments
0
Connection Internal/External
External
Connection size [in]
3/4 in
Connection size [mm]
20 mm
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Direction
Angleway
EU RoHS compliance
Out of scope
Flow area [in2]
0.394 in=C2=B2
Flow area [mm2]
254 mm=C2=B2
Flow diameter [in]
0.709 in
Flow diameter [mm]
18 mm
Fluid Group
1
Inlet connection size [in]
1 1/4 in
Lift [mm]
4 mm
Nominal diameter
DN 25
Outlet connection size [in]
1 1/2 in
Packing format
Single pack
PED category
IV
Pressure certificate
Danfoss certificate included
Pressure setting [bar]
13 bar
Pressure setting [psig]
189 psig
Product description
Safety Relief Valve
Product group
Safety relief valves
Product Name Description
Safety relief valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234yf,R1234ze(E),R125,R134a,R152a,R170,R22,R227ea,R236fa,R245fa,R290,R32,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R407H,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R452C,R454A,R454B,R454C,R455A,R463A,R502,R507A,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744
Temperature range [=C2=B0C] [max]
100 =C2=B0C
Temperature range [=C2=B0C] [min]
-30 =C2=B0C
Temperature range [=C2=B0F] [max]
212 =C2=B0F
Temperature range [=C2=B0F] [min]
-22 =C2=B0F
Type
SFV 20
UK RoHS compliance
Out of scope
148F3020
Spare part, SFV 20, Flange and gasket set
2453+082
Repair kit, Repair kit
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Safety relief valves - Industrial Refrigeration product group catalogue Safety relief valves, type SFV 20-25 Safety relief valves - Valves Tightness and Service needs Safety relief valves-SFV 20-25, SFA 15, SFA 15-50 Danfoss EU 033F0685.AX Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 Danfoss UK 033F4026.AB Safety relief valve, SFV 20
