267B0001
Part Number: 267B0001
Product Information
Extended Description

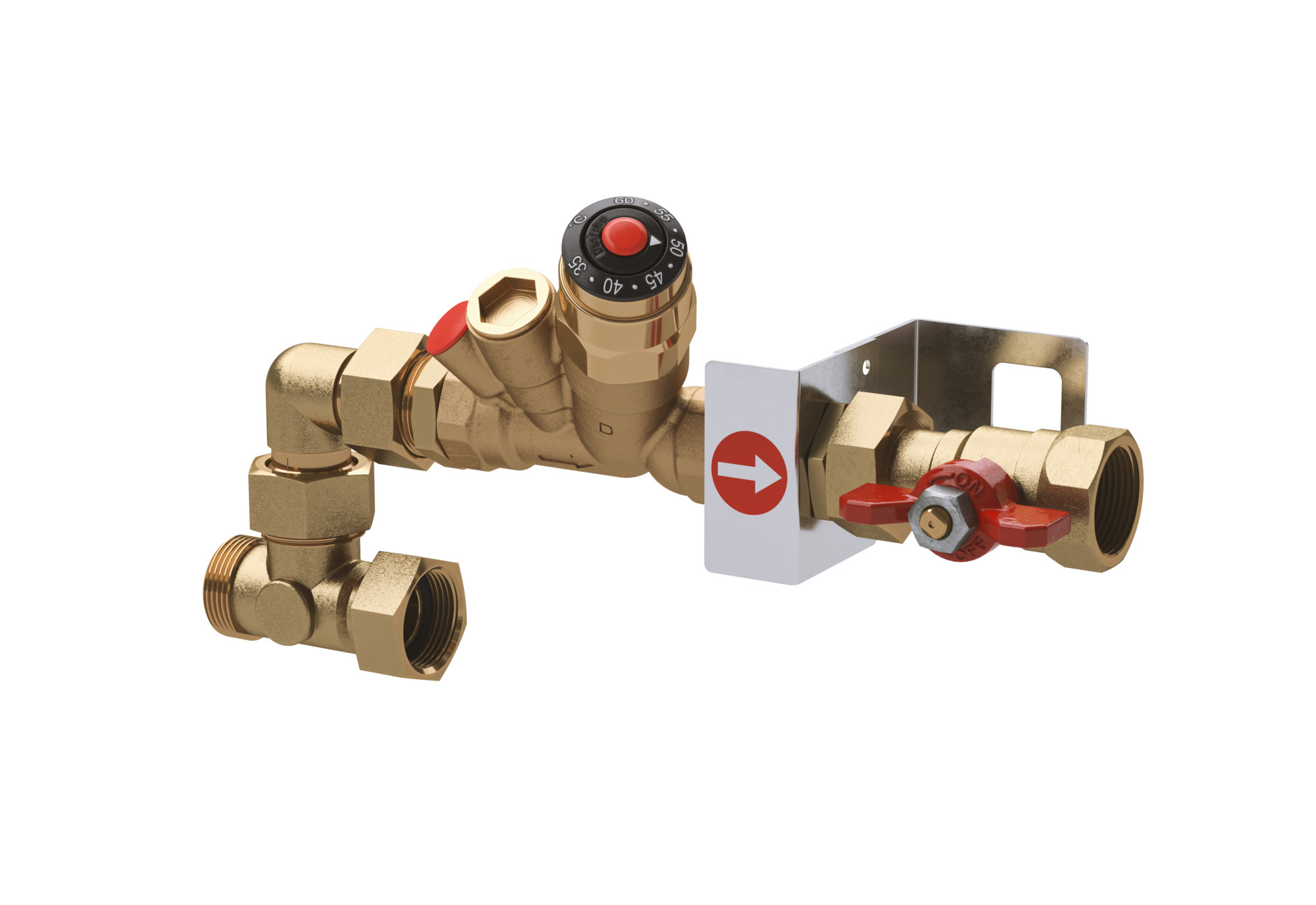

267B0001 Danfoss: Circulation set for modular metering unit, prepared to be mounted in recess box
Gross weight
2.5 Kilogram
Net weight
1.5 Kilogram
Volume
2.5 Liter
EAN
5702424626884
Application type
Metering unit
CE evaluated
Out of scope
Connection types
Int. thread
Description
Circulation set for modular metering unit, prepared to be mounted in recess box
Differential pressure over the valve [kPa] [Max]
100 KPa
Disinfection function
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Factory setting [°C]
50 °C
Flow max at dp=10kpa [m3/h]
1.5 mÂł/h
In scope of WEEE
No
Integrated non-return valve
Yes
Media temperature [°C] [Max]
100 °C
Pressure nominal primary [bar]
10 bar
Product group
Metering unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Temperature setting range [°C] [Max]
60 °C
Temperature setting range [°C] [Min]
35 °C
Type
Modular Metering Unit
267B0005
Modular Metering Unit
267B0006
Modular Metering Unit
