267B0002
Part Number: 267B0002
Product Information
Extended Description

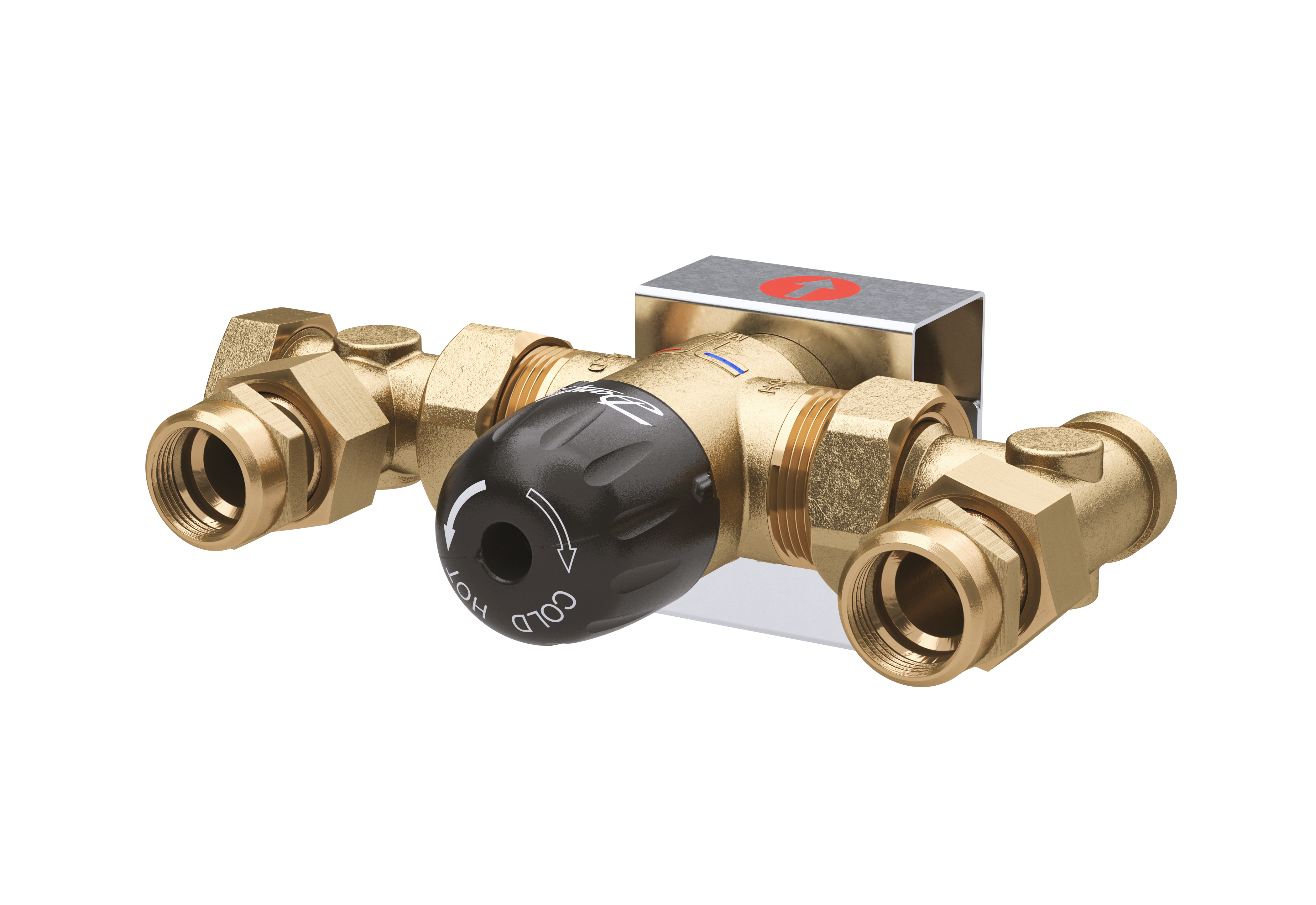

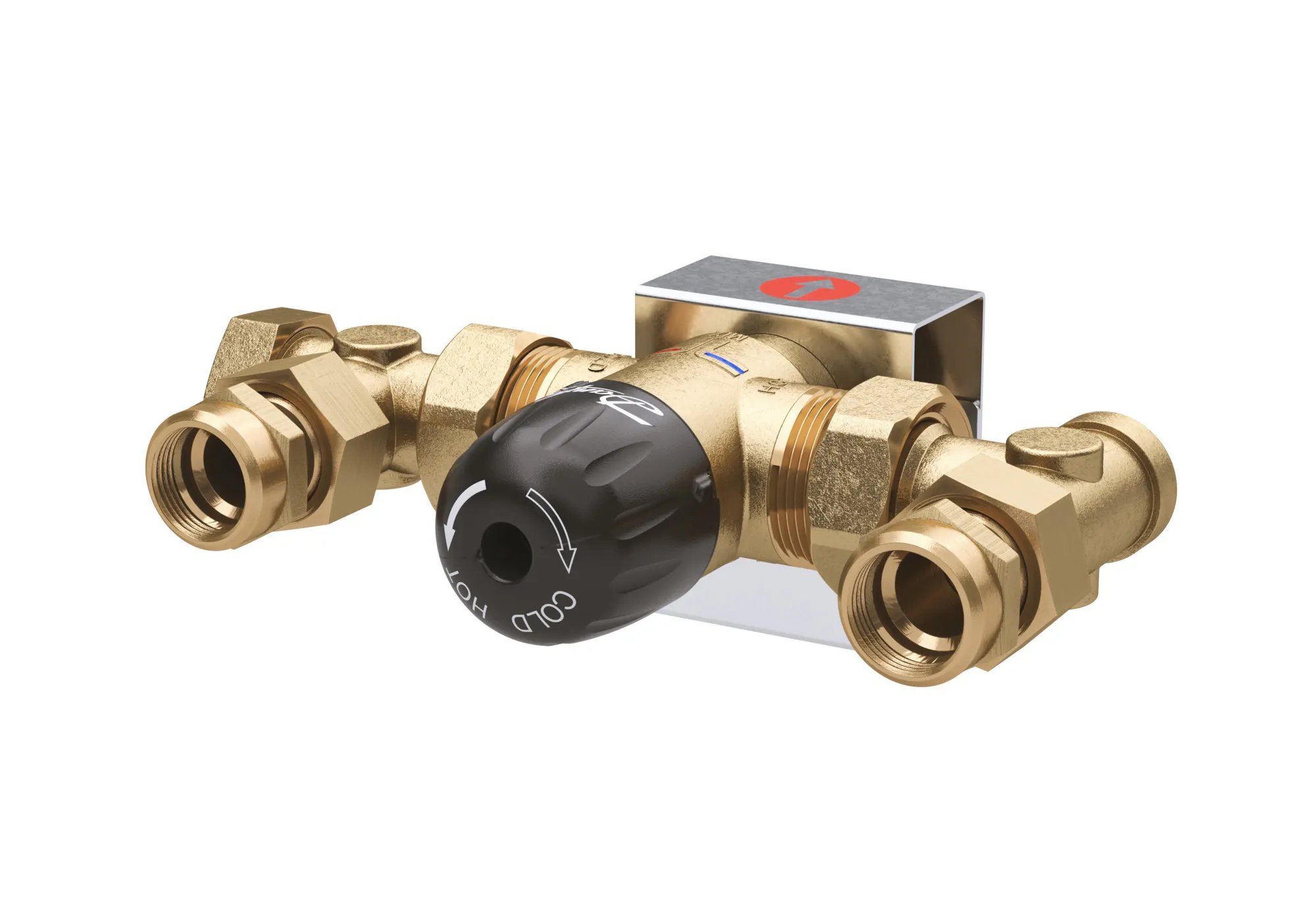

267B0002 Danfoss: Mixing set for modular metering unit, prepared to be mounted in recess box
Gross weight
2.4 Kilogram
Net weight
1.4 Kilogram
Volume
2.28 Liter
EAN
5702424626891
Application type
Metering unit
CE evaluated
Out of scope
Connection types
Int. thread
Description
Mixing set for modular metering unit, prepared to be mounted in recess box
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Factory setting [°C]
50 °C
In scope of WEEE
No
Integrated non-return valve
Yes
Kvs value with non-return valve [m3/h]
2.1 m³/h
Media temperature [°C] [Max]
90 °C
Pressure class
PN 10
Pressure nominal primary [bar]
10 bar
Product group
Metering unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [˚C]
90 °C
Temperature setting range [°C] [Max]
70 °C
Temperature setting range [°C] [Min]
10 °C
Type
Modular Metering Unit
Valve body material
DZR brass + antilimescale treatment
Valve size
DN 20
267B0005
Modular Metering Unit
267B0006
Modular Metering Unit
