267B0003
Part Number: 267B0003
Product Information
Extended Description

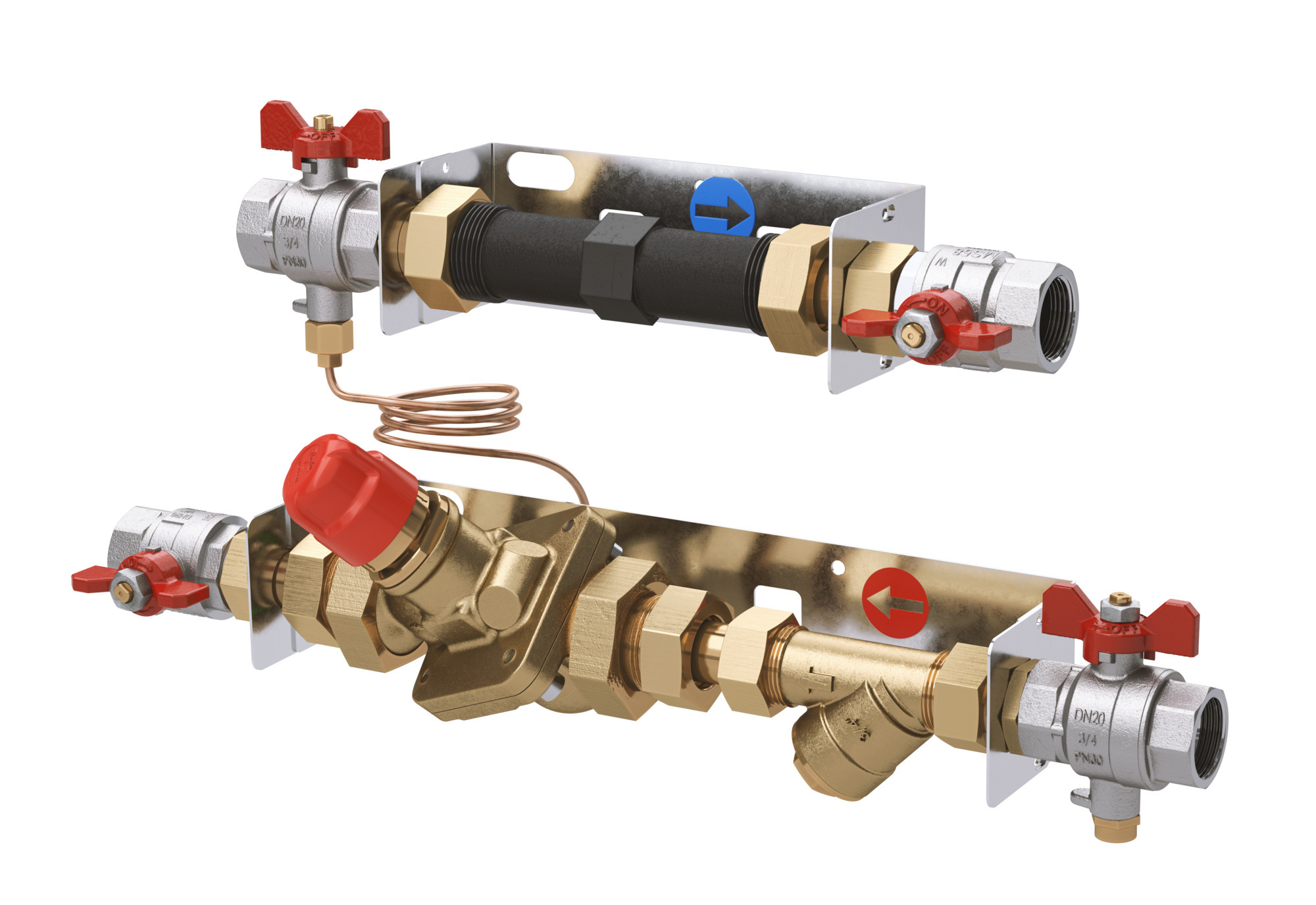

267B0003 Danfoss: Heating/cooling module with AB-PM, including supply and return lines, spacer for heat/cool meter, prepared to be mounted in recess box
Gross weight
5.25 Kilogram
Net weight
4.25 Kilogram
Volume
16.875 Liter
EAN
5702424626907
Application type
Metering unit
CE evaluated
Out of scope
Connection types
Int. thread
Description
Heating/cooling module with AB-PM, including supply and return lines, spacer for heat/cool meter, prepared to be mounted in recess box
Differential pressure [kPa] [Max]
400 KPa
Differential pressure [kPa] [Min]
28 KPa
Differential pressure setting [kPa] [Max]
25 KPa
Differential pressure setting [kPa] [Min]
10 KPa
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow max at dp=10kpa [m3/h]
1.8 mÂł/h
In scope of WEEE
No
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
-10 °C
Meetering
Prepared for energy meter
Pressure class
PN 16
Pressure nominal primary [bar]
10 bar
Pressure version
High pressure
Product group
Metering unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
95 °C
Type
Modular Metering Unit
Valve body material
DZR brass CuZn36Pb2AS (CW 602N)
Valve size
DN 25
