267B0004
Part Number: 267B0004
Product Information
Extended Description

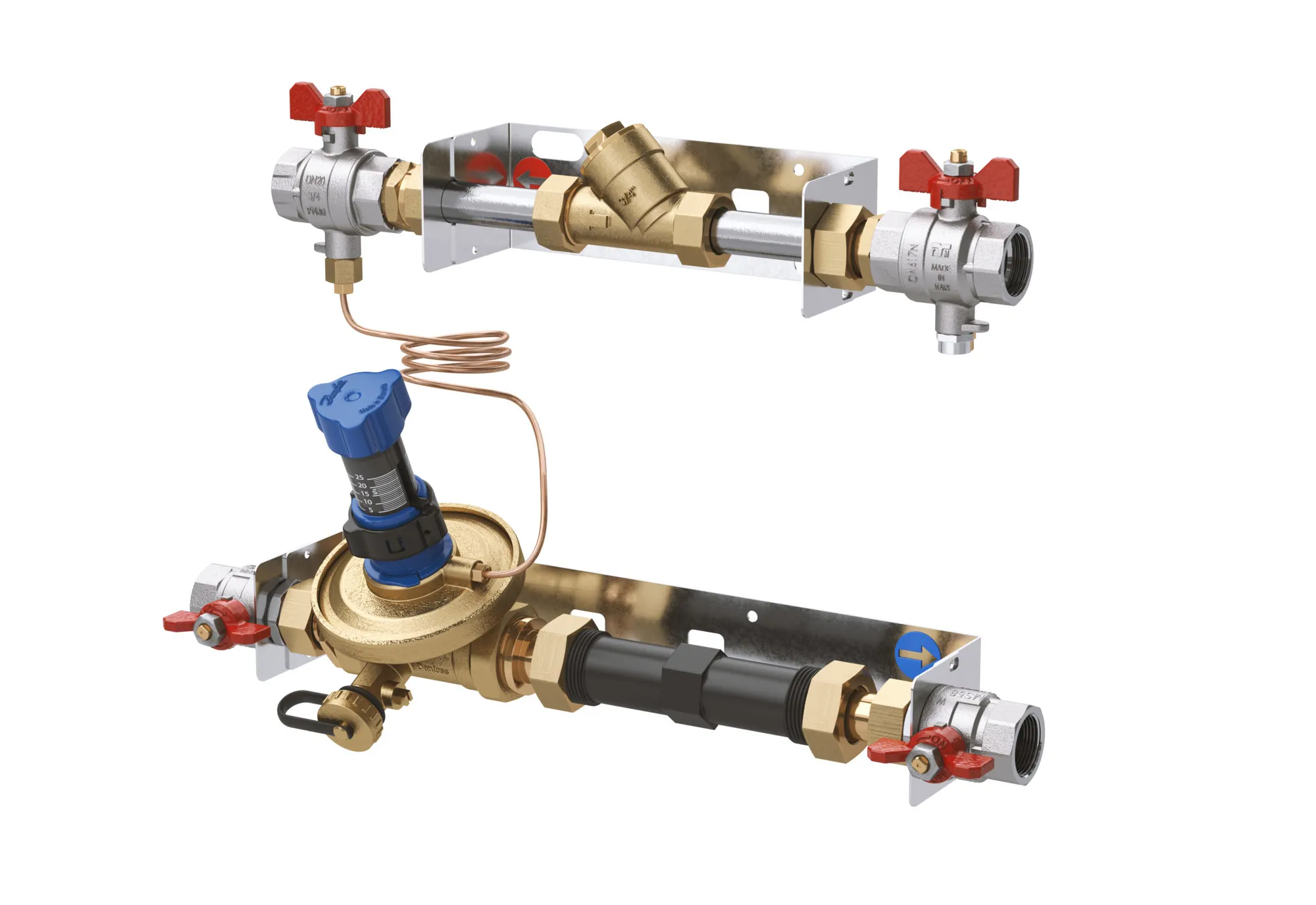

267B0004 Danfoss: Heating/cooling set with ASV-PV include supply and return line, space for metering, prepared to be mounted in recess box
Gross weight
4 Kilogram
Net weight
3.5 Kilogram
Volume
16.875 Liter
EAN
5702424626914
Application type
Metering unit
CE evaluated
Out of scope
Connection types
Int. thread
Description
Heating/cooling set with ASV-PV include supply and return line, space for metering, prepared to be mounted in recess box
Differential pressure over the valve [kPa] [Max]
250 KPa
Differential pressure over the valve [kPa] [Min]
60 KPa
Differential pressure setting [kPa] [Min]
20 KPa
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Factory setting [kPa]
30 KPa
In scope of WEEE
No
Media temperature [°C] [Max]
120 °C
Media temperature [°C] [Min]
0 °C
Meetering
Prepared for energy meter
Pressure class
PN 16
Pressure nominal primary [bar]
10 bar
Product group
Metering unit
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [˚C]
95 °C
Type
Modular Metering Unit
Valve body material
Brass
Valve size
DN 25
267B0005
Modular Metering Unit
267B0006
Modular Metering Unit
