640U4901
Part Number: 640U4901
Product Information
Extended Description

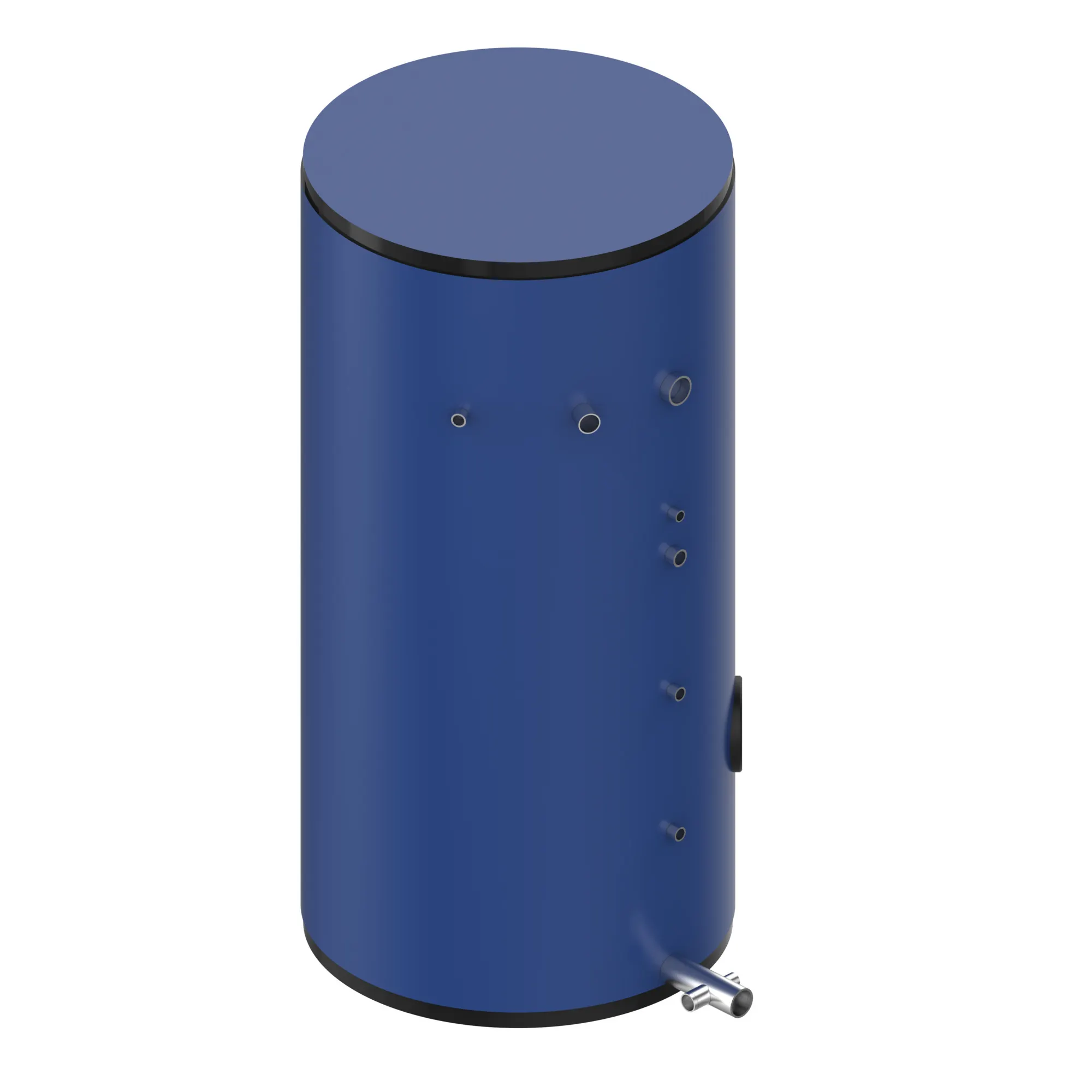

640U4901 Danfoss: 200 L, Insulation material: EPS with laminated fleece
Gross weight
65 Kilogram
Net weight
65 Kilogram
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Category name
Buffer tanks
CE evaluated
Yes
Circulation connection size
Rp3/4"
Circulation connection type
internal thread
Circulation pipe size
DN20
Connection direction primary and secondary
horizontal
Contain batteries
No
Cover material
EPS+Fleece
Depth with cover [mm]
650 mm
Depth without cover [mm]
450 mm
Description
SE-0200-1 AF
Design
standing
DHW connection size
Rp1 1/2"
DHW connection type
internal thread
DHW pipe size
DN40
Height with cover [mm]
1595 mm
Height without cover [mm]
1595 mm
Hot water tank volume [l]
200 L
Insulation material
EPS with laminated fleece
Package depth [mm]
750 mm
Package height [mm]
1750 mm
Package width [mm]
750 mm
PED category
§ 4.3
Pressure nominal secondary [bar]
10 bar
Product group
Accessories DHW
REACH Candidate List substances
No
Supply temperature construction [˚C]
95 °C
Supply temperature recommended [˚C]
70 °C
Tank material
1.4571
Type
Tanks, buffers and heaters
Width with cover [mm]
650 mm
Width without cover [mm]
450 mm
