640U4927
Part Number: 640U4927
Product Information
Extended Description

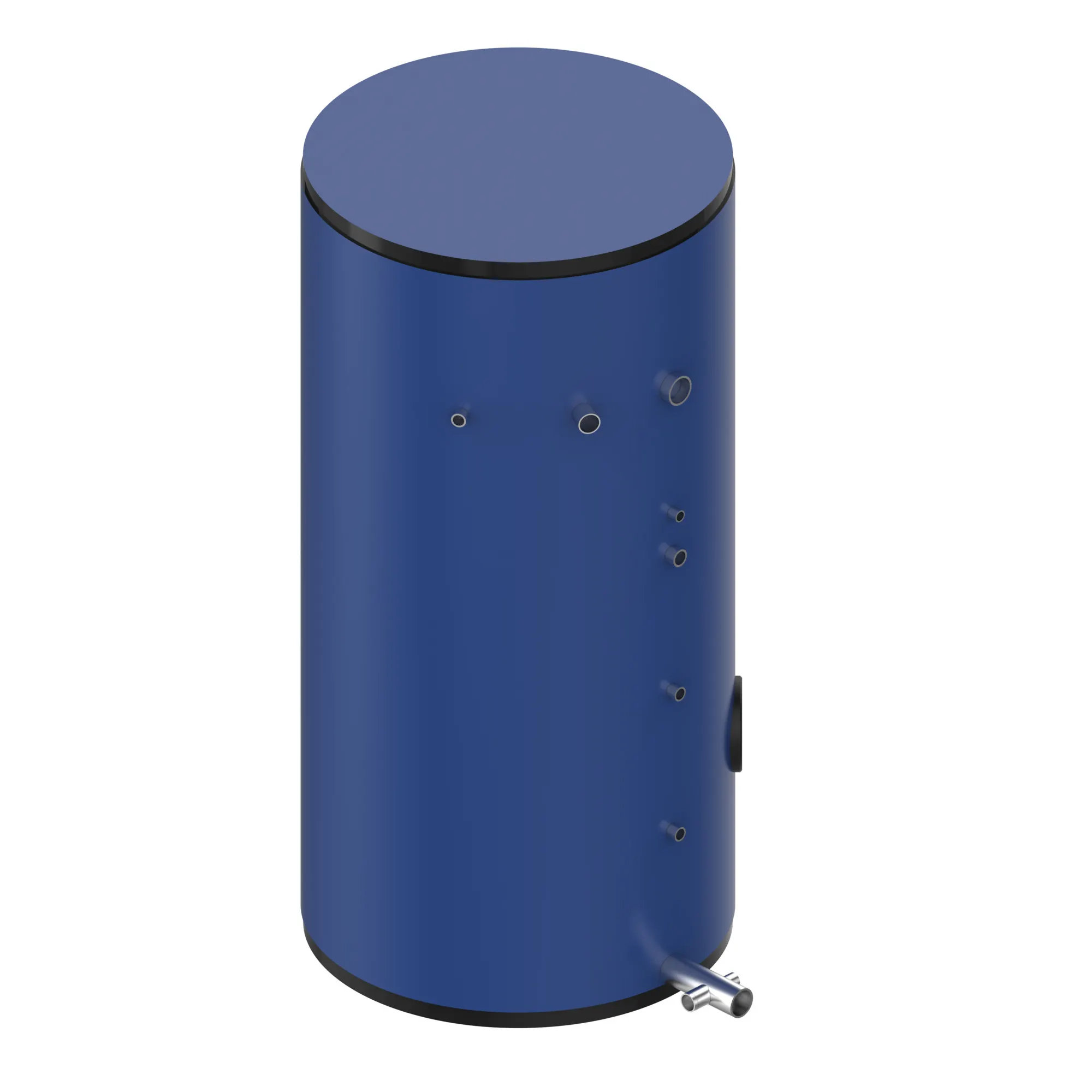

640U4927 Danfoss: 500 L, Insulation material: EPS with laminated fleece
Gross weight
102 Kilogram
Net weight
102 Kilogram
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Category name
Buffer tanks
CE evaluated
Yes
Circulation connection size
Rp1"
Circulation connection type
internal thread
Circulation pipe size
DN25
Connection direction primary and secondary
horizontal
Contain batteries
No
Cover material
EPS+Fleece
Depth with cover [mm]
850 mm
Depth without cover [mm]
650 mm
Description
SES 500
Design
standing
DHW connection size
Rp1 1/2"
DHW connection type
internal thread
DHW pipe size
DN40
Height with cover [mm]
1765 mm
Height without cover [mm]
1765 mm
Hot water tank volume [l]
500 L
Insulation material
EPS with laminated fleece
Package depth [mm]
900 mm
Package height [mm]
1885 mm
Package width [mm]
900 mm
PED category
§ 4.3
Pressure nominal secondary [bar]
10 bar
Product group
Accessories DHW
REACH Candidate List substances
No
Supply temperature construction [˚C]
95 °C
Supply temperature recommended [˚C]
70 °C
Tank material
1.4571
Type
Tanks, buffers and heaters
Width with cover [mm]
850 mm
Width without cover [mm]
650 mm
