640U4932
Part Number: 640U4932
Product Information
Extended Description

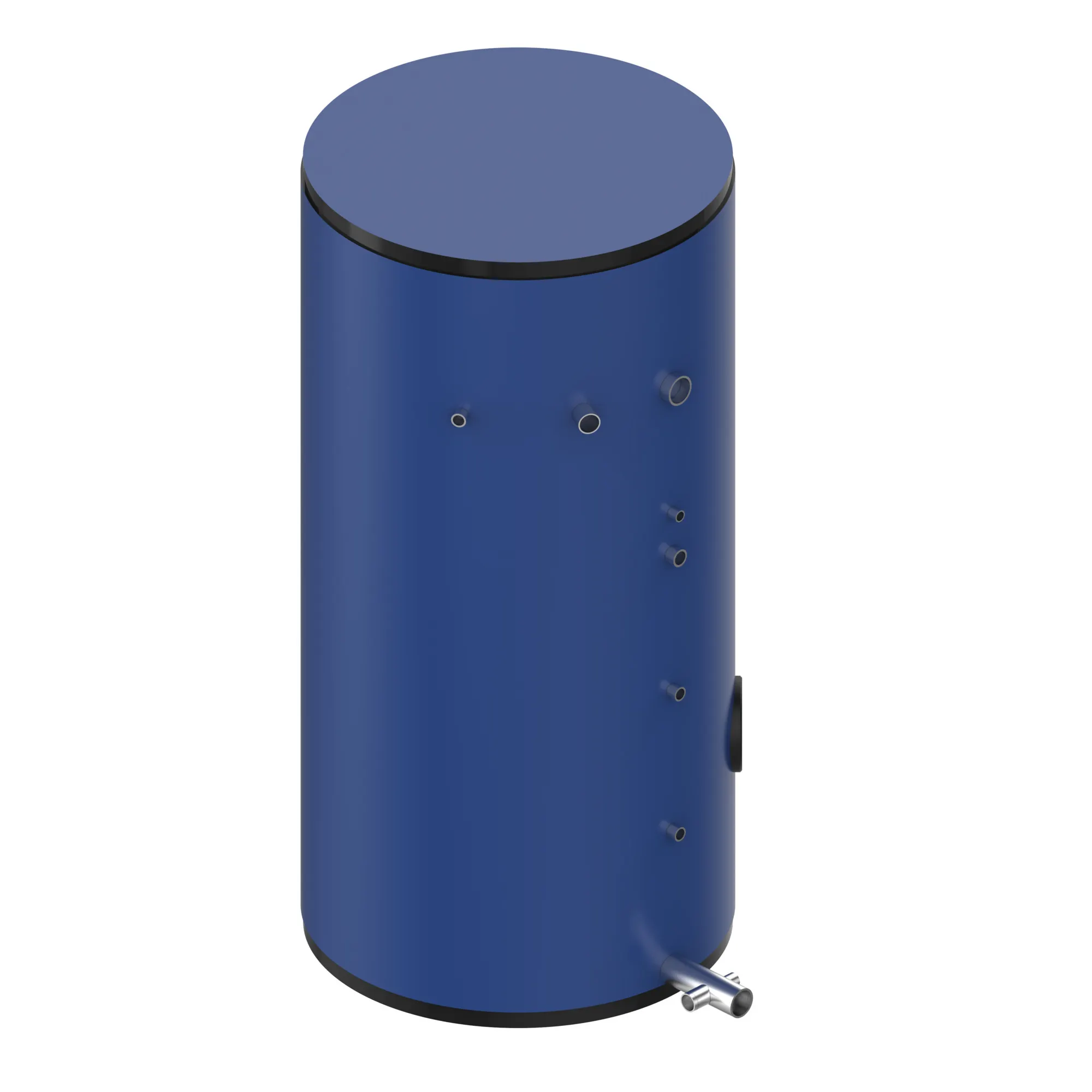

640U4932 Danfoss: 125 L, Insulation material: EPS with laminated fleece
Gross weight
40 Kilogram
Net weight
40 Kilogram
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Capacity [kW]
18 kW
Category name
DHW heaters
CE evaluated
Yes
Circulation connection size
Rp3/4"
Circulation connection type
internal thread
Circulation pipe size
DN20
Connection direction primary and secondary
horizontal
Contain batteries
No
Cover material
EPS+Fleece
Delta P primary without heat meter [bar] [Min]
0.03 bar
Depth with cover [mm]
700 mm
Depth without cover [mm]
500 mm
Description
SE-RG0125
Design
standing
DH connection size
R1"
DH connection type
external thread
DH pipe size
DN25
DHW connection size
Rp1"
DHW connection type
internal thread
DHW pipe size
DN25
Flow primary [m3/h] [Max]
0.96 m³/h
HE connection size
R1"
HE connection type
external thread
HE pipe size
DN25
Height with cover [mm]
995 mm
Height without cover [mm]
995 mm
HEX heating alloy
1.4571
Hot water tank volume [l]
125 L
Insulation material
EPS with laminated fleece
Number of households [Max]
2
Package depth [mm]
750 mm
Package height [mm]
1145 mm
Package width [mm]
750 mm
PED category
I
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Product group
Accessories DHW
REACH Candidate List substances
No
Supply temperature construction [˚C]
95 °C
Supply temperature recommended [˚C]
70 °C
Tank material
1.4571
Type
Tanks, buffers and heaters
Width with cover [mm]
700 mm
Width without cover [mm]
500 mm
