640U4936
Part Number: 640U4936
Product Information
Extended Description

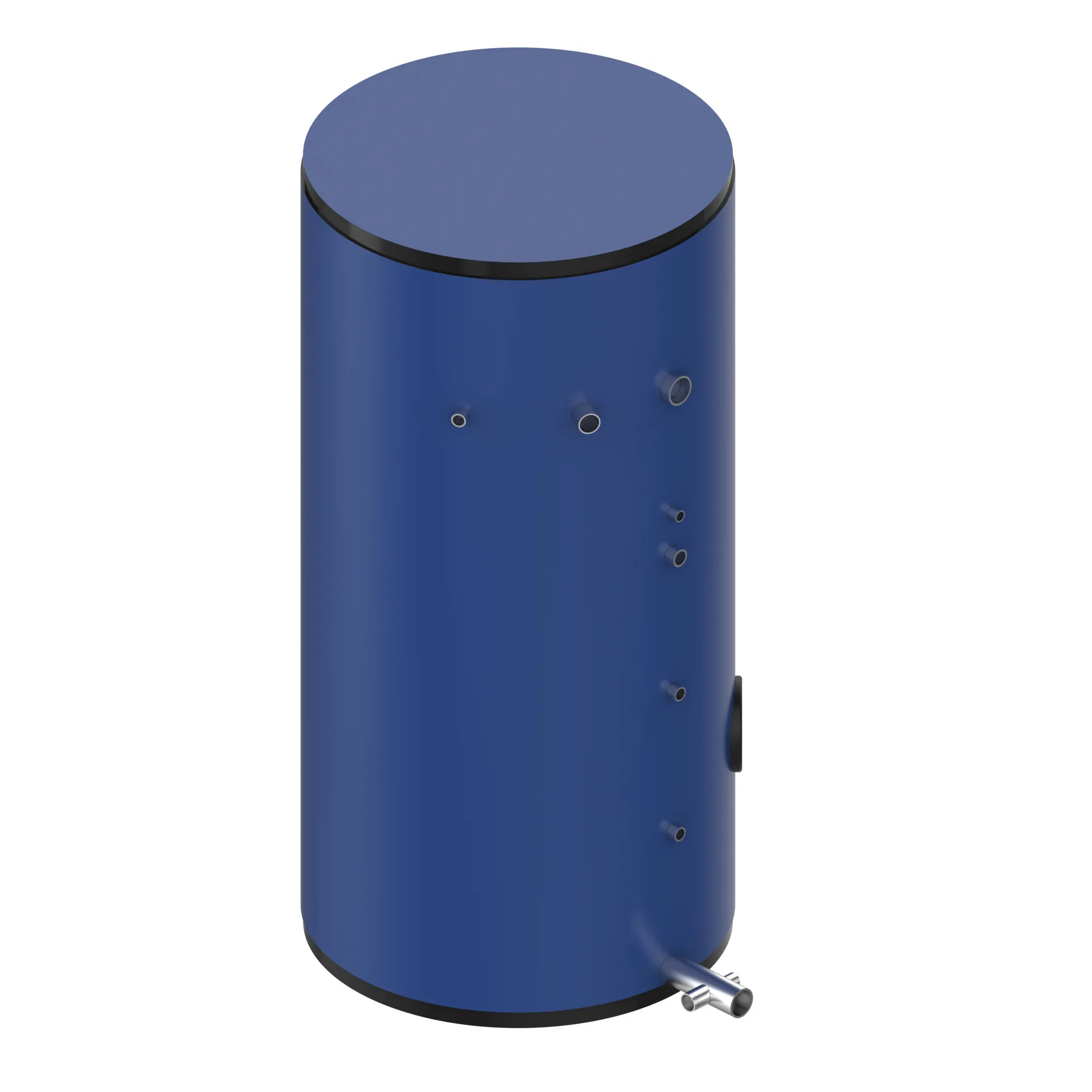

640U4936 Danfoss: 500 L, Insulation material: EPS with laminated fleece
Gross weight
95 Kilogram
Net weight
95 Kilogram
Allowed temperature [ËšC] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Capacity [kW]
42 kW
Category name
DHW heaters
CE evaluated
Yes
Circulation connection size
Rp3/4"
Circulation connection type
internal thread
Circulation pipe size
DN20
Connection direction primary and secondary
horizontal
Contain batteries
No
Cover material
EPS+Fleece
Delta P primary without heat meter [bar] [Min]
0.19 bar
Depth with cover [mm]
850 mm
Depth without cover [mm]
650 mm
Description
SE-RG0500
Design
standing
DH connection size
R1"
DH connection type
external thread
DH pipe size
DN25
DHW connection size
Rp1 1/4"
DHW connection type
internal thread
DHW pipe size
DN32
Flow primary [m3/h] [Max]
0.98 mÂł/h
HE connection size
R1"
HE connection type
external thread
HE pipe size
DN25
Height with cover [mm]
1745 mm
Height without cover [mm]
1745 mm
HEX heating alloy
1.4571
Hot water tank volume [l]
500 L
Insulation material
EPS with laminated fleece
Number of households [Max]
20
Package depth [mm]
900 mm
Package height [mm]
1865 mm
Package width [mm]
900 mm
PED category
II
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Product group
Accessories DHW
REACH Candidate List substances
No
Supply temperature construction [ËšC]
95 °C
Supply temperature recommended [ËšC]
70 °C
Tank material
1.4571
Type
Tanks, buffers and heaters
Width with cover [mm]
850 mm
Width without cover [mm]
650 mm
