640U4937
Part Number: 640U4937
Product Information
Extended Description

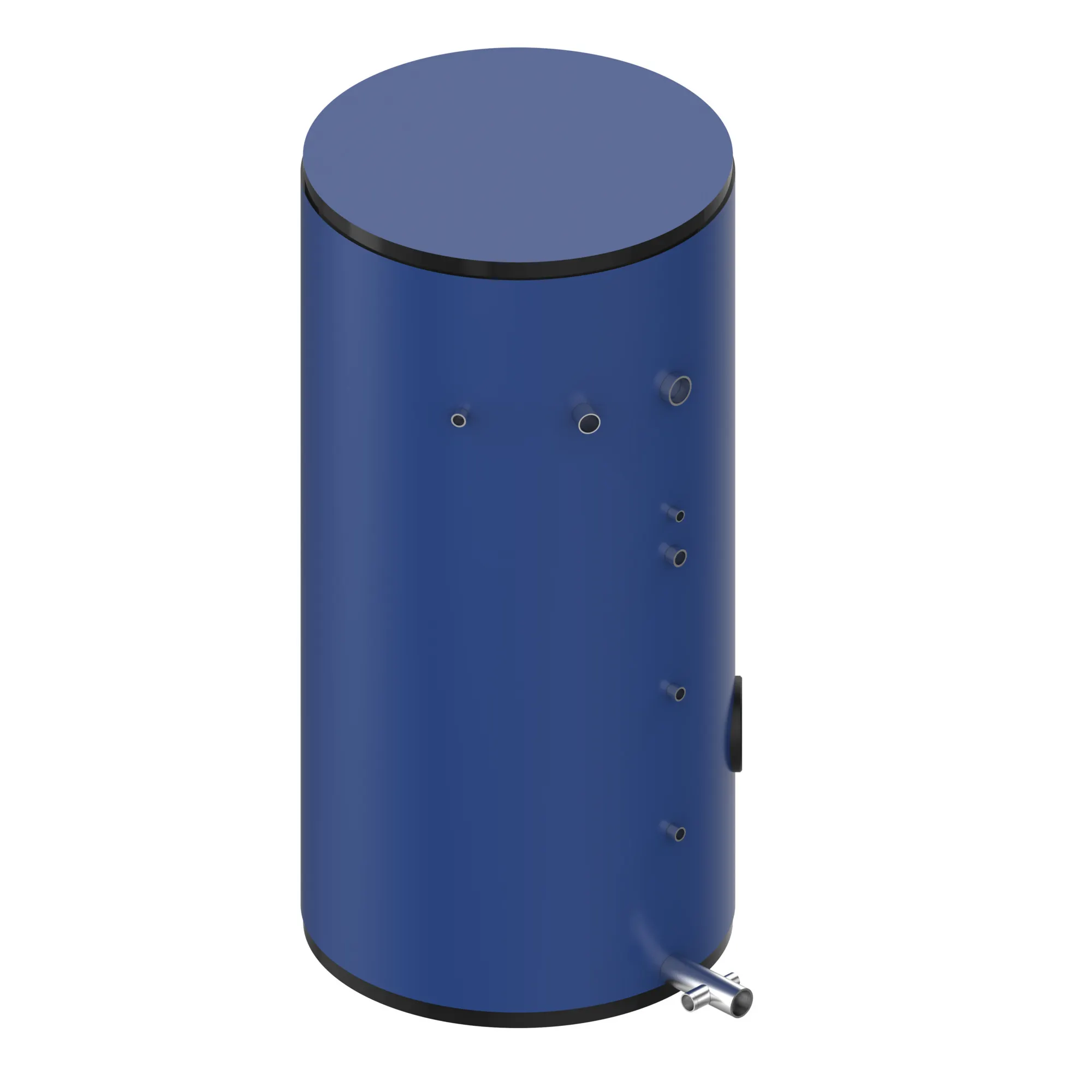

640U4937 Danfoss: 750 L, Insulation material: EPS with laminated fleece
Gross weight
145 Kilogram
Net weight
145 Kilogram
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Capacity [kW]
55 kW
Category name
DHW heaters
CE evaluated
Yes
Circulation connection size
Rp1"
Circulation connection type
internal thread
Circulation pipe size
DN25
Connection direction primary and secondary
horizontal
Contain batteries
No
Cover material
EPS+Fleece
Delta P primary without heat meter [bar] [Min]
0.11 bar
Depth with cover [mm]
1000 mm
Depth without cover [mm]
800 mm
Description
SE-RG0750
Design
standing
DH connection size
R1"
DH connection type
external thread
DH pipe size
DN25
DHW connection size
Rp2"
DHW connection type
internal thread
DHW pipe size
DN50
Flow primary [m3/h] [Max]
1.2 m³/h
HE connection size
R1"
HE connection type
external thread
HE pipe size
DN25
Height with cover [mm]
1830 mm
Height without cover [mm]
1830 mm
HEX heating alloy
1.4571
Hot water tank volume [l]
750 L
Insulation material
EPS with laminated fleece
Number of households [Max]
29
Package depth [mm]
1100 mm
Package height [mm]
1950 mm
Package width [mm]
1100 mm
PED category
II
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Product group
Accessories DHW
REACH Candidate List substances
No
Supply temperature construction [˚C]
95 °C
Supply temperature recommended [˚C]
70 °C
Tank material
1.4571
Type
Tanks, buffers and heaters
Width with cover [mm]
1000 mm
Width without cover [mm]
800 mm
