640U4938
Part Number: 640U4938
Product Information
Extended Description

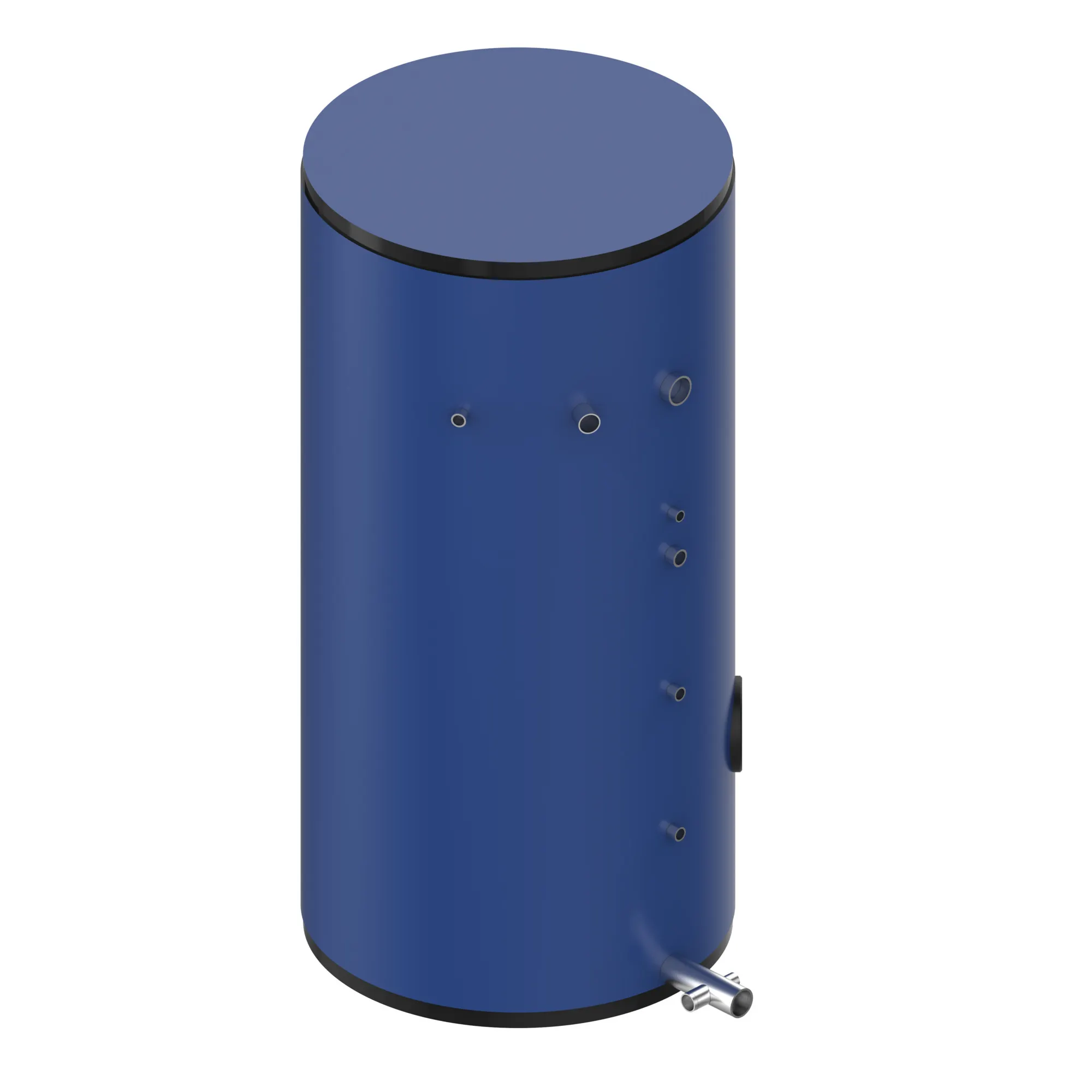

640U4938 Danfoss: 1000 L, Insulation material: EPS with laminated fleece
Gross weight
180 Kilogram
Net weight
180 Kilogram
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Capacity [kW]
59 kW
Category name
DHW heaters
CE evaluated
Yes
Circulation connection size
Rp3/4"
Circulation connection type
internal thread
Circulation pipe size
DN20
Connection direction primary and secondary
horizontal
Contain batteries
No
Cover material
EPS+Fleece
Delta P primary without heat meter [bar] [Min]
0.11 bar
Depth with cover [mm]
1050 mm
Depth without cover [mm]
850 mm
Description
SE-R 1000
Design
standing
DH connection size
R1 1/4"
DH connection type
external thread
DH pipe size
DN32
DHW connection size
Rp2"
DHW connection type
internal thread
DHW pipe size
DN50
Flow primary [m3/h] [Max]
3.56 m³/h
HE connection size
R1 1/4"
HE connection type
external thread
HE pipe size
DN32
Height with cover [mm]
2075 mm
Height without cover [mm]
2075 mm
HEX heating alloy
1.4571
Hot water tank volume [l]
1000 L
Insulation material
EPS with laminated fleece
Number of households [Max]
36
Package depth [mm]
1100 mm
Package height [mm]
2195 mm
Package width [mm]
1100 mm
PED category
II
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Product group
Accessories DHW
REACH Candidate List substances
No
Supply temperature construction [˚C]
95 °C
Supply temperature recommended [˚C]
70 °C
Tank material
1.4571
Type
Tanks, buffers and heaters
Width with cover [mm]
1050 mm
Width without cover [mm]
850 mm
