640U4988
Part Number: 640U4988
Product Information
Extended Description

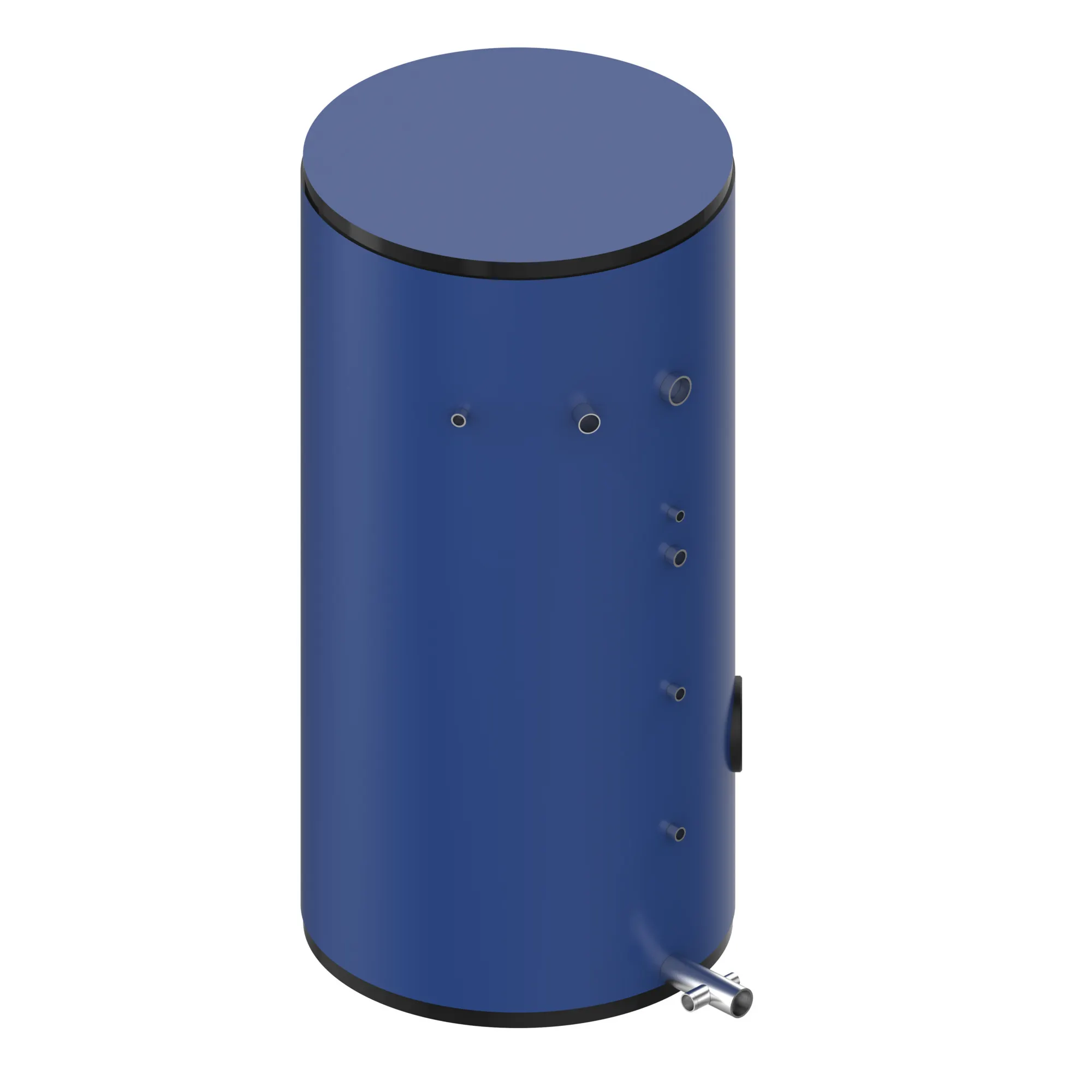

640U4988 Danfoss: 1500 L, Insulation material: EPS+Fleece
Gross weight
231 Kilogram
Net weight
231 Kilogram
Allowed temperature [˚C] [Min]
2 °C
Application type
DHW storage & charging
Approval
CE,PED
Category name
Buffer tanks
CE evaluated
Yes
Connection direction primary and secondary
horizontal
Contain batteries
No
Depth with cover [mm]
1210 mm
Depth without cover [mm]
1110 mm
Description
PSS 1500/6 DN50/PN16
Design
standing
DH connection size
DN50
DH connection type
flange
DH pipe size
DN50
HE connection size
DN50
HE connection type
flange
HE pipe size
DN50
Height with cover [mm]
2130 mm
Height without cover [mm]
2030 mm
Hot water tank volume [l]
1500 L
Insulation material
EPS+Fleece
Package depth [mm]
1200 mm
Package height [mm]
1500 mm
Package width [mm]
2100 mm
PED category
§ 4.3
Pressure nominal primary [bar]
6 bar
Product group
Accessories DHW
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [˚C]
110 °C
Tank material
1.0025
Type
Tanks, buffers and heaters
Width with cover [mm]
1200 mm
Width without cover [mm]
1000 mm
