84701442
Part Number: 84701442
Product Information
Extended Description

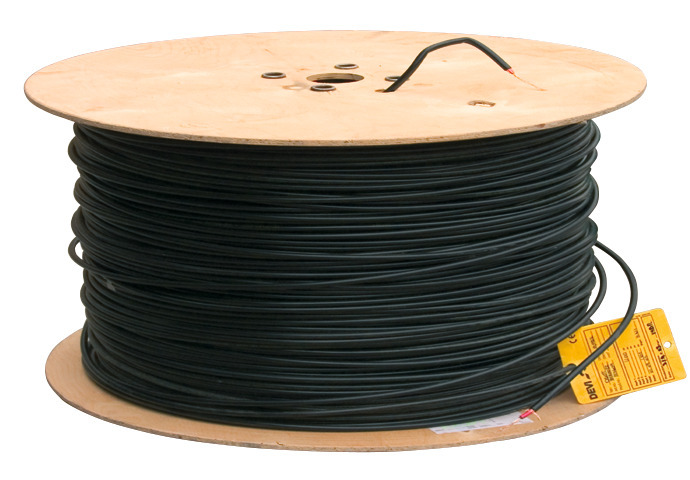

84701442 Danfoss: Cable type: Single conductor, Product version: Cut-to-length, Heating principle: Serial resistive, Application: Sport fields
Gross weight
0.054 Kilogram
Net weight
0.053 Kilogram
EAN
5703466058480
Application
Sport fields
Approval
CE
Bending diameter [mm] [Min]
50 mm
Bi-conductor screen [mm=C2=B2]
16 x 0.4
Cable diameter [mm]
8 mm
Cable on drum
Yes
Cable output [W/m]
25 W/m
Cable resistance [Ohm/m]
0.04 Ohm/m
Cable resistance [Ohm]
0.04
Cable screen
Copper braid
Cable type
Single conductor
CE evaluated
Yes
Certification company
LCIE
China RoHS compliance
Yes
Cold lead
No
Conductor insulation
XLPE
Contain batteries
No
Cut to length
Yes
Deformation strength [N]
2000 N
Description
DEVIsport 0.0400 Ohm/m
Element IP Class
IPX7
EU RoHS compliance
Yes
Flame retardant
Yes
Heating principle
Serial resistive
Installation temperature [=C2=B0C] [Min]
-5 =C2=B0C
Lead free
Yes
Non operating temperature [=C2=B0C] [Max]
90 =C2=B0C
Operating temperature [=C2=B0C] [max]
65 =C2=B0C
Outer sheath
MDPE
Outer sheath colour
Black
Product group
Heating Cables
Product version
Cut-to-length
Pulling strength [N]
1500 N
REACH Candidate List substances
No
Resistance per meter [Ohm/m]
0.04 Ohm/m
Screen braided coverage [%] [Min]
70 %
Supply voltage [V] AC
300 V
Type
DEVIsport=E2=84=A2 drum
UK RoHS compliance
Yes
UL evaluated
Out of scope
UV Protected
Yes
Warranty [Year]
20
Warranty type
5-year product warranty
140F0903
Accessories, Cold tails drum, 1.00 m
140F0904
Accessories, Cold tails drum, 1.00 m
140F0905
Accessories, Cold tails drum, 1.00 m
18055442
Accessories, Connection kits resistive cables
DEVI Sport Fields Application manual
DEVI Product Catalogue
DEVIsport=E2=84=A2 (DSM3)
New product names - conversion table
DEVI heating cables
DEVIcrimp kit - Fitting set for single conductor cables
Outdoor Heating Applications
Outdoor Heating Applications
Technical request form Sport Fields
DEVI e-Warranty tool (User Guide)
Heating Cables
DEVIsport drum (DSM3 drum) DEVIsnow drum
