84805400
Part Number: 84805400
Product Information
Extended Description

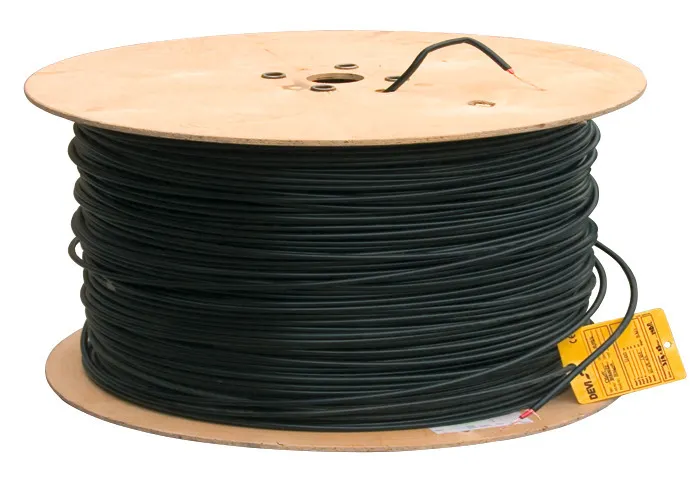

84805400 Danfoss: Cable type: Twin conductor, Product version: Drum, Heating principle: Serial resistive, Application: Roof frost protection; Vineyard frost protection; Cold store; Ground ice and snow melting; Sport fields
Gross weight
0.044 Kilogram
Net weight
0.044 Kilogram
EAN
5703466146248
Application
Cold store,Ground ice and snow melting,Roof frost protection,Sport fields,Vineyard frost protection
Approval
CE
Bending diameter [mm] [Min]
50 mm
Cable diameter [mm]
7 mm
Cable on drum
Yes
Cable output [W/m]
30 W/m
Cable resistance [Ohm/m]
9.36 Ohm/m
Cable resistance [Ohm]
9.356
Cable screen
Alufoil 100%
Cable type
Twin conductor
CE evaluated
Yes
Certification company
NEMKO
China RoHS compliance
Out of scope
Cold lead
No
Conductor insulation
FEP
Contain batteries
No
Cut to length
Yes
Deformation strength [N]
Description
DEVIsnow 9,356 Ohm/m
Element IP Class
IPX7
EPD available
Yes
EU RoHS compliance
Out of scope
Heating principle
Serial resistive
Installation temperature [=C2=B0C] [Min]
-5 =C2=B0C
Non operating temperature [=C2=B0C] [Max]
90 =C2=B0C
Operating temperature [=C2=B0C] [max]
60 =C2=B0C
Outer sheath
PVC
Outer sheath colour
Black
Product group
Heating Cables
Product version
Drum
Pulling strength [N]
REACH Candidate List substances
No
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
400 V
Type
DEVIsnow=E2=84=A2 drum
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
UV Protected
Yes
Warranty [Year]
5
Warranty type
5-year product warranty
140F0907
Accessories, Cold tails drum, 1.000 m
140F0908
Accessories, Cold tails drum, 1.000 m
DEVI Cold Stores Application manual
DEVI Ground Application manual
DEVI Roofs Application manual
DEVI Sport Fields Application manual
Vineyards Frost Protection
DEVIsnow=E2=84=A2 Drum Goods
Installation accessories
DEVI heating cables
EPD Devi & EC Asphalt and Snow heating cables
DEVI e-Warranty tool (User Guide)
VDE 40013875
Heating Cables
DEVIsport drum (DSM3 drum) DEVIsnow drum
