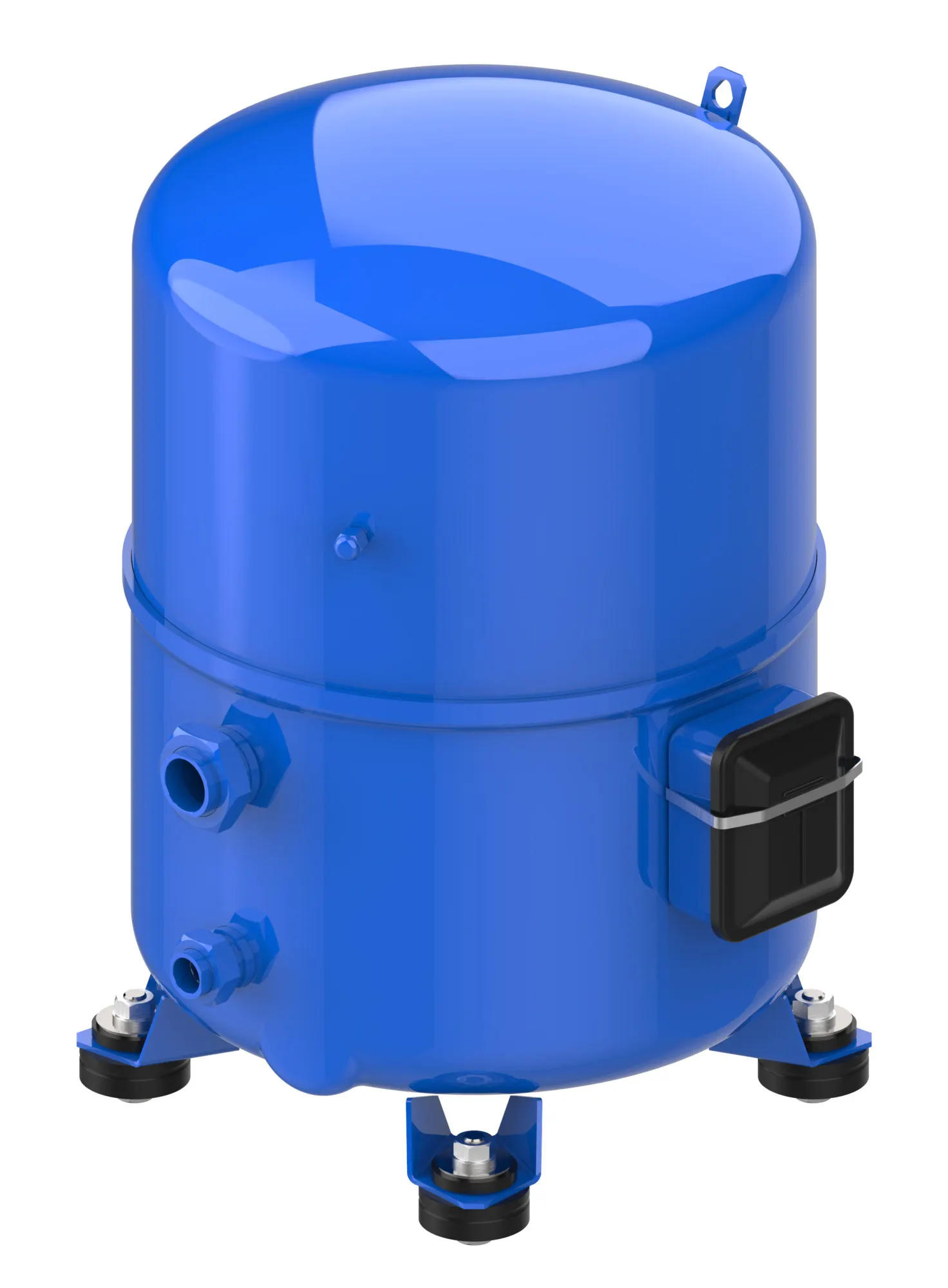

MT144-3VI

Part Number: MT144-3VI
MT144-3VI
Manufacturer
Danfoss
Part number
MT144-3VI
Category

Product Information

Extended Description

MT144-3VI Danfoss: Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
72.5 Kilogram
Net weight
69 Kilogram
Volume
100.75 Liter
EAN
5702428839891
Approval
CE,UL,UKCA
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
4
Description
MT144-3
Diameter [mm]
352 mm
Discharge connection height [mm]
125 mm
Discharge connection pipe size [in]
3/4 in
Discharge connection size [in]
1 1/4 in
Drawing number
8504011e
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
MT
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
1.2 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
50 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
31 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
259 A
Max pressure (PS) - high side
27.8 bar
Max pressure (PS) - low side
18.4 bar
MCC
64 A
Model number
MT144HV3VE
Motor protection
Internal overload protector
Mounting torque [Nm]
50 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.9 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
160P
Packaging height [mm]
720 mm
Packaging length [mm]
570 mm
Packaging weight [Kg]
72 kg
Packaging width [mm]
400 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor MT
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
10 kg
Refrigerants
R22
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
6971587b-85b6-4808-886d-274e8a9998d4
Segment usage
Refrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
233 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 3/4 in
Swept volume [cm3]
241.87 cm=C2=B3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
540 mm
Type
MT144
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.28 Ohm
7754001
Lubricant, 160P
7754002
Lubricant, 160P
8156019
Connector, Sight glass
120Z0459
Crankcase heater, PTC heater
7773108
Crankcase heater, Belt heater
8156145
Connector, Gasket
8168028
Connector, Rotolock service valve
8168029
Connector, Rotolock service valve
7773110
Crankcase heater, Belt heater
7703009
Connector, Valve set
8153008
Connector, Solder sleeve
8156132
Connector, Gasket
8156131
Connector, Gasket
120Z0577
Acoustic hood, Reciprocating
8153004
Connector, Solder sleeve
8156135
Electrical component, Terminal box
8156009
Connector, Gasket
8156007
Mounting, Compressor kit
8173230
Electrical component, T block
