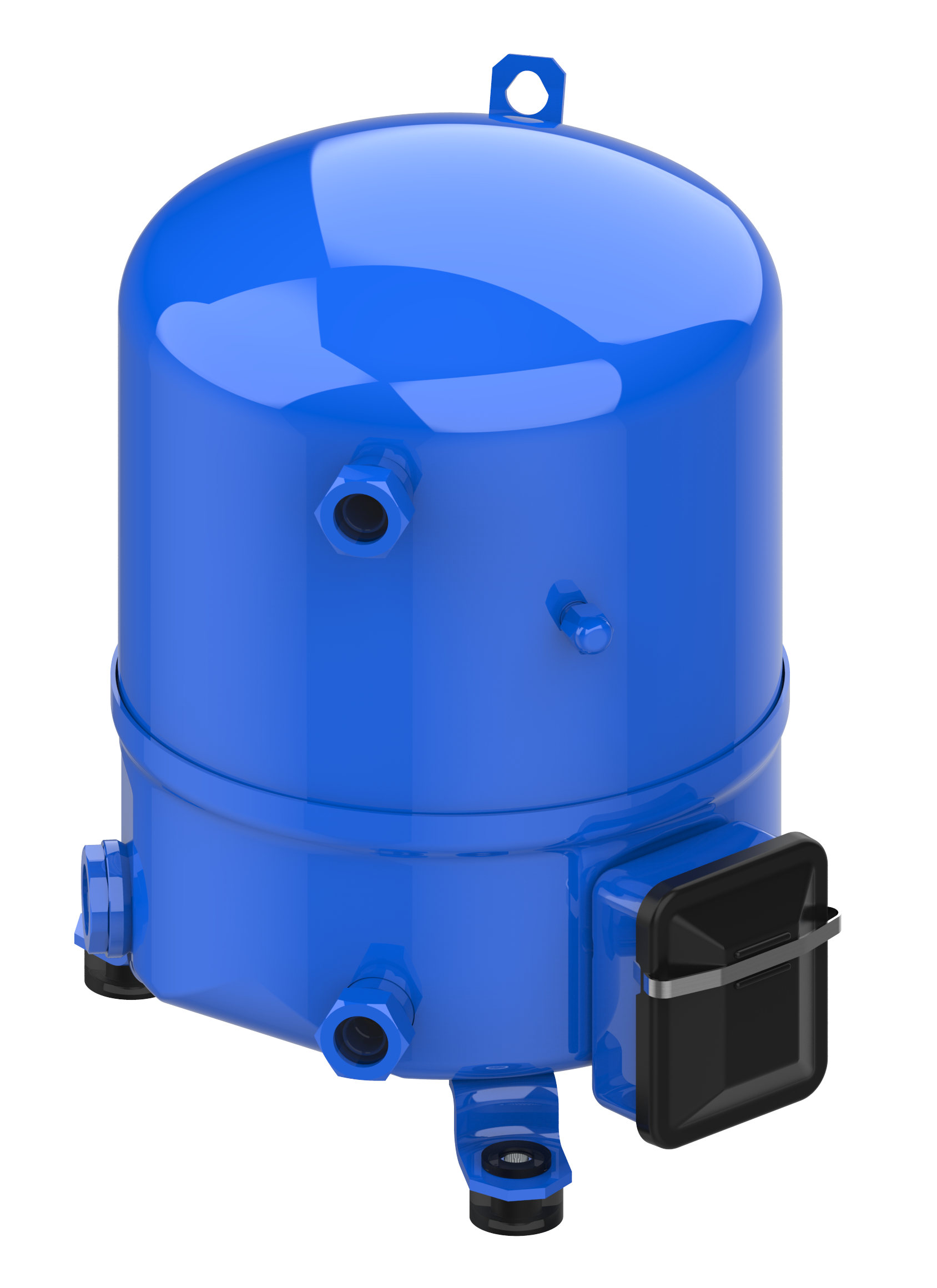

MT19-3VI

Part Number: MT19-3VI
MT19-3VI
Manufacturer
Danfoss
Part number
MT19-3VI
Category

Product Information

Extended Description

MT19-3VI Danfoss: Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
23.88 Kilogram
Net weight
22 Kilogram
Volume
37.73 Liter
EAN
5702428662581
Approval
CE,UL,UKCA
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
1
Description
MT019-3
Diameter [mm]
224 mm
Discharge connection height [mm]
68 mm
Discharge connection pipe size [in]
3/8 in
Discharge connection size [in]
1 in
Drawing number
8501024e
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Family
MT
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP55 (with cable gland)
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
38 A
Max pressure (PS) - high side
29.4 bar
Max pressure (PS) - low side
18.4 bar
MCC
9 A
Model number
MT19JA3VE
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
0.95 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
160P
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Spade
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor MT
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
3 kg
Refrigerants
R22
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usage
Refrigeration MT
Suction connection height [mm]
263 mm
Suction connection material
-
Suction connection pipe size [in]
1/2 in
Suction connection size [in]
1 in
Swept volume [cm3]
30.23 cm=C2=B3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
333 mm
Type
MT019
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
2.58 Ohm
8156019
Connector, Sight glass
7703004
Connector, Valve set
8168031
Connector, Rotolock service valve
7754001
Lubricant, 160P
7773106
Crankcase heater, Belt heater
8156145
Connector, Gasket
120Z0459
Crankcase heater, PTC heater
8168027
Connector, Rotolock service valve
8156009
Connector, Gasket
8153007
Connector, Solder sleeve
120Z0575
Acoustic hood, Reciprocating
8156130
Connector, Gasket
8153010
Connector, Solder sleeve
8156001
Mounting, Compressor kit
8156134
Electrical component, Terminal box
