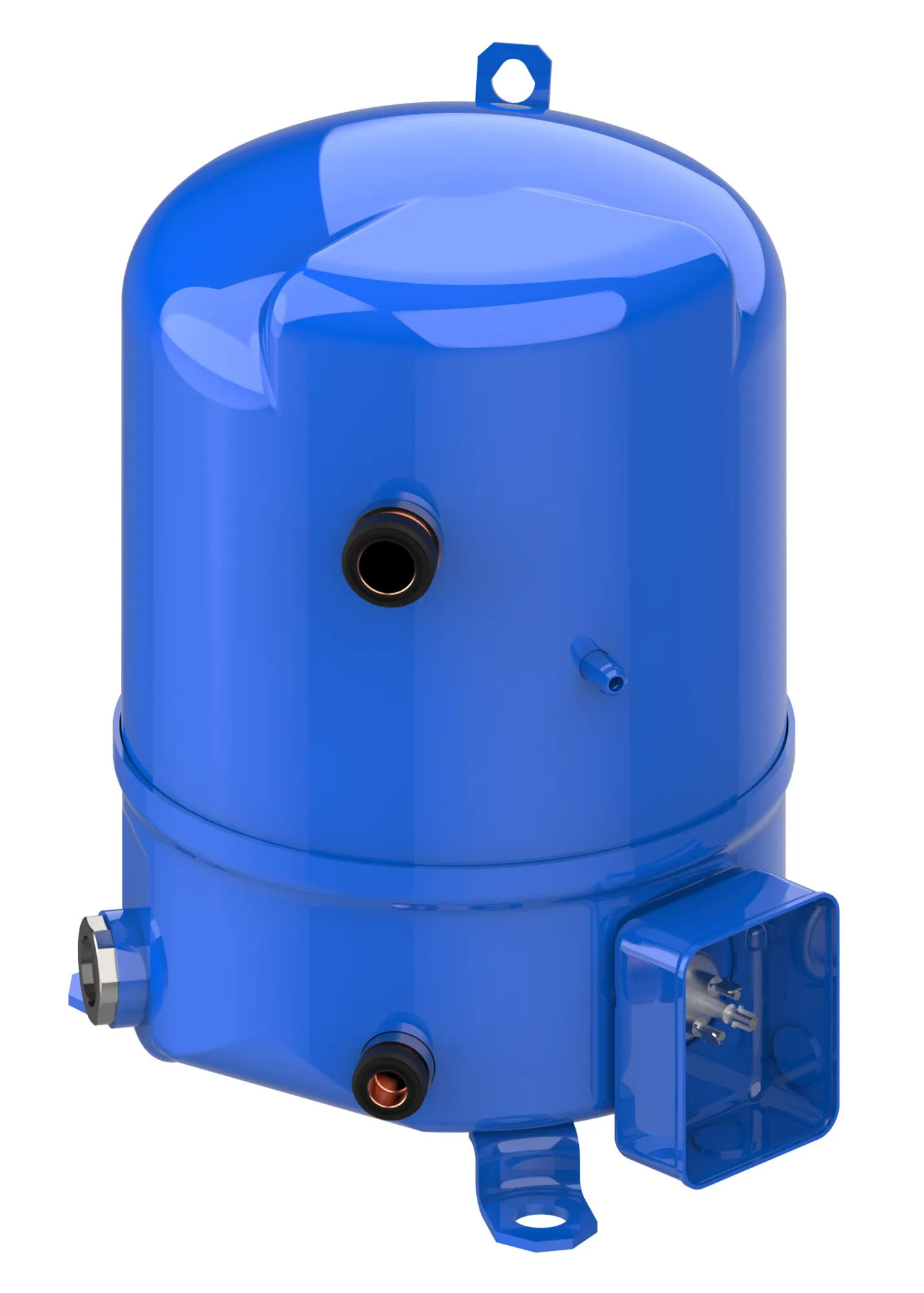

MT40-1VI

Part Number: MT40-1VI
MT40-1VI
Manufacturer
Danfoss
Part number
MT40-1VI
Category

Product Information

Extended Description

MT40-1VI Danfoss: Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 208-230/1/60, Packing format: Single pack
Gross weight
28.88 Kilogram
Net weight
27 Kilogram
Volume
37.73 Liter
EAN
5702428839709
Approval
CE,UL,UKCA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
1.87
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Capacity of capacitor A
35 =C2=B5F
Capacity of capacitor B
100 =C2=B5F
Capacity of capacitor C
20 =C2=B5F
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
208-230/1/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
1
Description
MT040-1
Diameter [mm]
224 mm
Discharge connection height [mm]
68 mm
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1 in
Drawing number
8501020e
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
MT
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.3 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP55 (with cable gland)
Low Side TS Max
50 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
7.5 L
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 60Hz [V]
187 V
LRA
99 A
Main winding resistance for single-phase compressors [Ohm]
0.54
Max pressure (PS) - high side
29.4 bar
Max pressure (PS) - low side
18.4 bar
MCC
34 A
Model number
MT40JH1NVE
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
208-230/1/60
Number of starts per hour [Max]
12
Oil charge [L]
0.95 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
160P
Packaging height [mm]
385 mm
Packaging length [mm]
330 mm
Packaging weight [Kg]
28 kg
Packaging width [mm]
295 mm
Packing format
Single pack
Packing quantity
1
Phase
1
Power connections
Spade
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor MT
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
2.5 kg
Refrigerants
R22
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
5a332c1b-1d1b-4998-8115-d0929877ecb4
Segment usage
Refrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
263 mm
Suction connection material
-
Suction connection pipe size [in]
5/8 in
Suction connection size [in]
1 1/4 in
Swept volume [cm3]
67.89 cm=C2=B3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
356 mm
Type
MT040
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Voltage of capacitor A [V]
440 V
Voltage of capacitor B [V]
330 V
Voltage of capacitor C [V]
440 V
7754001
Lubricant, 160P
8168033
Connector, Rotolock service valve
7701156
Electrical component, Starting kit
120Z0459
Crankcase heater, PTC heater
7703005
Connector, Valve set
8156145
Connector, Gasket
8168031
Connector, Rotolock service valve
8173022
Electrical component, Relay
7773106
Crankcase heater, Belt heater
8156019
Connector, Sight glass
8153007
Connector, Solder sleeve
8156130
Connector, Gasket
120Z0575
Acoustic hood, Reciprocating
7701156
Electrical component, Starting kit
8153011
Connector, Solder sleeve
8156134
Electrical component, Terminal box
8173001
Electrical component, Start capacitor
8156131
Connector, Gasket
7701026
Electrical component, Starting kit
8156009
Connector, Gasket
