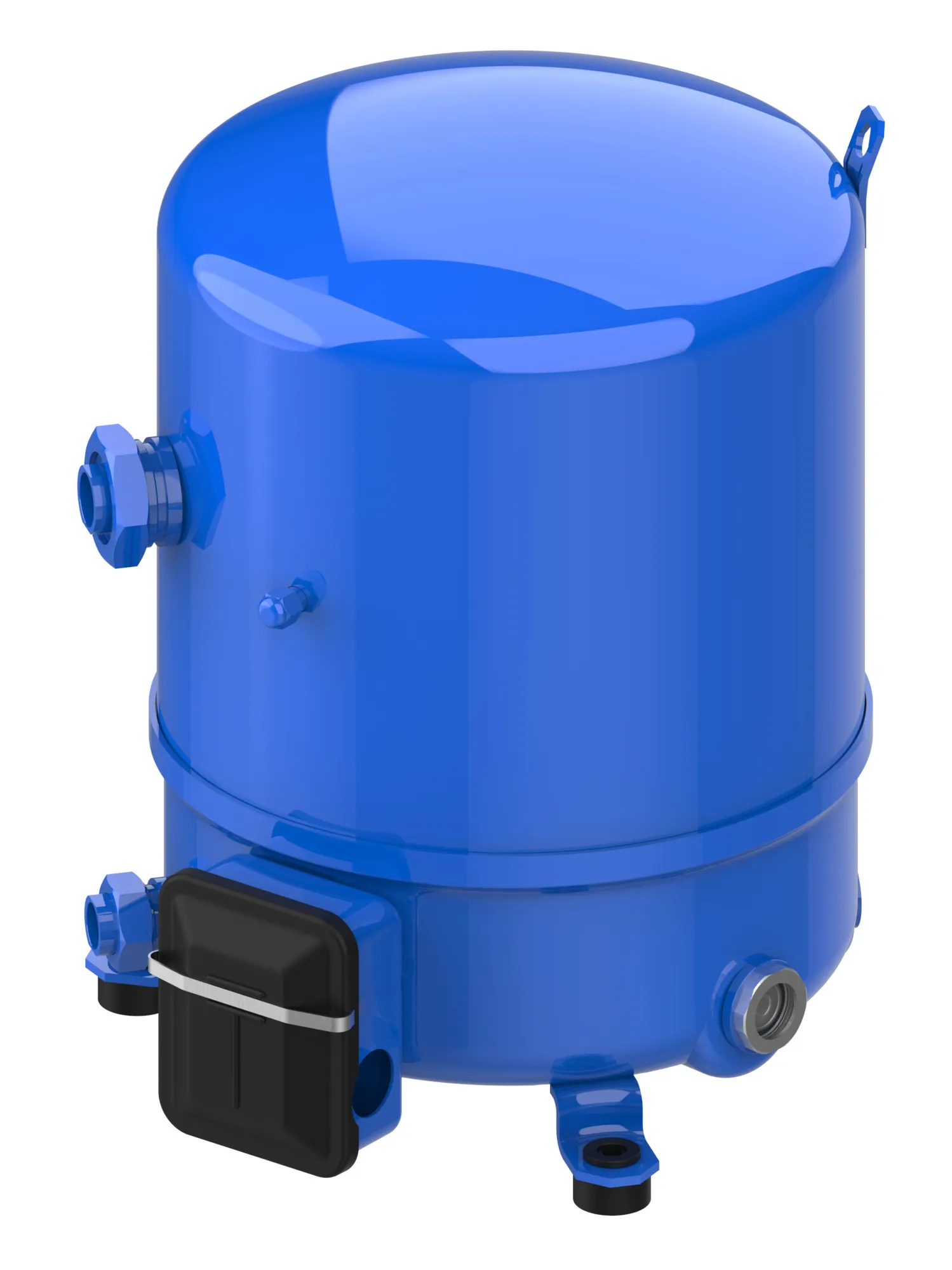

MT50-1VI

Part Number: MT50-1VI
MT50-1VI
Manufacturer
Danfoss
Part number
MT50-1VI
Category

Product Information

Extended Description

MT50-1VI Danfoss: Refrigerants: R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 208-230/1/60, Packing format: Single pack
Gross weight
39.5 Kilogram
Net weight
37 Kilogram
Volume
61.54 Liter
EAN
5702428839648
Approval
CE,UL,UKCA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]
1.83
Brand technique
Reciprocating compressor
Capacity control
Fixed speed
Capacity of capacitor A
30 =C2=B5F
Capacity of capacitor B
135 =C2=B5F
Capacity of capacitor C
15 =C2=B5F
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
208-230/1/60
Configuration code
Single
Connection type
Rotolock
Contain batteries
No
Cylinder
2
Description
MT050-1
Diameter [mm]
288 mm
Discharge connection height [mm]
74 mm
Discharge connection pipe size [in]
3/4 in
Discharge connection size [in]
1 1/4 in
Drawing number
8502011e
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Factory HP [bar]
25 bar
Factory LP [bar]
25 bar
Family
MT
Fitting remark
(shipped with rotolock version only)
Fitting sleeve
ODF
Fitting standard
Rotolock
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
0.6 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
50 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
16.5 L
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 60Hz [V]
187 V
LRA
114 A
Main winding resistance for single-phase compressors [Ohm]
0.38
Max pressure (PS) - high side
27.8 bar
Max pressure (PS) - low side
18.4 bar
MCC
36 A
Model number
MT50HK1GVE
Motor protection
Internal overload protector
Mounting torque [Nm]
15 N-m
Network power supply [V/Ph/Hz]
208-230/1/60
Number of starts per hour [Max]
12
Oil charge [L]
1.8 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
30 N-m
Oil reference
160P
Packaging height [mm]
455 mm
Packaging length [mm]
395 mm
Packaging weight [Kg]
39 kg
Packaging width [mm]
365 mm
Packing format
Single pack
Packing quantity
1
Phase
1
Power connections
Screw connectors 10-32 UNF x 9.5
Product group
Hermetic compressors
Product Name Description
Reciprocating compressor MT
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
5 kg
Refrigerants
R22
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
9b3fb119-9852-486a-92dd-53aa9c96fd3b
Segment usage
Refrigeration MT
Shipped fittings
Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
265 mm
Suction connection material
-
Suction connection pipe size [in]
7/8 in
Suction connection size [in]
1 3/4 in
Swept volume [cm3]
85.64 cm=C2=B3
Technology
Reciprocating
Test dif [bar] [Max]
30 bar
Test HP [bar] [Max]
30 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
3 N-m
Torque power [Nm]
3 N-m
Total height [mm]
413 mm
Type
MT050
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Voltage of capacitor A [V]
440 V
Voltage of capacitor B [V]
330 V
Voltage of capacitor C [V]
440 V
8156145
Connector, Gasket
7701035
Electrical component, Starting kit
7773107
Crankcase heater, Belt heater
8168029
Connector, Rotolock service valve
7754001
Lubricant, 160P
8173022
Electrical component, Relay
8156019
Connector, Sight glass
120Z0459
Crankcase heater, PTC heater
7703006
Connector, Valve set
7701042
Electrical component, Starting kit
120Z0576
Acoustic hood, Reciprocating
8173230
Electrical component, T block
8153013
Connector, Solder sleeve
8156009
Connector, Gasket
8173002
Electrical component, Start capacitor
8156131
Connector, Gasket
8153008
Connector, Solder sleeve
8156132
Connector, Gasket
8156135
Electrical component, Terminal box
7701035
Electrical component, Starting kit
