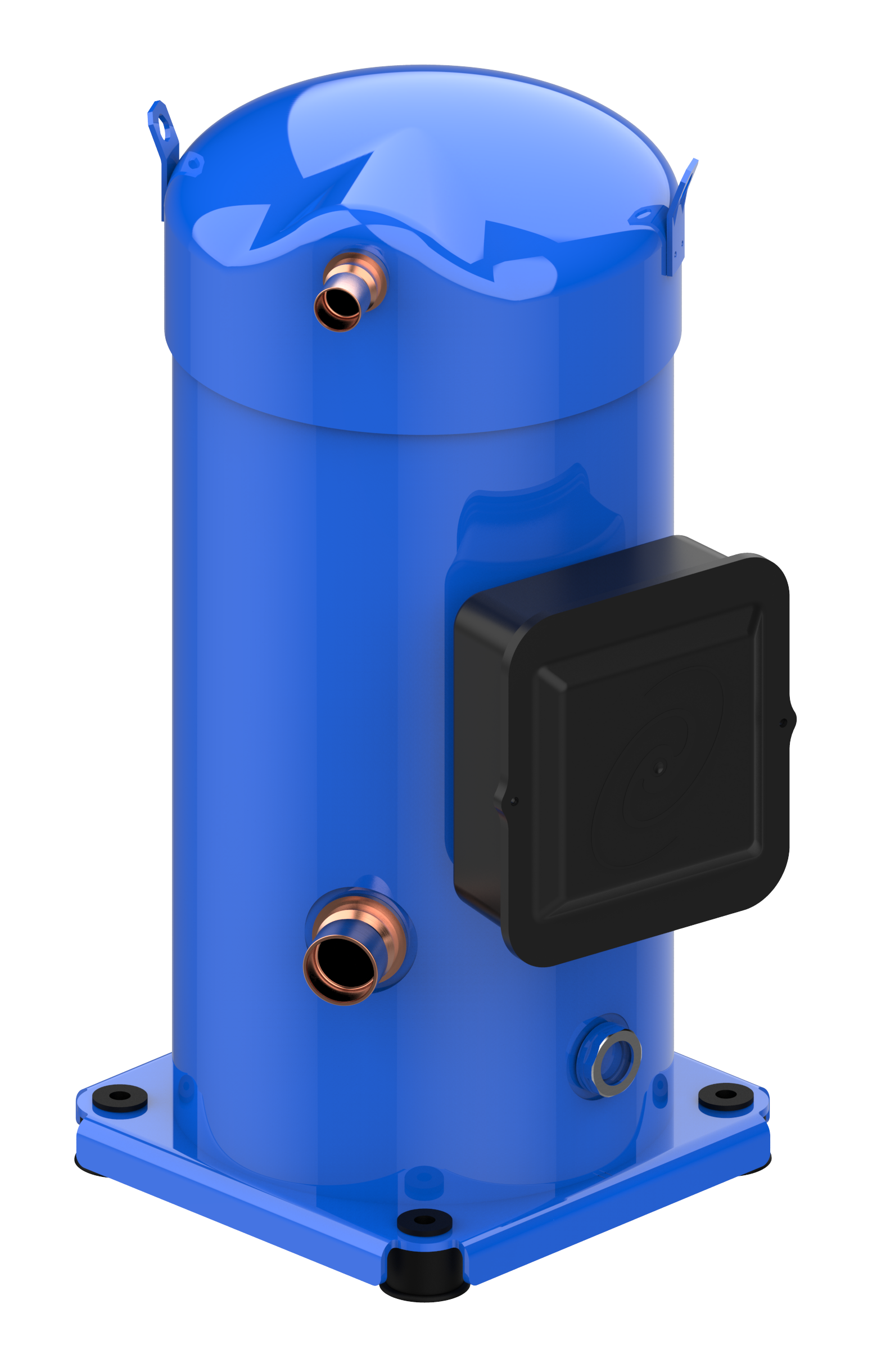

SM148-3VAI

Part Number: SM148-3VAI
SM148-3VAI
Manufacturer
Danfoss
Part number
SM148-3VAI
Category

Product Information

Extended Description

SM148-3VAI Danfoss: Refrigerants: R22, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
94.06 Kilogram
Net weight
88 Kilogram
Volume
0.24 Cubic meter
EAN
5702428801119
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SM148-3
Diameter [mm]
266 mm
Discharge connection height [mm]
556 mm
Discharge connection pipe size [in]
7/8 in
Discharge connection size [in]
7/8 in
Drawing number
8551116b
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SM
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
1.6 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
63 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
14.7 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
255 A
Max pressure (PS) - high side
30.2 bar
Max pressure (PS) - low side
25 bar
Maximum Operating Current [MOC]
57 A
MCC
64 A
Model number
SM148T3VC
Motor protection
Internal overload protector
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.6 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
48 N-m
Oil reference
160P
Oil type
Mineral
Packaging height [mm]
671 mm
Packaging length [mm]
470 mm
Packaging weight [Kg]
671 kg
Packaging width [mm]
370 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor SM
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
12.5 kg
Refrigerants
R22
RLA
45.7 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
2e9b0776-281a-4205-bf1f-dbeea526b31d
SCIP dossier product name
SM084/SM090/SM100/SM110/SM120/SM148/SM161/SZ084/SZ090/SZ100/SZ110/SZ120/SZ148/SZ161
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
180 mm
Suction connection material
-
Suction connection pipe size [in]
1 3/8 in
Suction connection size [in]
1 3/8 in
Swept volume [cm3]
199 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
2 N-m
Torque Ebox cover [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
591 mm
Type
SM148
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.29 Ohm
7754001
Lubricant, 160P
8168030
Connector, Rotolock service valve
8168022
Connector, Valve
120Z0380
Crankcase heater, Surface sump heater
7773109
Crankcase heater, Belt heater
7703392
Connector, Valve set
7773107
Crankcase heater, Belt heater
120Z0361
Crankcase heater, Surface sump heater
8156019
Connector, Sight glass
8156129
Connector, Gasket
8156139
Electrical component, Terminal box
8156132
Connector, Gasket
8153003
Connector, Solder sleeve
7750009
Electrical component, Discharge thermostat kit
8173021
Electrical component, T block
8156013
Connector, Gasket
8156138
Mounting, Compressor kit
7765006
Connector, Solder sleeve adapter set
