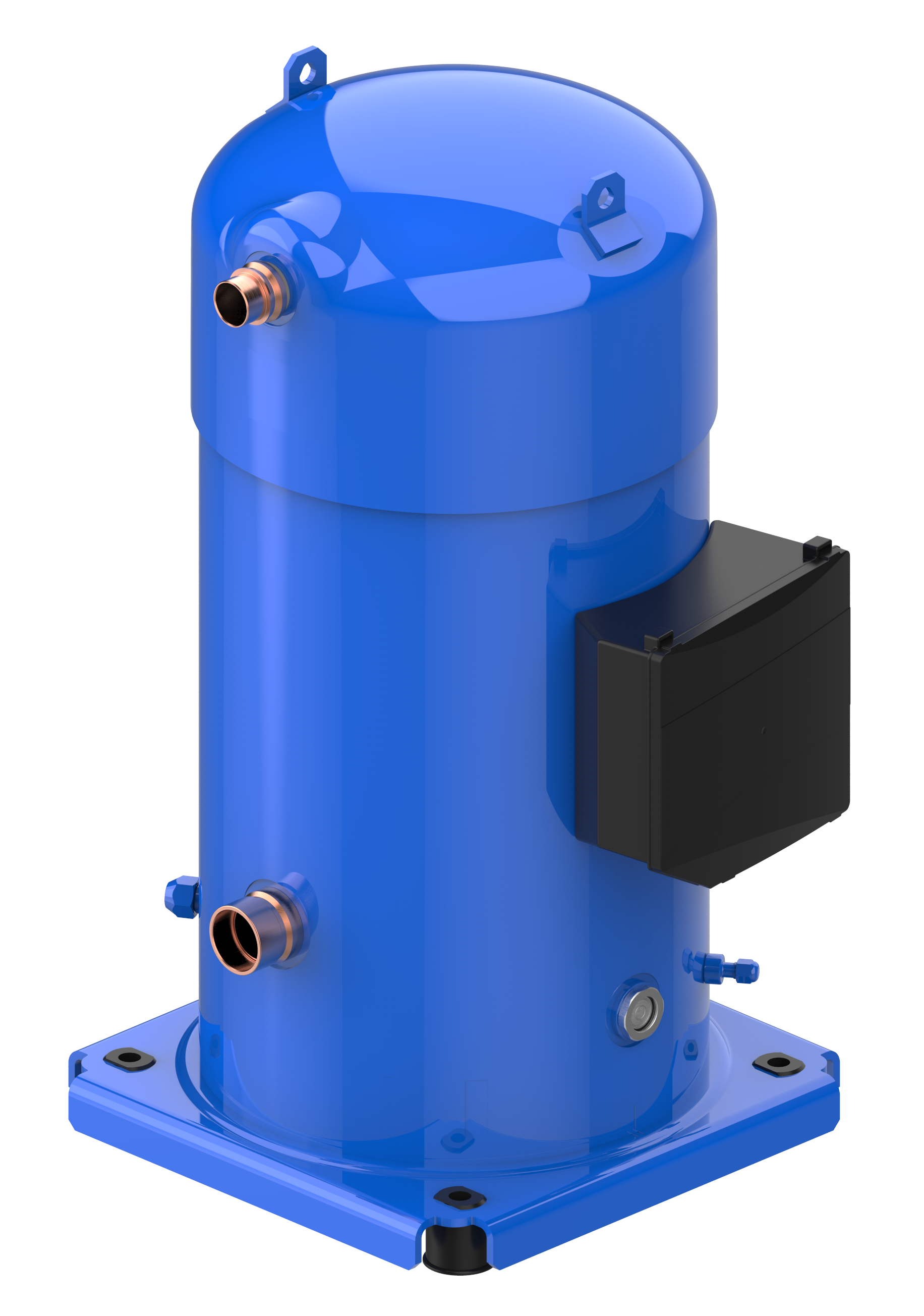

SY240A3CBM

Part Number: SY240A3CBM
SY240A3CBM
Manufacturer
Danfoss
Part number
SY240A3CBM
Category

Product Information

Extended Description

SY240A3CBM Danfoss: Refrigerants: R407C; R134a; R22, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Industrial pack
Gross weight
156 Kilogram
Net weight
150 Kilogram
Volume
0.244 Cubic meter
EAN
5702428660778
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SY240-3
Diameter [mm]
344 mm
Discharge connection height [mm]
654 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8556092b
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SY
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
5 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
52 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
34.1 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
460 A
Max pressure (PS) - high side
31.8 bar
Max pressure (PS) - low side
20 bar
Maximum Operating Current [MOC]
50 + 50 A
MCC
109 A
Model number
SY240A3CBE
Motor protection
Electronic protection module, 110/240 V
Mounting torque [Nm]
40 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
8 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
1/2'' flare
Oil equalization torque [Nm]
66 N-m
Oil reference
320SZ
Packaging height [mm]
904 mm
Packaging length [mm]
1140 mm
Packaging weight [Kg]
635 kg
Packaging width [mm]
950 mm
Packing format
Industrial pack
Packing quantity
4
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product Name Description
Scroll compressor SY
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
16 kg
Refrigerants
R134a,R22,R407C
Reverse rotation protection
Electronic module
RLA
77.9 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
51393c5f-fa09-4984-947c-f686d7aaef0f
SCIP dossier product name
SVA-S top complete cap
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped module
Electronic protection module mounted in terminal box
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
196 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
347.8 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
20 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
727 mm
Type
SY240
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
68 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.141 Ohm
120Z0585
Electrical component, Motor protection module
8168028
Connector, Rotolock service valve
7703383
Connector, Valve set
7773121
Crankcase heater, Belt heater
7773122
Crankcase heater, Belt heater
120Z0432
Connector, Rotolock adapter
8168026
Connector, Rotolock service valve
120Z0364
Connector, Rotolock adapter
8156019
Connector, Sight glass
8156129
Connector, Gasket
120Z0774
Electrical component, T block
7755016
Acoustic hood, Scroll
8156133
Connector, Gasket
120Z0458
Electrical component, Terminal box
7765028
Connector, Solder sleeve adapter set
8153006
Connector, Solder sleeve
8156132
Connector, Gasket
8156013
Connector, Gasket
7750009
Electrical component, Discharge thermostat kit
8156144
Mounting, Compressor kit
