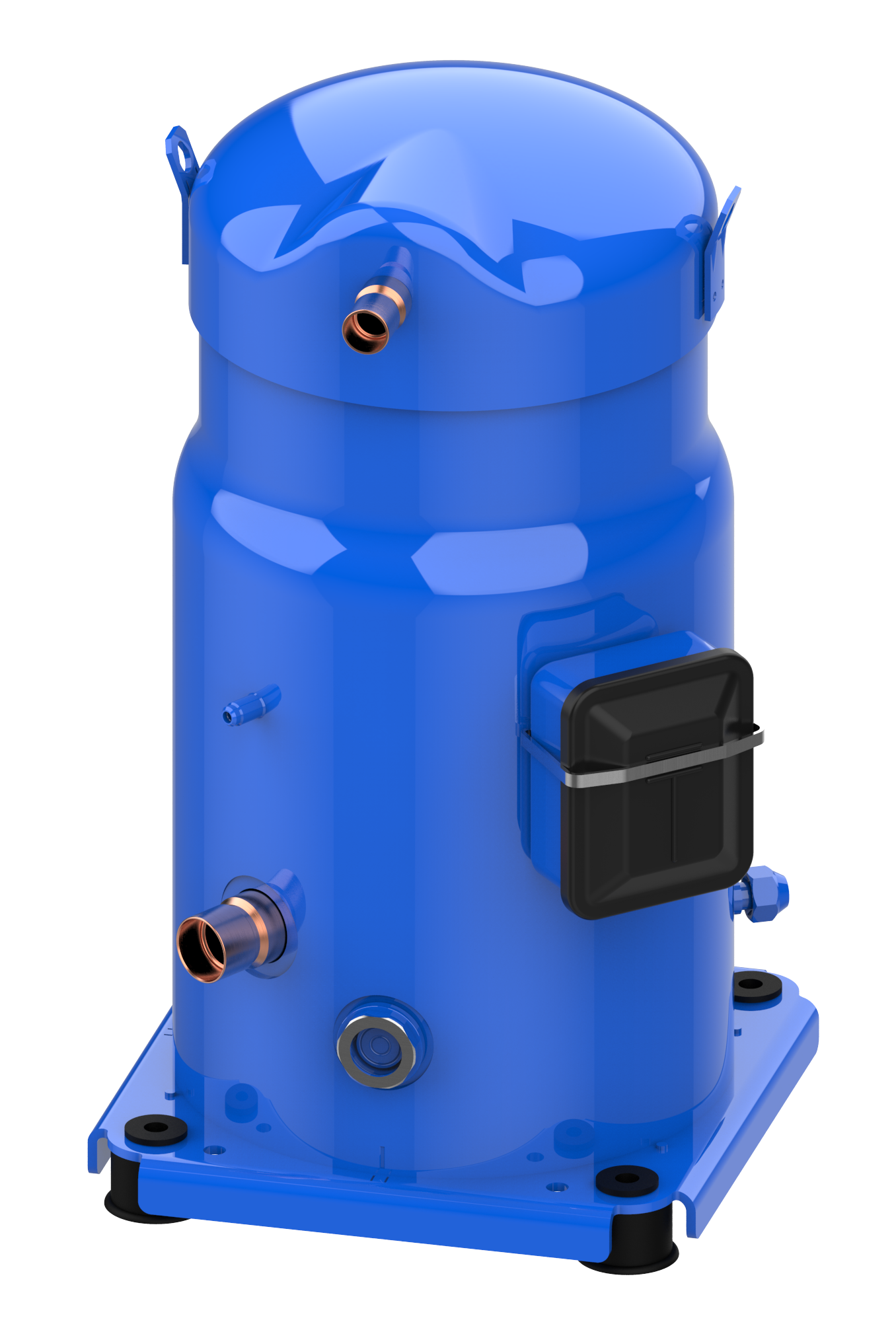

SZ090-3VI

Part Number: SZ090-3VI
SZ090-3VI
Manufacturer
Danfoss
Part number
SZ090-3VI
Category

Product Information

Extended Description

SZ090-3VI Danfoss: Refrigerants: R407C; R134a, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
70.53 Kilogram
Net weight
65 Kilogram
Volume
0.23 Cubic meter
EAN
5702428582896
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SZ090-3
Diameter [mm]
254 mm
Discharge connection height [mm]
465 mm
Discharge connection pipe size [in]
3/4 in
Discharge connection size [in]
3/4 in
Drawing number
8552036b
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SZ
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
1.1 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
54 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
13 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
195 A
Max pressure (PS) - high side
34.3 bar
Max pressure (PS) - low side
25 bar
Maximum Operating Current [MOC]
34 A
MCC
35 A
Model number
SZ090S3VC
Motor protection
Internal overload protector
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
3.25 L
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
48 N-m
Oil reference
160SZ
Oil type
POE
Packaging height [mm]
596 mm
Packaging length [mm]
470 mm
Packaging weight [Kg]
69 kg
Packaging width [mm]
370 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor SZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
8.5 kg
Refrigerants
R134a,R407C
RLA
25 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
2e9b0776-281a-4205-bf1f-dbeea526b31d
SCIP dossier product name
SM084/SM090/SM100/SM110/SM120/SM148/SM161/SZ084/SZ090/SZ100/SZ110/SZ120/SZ148/SZ161
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
142 mm
Suction connection material
-
Suction connection pipe size [in]
1 1/8 in
Suction connection size [in]
1 1/8 in
Swept volume [cm3]
120.5 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
508 mm
Type
SZ090
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.38 Ohm
120Z0380
Crankcase heater, Surface sump heater
8168028
Connector, Rotolock service valve
8168029
Connector, Rotolock service valve
8156129
Connector, Gasket
7773109
Crankcase heater, Belt heater
7703009
Connector, Valve set
8156019
Connector, Sight glass
120Z0361
Crankcase heater, Surface sump heater
7773107
Crankcase heater, Belt heater
7754023
Lubricant, 160SZ
7750009
Electrical component, Discharge thermostat kit
8153008
Connector, Solder sleeve
8156131
Connector, Gasket
8153004
Connector, Solder sleeve
8156138
Mounting, Compressor kit
7765005
Connector, Solder sleeve adapter set
8156013
Connector, Gasket
8156132
Connector, Gasket
8156135
Electrical component, Terminal box
7755011
Acoustic hood, Scroll
