SZ160-3CBI

Part Number: SZ160-3CBI
SZ160-3CBI
Manufacturer
Danfoss
Part number
SZ160-3CBI
Category

Product Information

Extended Description

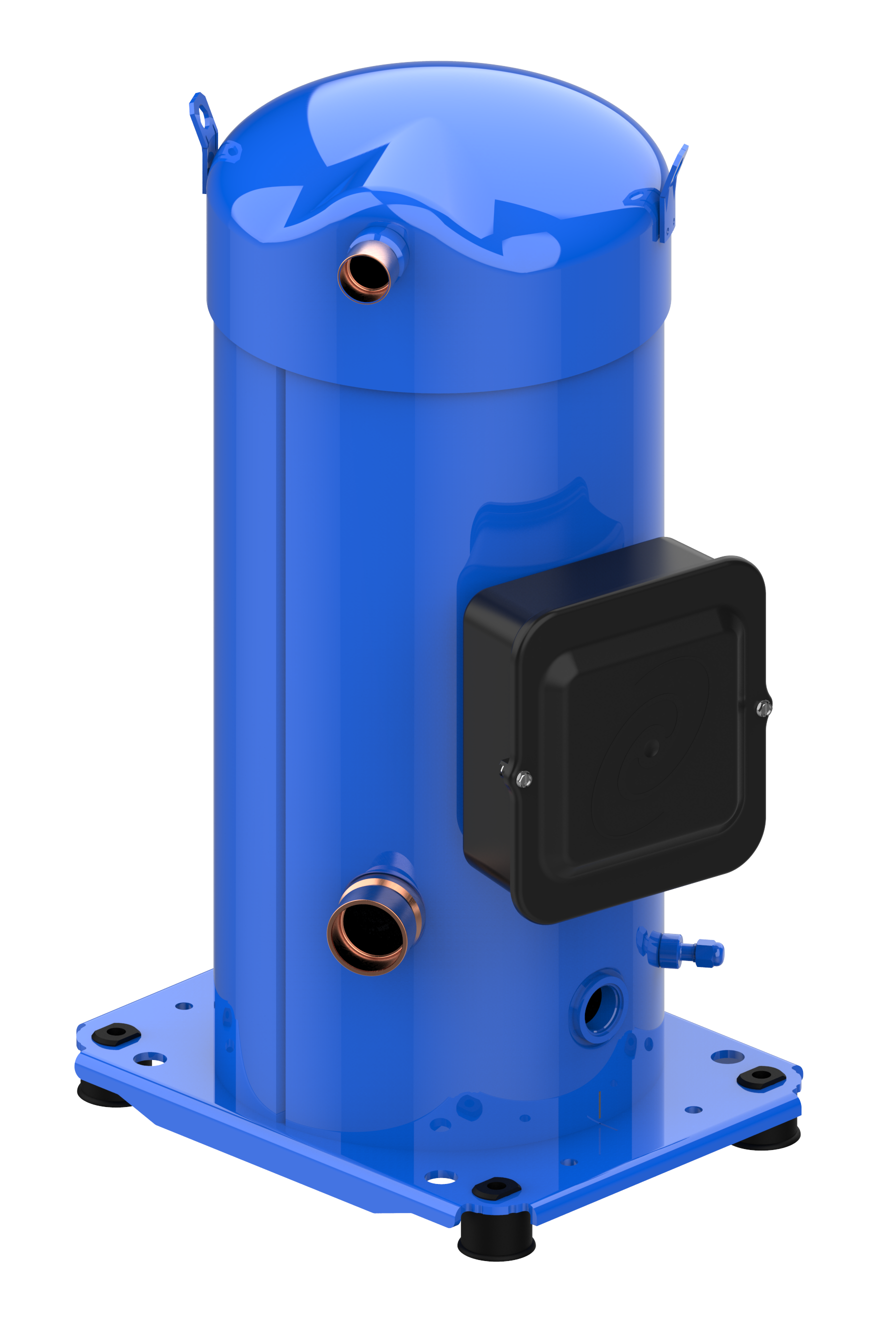

SZ160-3CBI Danfoss: Refrigerants: R407C; R134a, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
102 Kilogram
Net weight
90 Kilogram
Volume
0.23 Cubic meter
EAN
5702428582803
Approval
CE,UL,UKCA
Brand technique
After sale
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SZ160-3
Diameter [mm]
266 mm
Discharge connection height [mm]
596 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8551055c
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SZ
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
1.7 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
54 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
16.5 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
298 A
Max pressure (PS) - high side
34.3 bar
Max pressure (PS) - low side
25 bar
Maximum Operating Current [MOC]
61 A
MMT
61 A
Model number
SZ160T3CC
Motor protection
Internal thermostat, ext. overload protector needed
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
4 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
48 N-m
Oil reference
160SZ
Oil type
POE
Packaging height [mm]
671 mm
Packaging length [mm]
470 mm
Packaging weight [Kg]
671 kg
Packaging width [mm]
370 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor SZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
12.5 kg
Refrigerants
R134a,R407C
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
58968d52-aa4c-4c0c-9aee-1ce6a31dfbd1
SCIP dossier product name
SM115/SM125/SM160/SM175/SM185/SZ115/SZ125/SZ160/SZ175/SZ185/SY185
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection height [mm]
180 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
216.6 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
2 N-m
Torque Ebox cover [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
631 mm
Type
SZ160
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.21 Ohm
7703383
Connector, Valve set
8168028
Connector, Rotolock service valve
120Z0363
Crankcase heater, Surface sump heater
7773109
Crankcase heater, Belt heater
8156129
Connector, Gasket
8168026
Connector, Rotolock service valve
120Z0384
Crankcase heater, Surface sump heater
8156019
Connector, Sight glass
120Z0364
Connector, Rotolock adapter
120Z0432
Connector, Rotolock adapter
8153006
Connector, Solder sleeve
7750009
Electrical component, Discharge thermostat kit
8153004
Connector, Solder sleeve
8156147
Mounting, Compressor kit
8156132
Connector, Gasket
8156138
Mounting, Compressor kit
8156133
Connector, Gasket
7765028
Connector, Solder sleeve adapter set
8156013
Connector, Gasket
8156139
Electrical component, Terminal box
