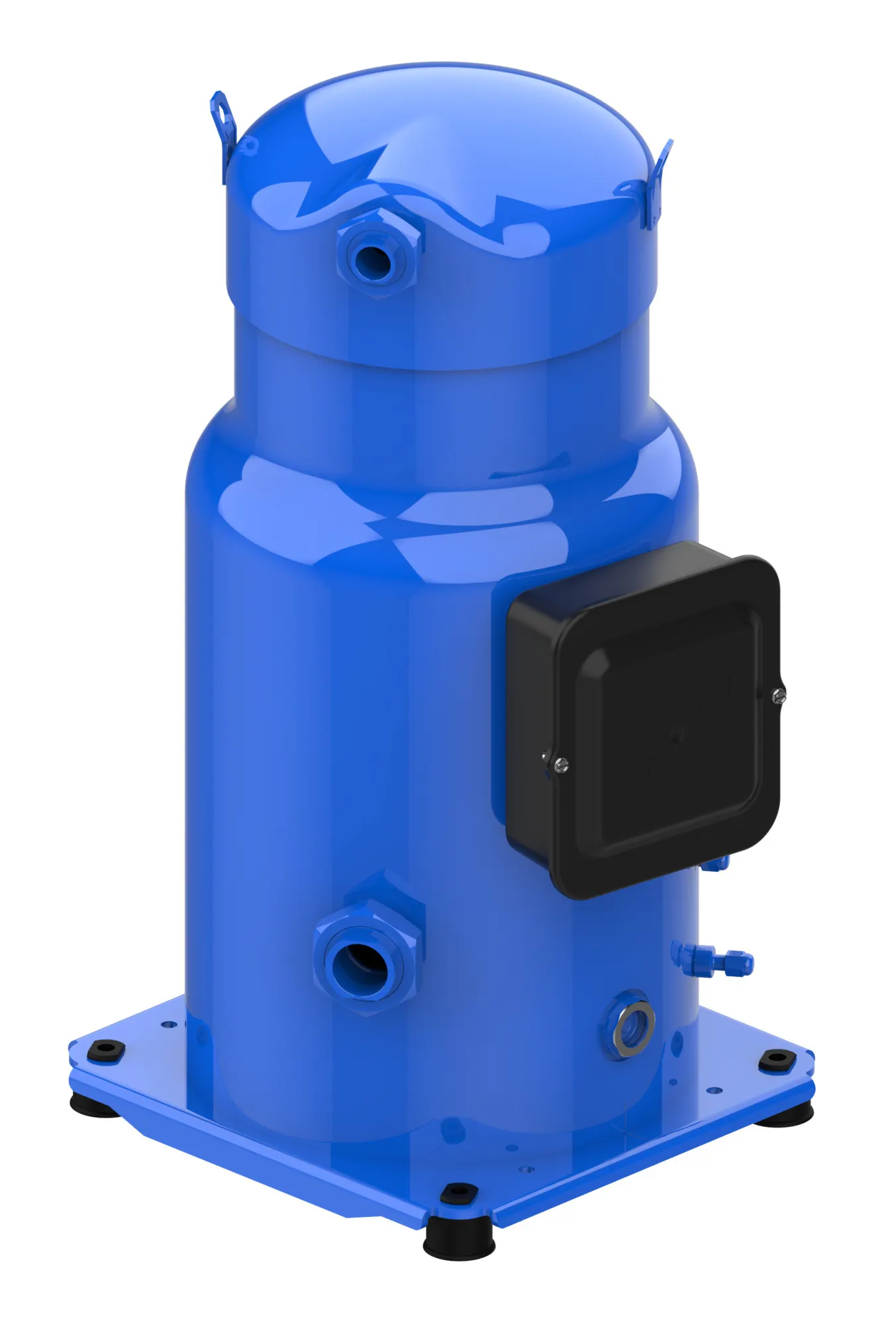

SZ175-3QAI

Part Number: SZ175-3QAI
SZ175-3QAI
Manufacturer
Danfoss
Part number
SZ175-3QAI
Category

Product Information

Extended Description

SZ175-3QAI Danfoss: Refrigerants: R404A; R407C; R507A; R134a, Segment usage: Air conditioning, Compressor power supply [V]: 200-230/3/60, Packing format: Single pack
Gross weight
106.33 Kilogram
Net weight
100 Kilogram
Volume
0.1 Cubic meter
EAN
5702428988773
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
200-230/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SZ175-3Q
Diameter [mm]
317 mm
Discharge connection height [mm]
643 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8551056c
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SZ
Fitting standard
ODF
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
2.5 L
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
54 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
31.2 L
Low value of nominal voltage at 60Hz [V]
200 V
Low value of voltage range at 60Hz [V]
180 V
LRA
380 A
Max pressure (PS) - high side
34.3 bar
Max pressure (PS) - low side
25 bar
Maximum Operating Current [MOC]
70 A
MCC
70 A
Model number
SZ175S3QC
Motor protection
Electronic protection module, 24 V ac
Mounting torque [Nm]
21 N-m
Network power supply [V/Ph/Hz]
208-230/3/60
Number of starts per hour [Max]
12
Oil charge [L]
6.2 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
3/8'' flare SAE
Oil equalization torque [Nm]
48 N-m
Oil reference
160SZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Screw 4.8 mm
Product group
Hermetic compressors
Product Name Description
Scroll compressor SZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
13.5 kg
Refrigerants
R134a,R404A,R407C,R507A
RLA
50 A
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
58968d52-aa4c-4c0c-9aee-1ce6a31dfbd1
SCIP dossier product name
SM115/SM125/SM160/SM175/SM185/SZ115/SZ125/SZ160/SZ175/SZ185/SY185
Segment usage
Air conditioning
Suction connection height [mm]
180 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
233 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
25 bar
Torque earth [Nm]
2 N-m
Torque Ebox cover [Nm]
2 N-m
Torque power [Nm]
3 N-m
Total height [mm]
678 mm
Type
SZ175
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.19 Ohm
120Z0360
Crankcase heater, Surface sump heater
120Z0364
Connector, Rotolock adapter
120Z0432
Connector, Rotolock adapter
7703383
Connector, Valve set
7773108
Crankcase heater, Belt heater
7773110
Crankcase heater, Belt heater
8156019
Connector, Sight glass
8156129
Connector, Gasket
8168026
Connector, Rotolock service valve
8168028
Connector, Rotolock service valve
7765028
Connector, Solder sleeve adapter set
8153004
Connector, Solder sleeve
8153006
Connector, Solder sleeve
8156013
Connector, Gasket
8156132
Connector, Gasket
8156133
Connector, Gasket
8156139
Electrical component, Terminal box
8173021
Electrical component, T block
