SZ300A4CBI

Part Number: SZ300A4CBI
SZ300A4CBI
Manufacturer
Danfoss
Part number
SZ300A4CBI
Category

Product Information

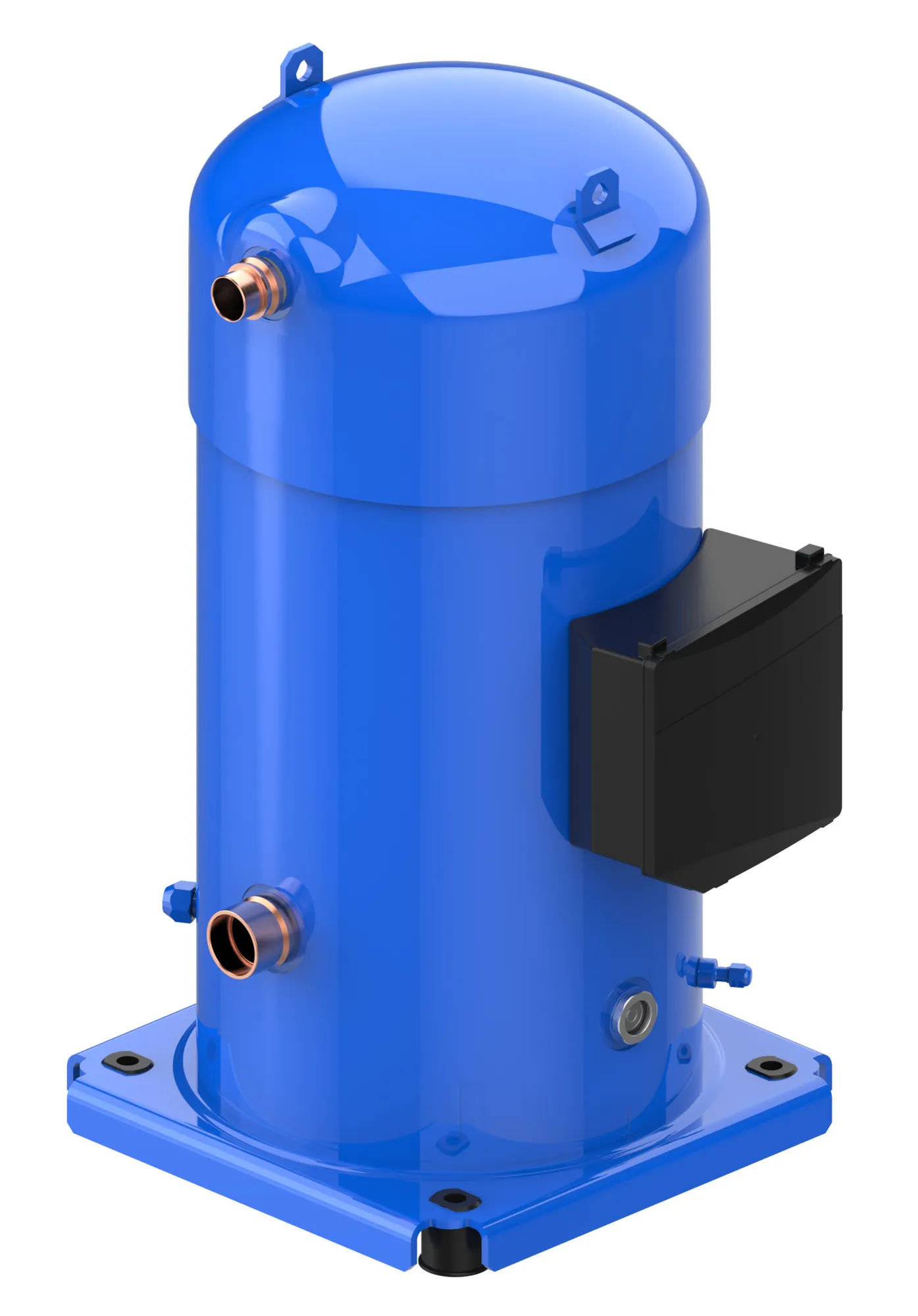

Extended Description

SZ300A4CBI Danfoss: Refrigerants: R407C; R134a, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack
Gross weight
161 Kilogram
Net weight
157 Kilogram
Volume
0.24 Cubic meter
EAN
5702424660680
Approval
CE,UL,UKCA
Brand technique
Scroll compressor
Capacity control
Fixed speed
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Colour
Blue
Compressor power supply [V]
380-415/3/50 460/3/60
Configuration code
Single
Connection type
Brazed
Contain batteries
No
Description
SZ300-4
Diameter [mm]
344 mm
Discharge connection height [mm]
665 mm
Discharge connection pipe size [in]
1 1/8 in
Discharge connection size [in]
1 1/8 in
Drawing number
8556094b
Economizer
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I,6(a),6(a)-I,6(c),7(a),8(b)
Factory HP [bar]
33 bar
Factory LP [bar]
25 bar
Family
SZ
Fitting standard
ODF
Frequency [Hz]
50/60
Gauge port HP
None
Gauge port LP
Schrader
Glass mounting
Threaded
Glass torque [Nm]
50 N-m
GP LP torque [Nm]
15 N-m
High Side TS Max
150 =C2=B0C
High Side TS Min
-35 =C2=B0C
High Side Volume
5 L
High value of nominal voltage at 50Hz [V]
400 V
High value of nominal voltage at 60Hz [V]
460 V
High value of voltage range at 50Hz [V]
440 V
High value of voltage range at 60Hz [V]
506 V
IP protection class
IP54 (with cable gland)
Low Side TS Max
52 =C2=B0C
Low Side TS Min
-35 =C2=B0C
Low Side Volume
34.1 L
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
460 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
414 V
LRA
270 A
Max pressure (PS) - high side
31.8 bar
Max pressure (PS) - low side
20 bar
MCC
69 A
Model number
SZ300A4CBE
Motor protection
Electronic protection module, 110/240 V
Mounting torque [Nm]
40 N-m
Network power supply [V/Ph/Hz]
380-415/3/50 460/3/60
Number of starts per hour [Max]
12
Oil charge [L]
8 L
Oil drain
1/4'' flare
Oil drain torque [Nm]
35 N-m
Oil equalization
1/2'' flare
Oil equalization torque [Nm]
66 N-m
Oil reference
160SZ
Oil type
POE
Packaging height [mm]
780 mm
Packaging length [mm]
510 mm
Packaging weight [Kg]
161 kg
Packaging width [mm]
465 mm
Packing format
Single pack
Packing quantity
1
Phase
3
Power connections
Stud M5
Product group
Hermetic compressors
Product Name Description
Scroll compressor SZ
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]
20 kg
Refrigerants
R134a,R407C
Reverse rotation protection
Electronic module
RLA
49.3 A
Rotational speed at 50Hz [rpm]
2900 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
SCIP dossier no.
a92ec178-0979-4d30-af46-57b56ac94204
SCIP dossier product name
SY240-300/SZ240-300
Segment usage
Air conditioning
Shipped instructions
Installation instructions
Shipped module
Electronic protection module mounted in terminal box
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
196 mm
Suction connection material
-
Suction connection pipe size [in]
1 5/8 in
Suction connection size [in]
1 5/8 in
Swept volume [cm3]
437.5 cm=C2=B3
Technology
Scroll
Test dif [bar] [Max]
24 bar
Test HP [bar] [Max]
32 bar
Test LP [bar] [Max]
20 bar
Torque earth [Nm]
4 N-m
Torque power [Nm]
3 N-m
Total height [mm]
738 mm
Type
SZ300
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
19,21,24,12,13,18
UL evaluated
Yes
Viscosity [cP]
32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]
0.516 Ohm
8156019
Connector, Sight glass
7703383
Connector, Valve set
120Z0372
Crankcase heater, Surface sump heater
120Z0432
Connector, Rotolock adapter
8168028
Connector, Rotolock service valve
120Z0364
Connector, Rotolock adapter
7773122
Crankcase heater, Belt heater
7773123
Crankcase heater, Belt heater
120Z0373
Crankcase heater, Surface sump heater
8156129
Connector, Gasket
7750009
Electrical component, Discharge thermostat kit
120Z0458
Electrical component, Terminal box
8156132
Connector, Gasket
120Z0774
Electrical component, T block
8156144
Mounting, Compressor kit
8153006
Connector, Solder sleeve
8156133
Connector, Gasket
8153004
Connector, Solder sleeve
8156013
Connector, Gasket
7765028
Connector, Solder sleeve adapter set
Danfoss scroll compressors - In parallel installation SM/SY/SZ Danfoss scroll compressors SM SY SZ Brochure Compressors for A/C bringing Savings now and for a lifetime Spare parts and accessories Danfoss Commercial Compressors for hermetic reciprocating and scroll compressors (AC/HP & REF) Brazing for large and medium compressor connectors Instructions Danfoss scroll compressors DSH / SM / SY / SZ / SH / WSH Safety data sheet, Polyolester oil 160SZ - English - July 2024 Danfoss EU 8555013 AJ Danfoss EU-UK 8555012 AK Scroll Compressors Danfoss MD 8555014 AD Danfoss MD 8555016 AD Danfoss MD 8555030 AE Danfoss MD 8555032 AD Danfoss MD 8555038 AA UL SA6873 BV CE-0062-PED-D1-DAN 001-22-CHN Rev. A single brazed SY300 SZ300 - 8556094 2D pdf single brazed SY300 SZ300
