AH5969BK
Part Number: AH5969BK
Product Information
Extended Description

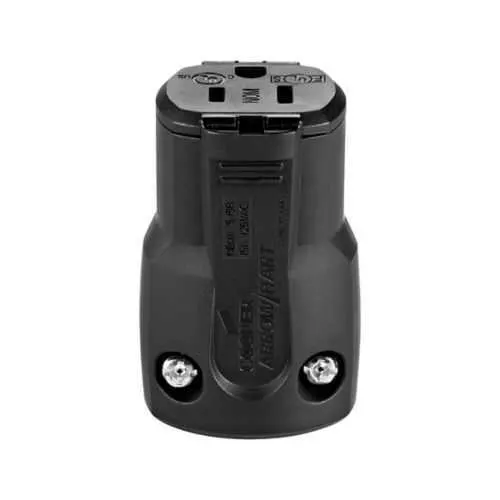

AH5969BK Eaton: Eaton Arrow Hart quick grip straight blade connector, #18-12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Screw, 0.22-0.66" in diameter, Nylon, Core pack
Product Name
Eaton Arrow Hart quick grip straight blade connector
Catalog Number
AH5969BK
UPC
032664722875
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
2.59 in
Product Weight
0.15 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Device type
Connector
Type
Connector
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15R
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
