BR612L125SDP

Part Number: BR612L125SDP
BR612L125SDP
Manufacturer
Eaton
Part number
BR612L125SDP
Category

Product Information

Extended Description

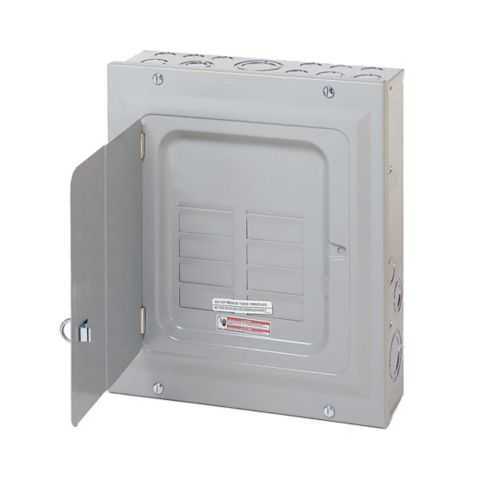

BR612L125SDP Eaton: Eaton Eaton BR main lug loadcenter, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Surface,NEMA 1,12 Circuits,Twenty-four pole,6 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BR612L125SDP
UPC
786676001304
Product Length/Depth
3.56 in
Product Height
13 in
Product Width
11 in
Product Weight
12 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Current design
Type
Main lug
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface
Number of circuits
12
Number of spaces
6
Phase
Single-phase
Voltage rating
120/240V
Wire size
#14-1 AWG Cu/Al
Box size
7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1 Eaton Specification Sheet - BR612L125SDP Eaton type BR circuit breaker limited warranty June 2024
