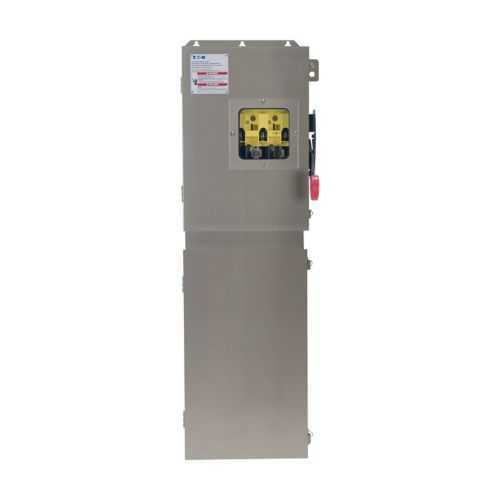

DD368NWKW-00V1
Part Number: DD368NWKW-00V1
Product Information
Extended Description
DD368NWKW-00V1 Eaton: Eaton Double door single-throw fused safety switch, Voltage indicator line side, 1200 A, NEMA 4X, 304 stainless steel, Class L, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 500, 500 hp (3PH @480/600 V), (4)#1/0-(4)750 kcmil
Product Name
Eaton double door single-throw fused safety switch
Catalog Number
DD368NWKW-00V1
UPC
786679184981
Product Length/Depth
27.18 in
Product Height
43.11 in
Product Width
91.02 in
Product Weight
575 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty double door safety switch
Amperage Rating
1200A
Fuse class provision
Class L
HP rating - max
500, 500 hp (3PH @480/600 V)
Voltage rating
600 V
Product Category
Watertight
Special features
V indicator line side, w/ window
