DH326NPK
Part Number: DH326NPK
Product Information
Extended Description

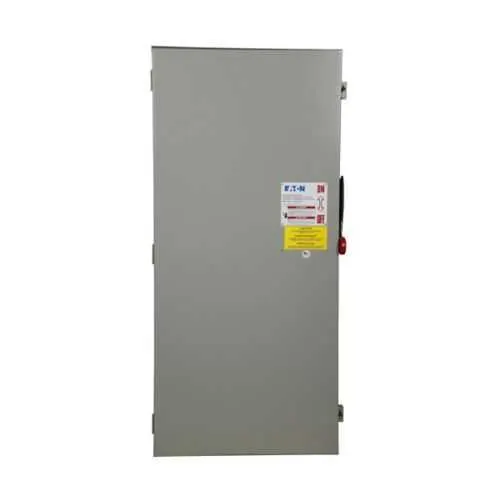

DH326NPK Eaton: Eaton Enhanced visible blade single-throw safety switch, 600 A, NEMA 4, Painted steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 75, 200 hp (3PH @Std, TD)), (1)#2-(1)600 kcmil and (1)#1/0-(1)750 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH326NPK
UPC
782114371213
Product Length/Depth
12.75 in
Product Height
63 in
Product Width
23 in
Product Weight
203 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 4
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
600A
HP rating - max
75, 200 hp (3PH @Std, TD))
NEMA rating
NEMA 4
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
