DLLA2CS-UNV1-S903-EM1-M2
Part Number: DLLA2CS-UNV1-S903-EM1-M2
Product Information
Extended Description

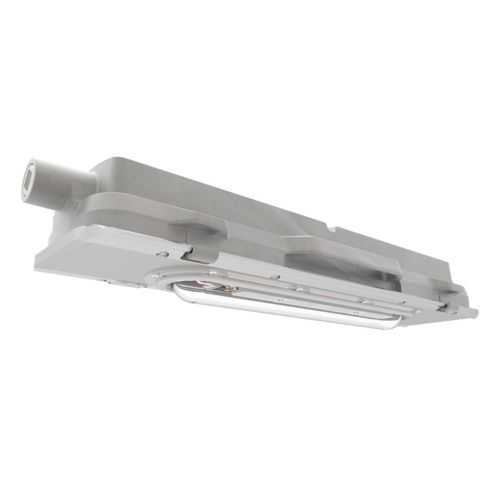

DLLA2CS-UNV1-S903-EM1-M2 Eaton: Eaton Crouse-Hinds series Pauluhn DLLA linear LED, Cool white, 3/4" entries, Natural alum finish, 2 ft, Polycarb lens, 4000 lm, 132 lm/W, Copper-free alum, Ceil/swivel mt, Wide, >0.92 PF, Integral emerg battery, 120-277 Vac, 127/250Vdc, 30W
Product Name
Eaton Crouse-Hinds series Pauluhn DLLA linear LED light fixture
Catalog Number
DLLA2CS-UNV1-S903-EM1-M2
UPC
786689716981
Product Length/Depth
24 in
Product Height
6.57 in
Product Width
7.13 in
Product Weight
19.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 2 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP67 IP66
Lamp type
LED
Color temperature
Cool white
Lamp length
2 ft
Lumens
4000
Lumens per watt
132
Optical distribution
Wide
Mounting Method
Ceiling/swivel
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
30W
Power factor
> 0.92
Special features
Integral emergency battery back-up
